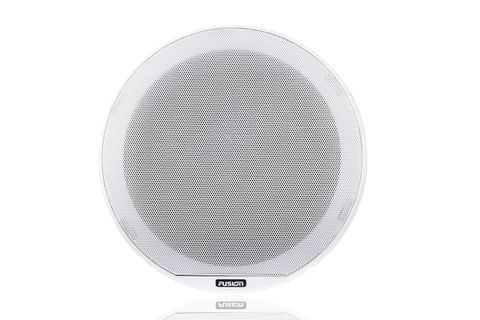

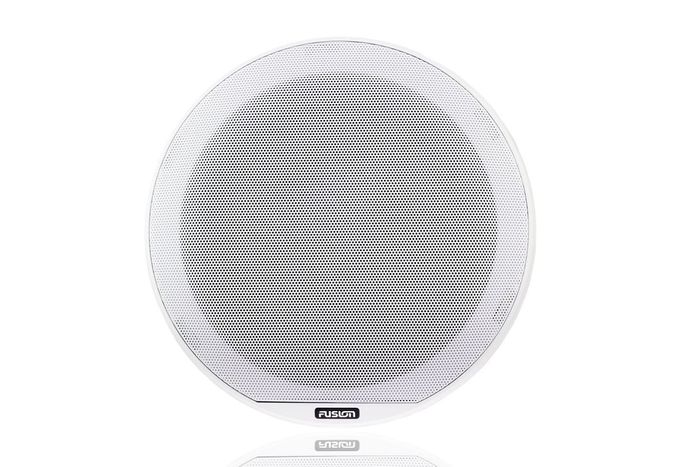

SG-S102W FUSION SIGNATURE SERIES 10" SUBWOOFER (WHITE)

Part No:
010-02435-00
POA

Overview

Signature Series 3 10" 600-Watt Classic White Marine Subwoofer

General

PHYSICAL DIMENSIONS (DIAMETER X DEPTH) 12" Sports: 14.02" x 10" (356 x 254 mm)
10" Classic: 10.83" x 6.38" (275 x 162 mm)
10" Sports: 10.83" x 6.77" (275 x 172 mm)
WATER AND DUST RATING IP65
SPEAKER SIZE 1,400 Watt Sports Chrome/White: 12"
600 Watt Classic and Sports Chrome/White: 10"
PEAK POWER (WATTS) 12": 1,400 W
10": 600 W
RMS POWER (WATTS) 12": 700 W
10": 300 W
SENSITIVITY (1 W / 1 M) 86 dB
MAGNETIC STRUCTURE 12": 113 oz
10": 68 oz
FREQUENCY RESPONSE 12": 20 Hz - 2 kHz
10": 30 Hz - 2 kHz
NOMINAL IMPEDANCE 4 ohms
RECOMMENDED AMPLIFIER POWER (RMS) 12": 200 - 1000 W
10": 50 - 600 W
LED LIGHTING Yes - CRGBW (sports-style only)
LED SUPPLY VOLTAGE 10.8-16 VDC (sports-style only)
LED LOAD CURRENT @ 14.4 VDC 300 mA (sports-style only)
OPERATING TEMPERATURE RANGE 32° to 122° F (0° to 50° C)
VOICE COIL DIAMETER 12": 4"
10": 2"
CONE MATERIAL Polypropylene cone with rubber surround
COMPASS-SAFE DISTANCE 12": 181" (460 cm)
10": 205" (520 cm)
WARRANTY 3 years

Mounting Dimensions

MOUNTING DIAMETER CLEARANCE 12": 12.05" (306 mm)
10": 8.78" (223 mm)
MOUNTING DEPTH CLEARANCE 12": 8.15" (207 mm)
10": 5.24" (133 mm)

Optimum Enclosure Recommendations

SEALED ENCLOSURE VOLUME1 12": 2.12 cubic ft (60 L)
10": 0.6 cubic ft (17.2 L)
PORTED (VENTED) ENCLOSURE VOLUME2 12": 8.83 cubic ft (250 L)
10": 1.6 cubic ft (45 L)
PORT DIAMETER 12": 4" (101.6 mm)
10": 4.1" (104 mm)
PORT LENGTH 12": 5" (127 mm)
10": 10.43" (265 mm)
