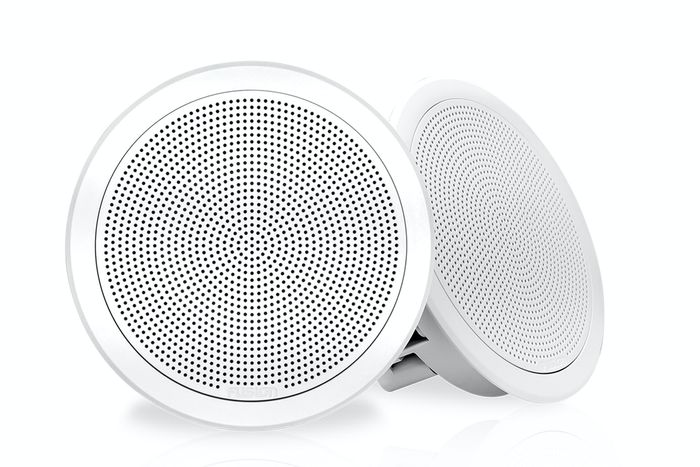

FM SERIES 7.7" 200W FLUSH MOUNT SPEAKERS (WHITE)

Part No:
010-02300-00
POA

Overview

Engineered for high-quality audio reproduction with innovative design aesthetics, Fusion's new FM Series flush mount marine speakers are designed to deliver enhanced acoustics to your vessel in a sleek and minimalistic form factor to meet the latest boat design trends.

Featuring an intelligent mounting system for non-intrusive, easy installation, the FM Series speakers are designed to be flush mounted with a mounting profile no thicker than 2.5mm [3/32"] for a premium, visually-appealing, near-flat finish.

With an IP65 weatherproof rating, True-Marine™ design and an industry-leading 3-year warranty, you can enjoy peace of mind that your FM Series speakers are built to last on board season after season.

CLEAR AUDIO, CLEAN AESTHETICS – ALL CLASS

  • The Fusion FM Series speakers are engineered to deliver quality acoustics to your boat and have a sleek and minimalistic aesthetic to match modern boat design trends.
  • Innovative flush-mount design for a sleek and minimalistic finish.
  • Low profile, near flat installation with a mounting profile of just 2.5 mm.
  • The aluminum dome tweeter provides smooth upper frequency response and increased efficiency.
  • With an increase in real power, the voice coil provides a high-quality audio experience.
  • The speakers are available in 6.5-inch and 7.7-inch designs with a round or square form factor.
  • Engineered to last season after season, the speakers include a 3-year warranty.

General


Physical dimensions 7.7" Round (Diameter x Depth): 7.13" x 3.26" (181 x 82.9 mm)
7.7" Square (WxHxD): 7.13" x 7.13" x 3.26" (181 x 181 x 82.9 mm)
6.5" Round (Diameter x Depth): 6.02" x 2.74" (153 x 69.6 mm)
6.5" Square (WxHxD): 6.02" x 6.02" x 2.74" (153 x 153 x 69.6 mm)
Water and dust rating IP65
Configuration Coaxial
Speaker size 7.7": FM-F77RW/FM-F77RB/FM-F77SW/FM-F77SB
6.5": FM-F65RW/FM-F65RB/FM-F65SW/FM-F65SB
Peak power (Watts) 7.7": 200 W
6.5": 120 W
RMS power (Watts) 7.7": 50 W
6.5": 30 W
Sensitivity (1 W / 1 m) 7.7": 91 dB
6.5": 87 dB
Frequency response 7.7": 80 Hz - 18 kHz
6.5": 100 Hz - 18 kHz
Nominal impedance 4 ohms
Recommended amplifier power (RMS) 7.7": 20 - 150 W/Ch
6.5": 15 - 80 W/Ch
Operating temperature range 32° to 122° F (0° to 50° C)
Voice coil diameter 7.7": 1.18"
6.5": 1"
Cone material 7.7": Polypropylene cone with cloth surround
6.5": Polypropylene cone with rubber surround
Tweeter type Aluminum dome
Compass-safe distance 7.7": 114.2" (290 cm)
6.5": 96.5" (245 cm)
Warranty 3 years

Mounting dimensions


Mounting diameter clearance 7.7" Round: 6.50" (165 mm)
7.7" Square: 6.50" x 6.50" (165 x 165 mm)
6.5" Round: 5.43" (138 mm)
6.5" Square: 5.43" x 5.43" (138 x 138 mm)
Mounting depth clearance 7.7": 3.27" (83 mm)
6.5": 2.76" (70 mm)

Optimum enclosure recommendations


Size 7.7": 0.28 cubic ft (8 L)
6.5": 0.14 cubic ft (4 L)
