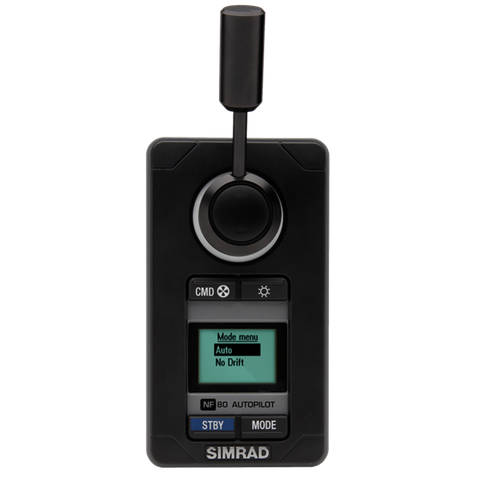

NF80

Part No:
000-10185-001
POA

Overview

Dedicated Autopilot Control

Our steering remotes offer intuitive controls and a 1.7-inch display that can be used to make course, heading, rudder angle, or autopilot mode changes from anywhere on board. Adding a remote to your system can provide dedicated steering controls for your fully integrated autopilot system, complementing the touchscreen controls on your multifunction display. Remotes can also enable autopilot control from multiple stations: perfect for fly-bridges and other dual-helm setups.

Your Simrad autopilot not only keeps you on course, but lets you hand-steer from any autopilot station on board. The NF80 offers Non Follow Up steering, which puts you in direct control of your boat’s rudder. Move the spring-loaded steering lever to port or starboard, and the rudder will begin to turn in the same direction. The rudder will continue to turn until the lever is released, then hold its current angle until a new angle is set.

This wired remote can be mounted almost anywhere. A simple design allows flush-mount installation using the included accessories, or external mounting to a desktop or bulkhead via an optional mounting kit. The remote connects to your Simrad autopilot system via a single NMEA 2000® cable into your existing network, offering plug-and-play installation with no complex wiring required.

Technical specifications

For updated technical specifications, compliance and certifications, refer to our websites.

Display

Display resolution 128 x 64 (H x W)
Display type 2” Monochrome, Bounded, Transflective
Viewing direction NF80: 12 o’clock
  FU80/QS80: 6 o’clock

Power

Power supply Via NMEA2000 CAN bus or SimNet
Current consumption Off Network <20 mA (NMEA 2000: LEN 1)
On with max illumination Network <110mA (NMEA 2000: LEN 3)

Interface

CAN/NMEA 2000 Factory connected drop cable with Micro-C connector. 6 m (19.7 ft)
SimNet Via optional SimNet to Micro-C adapter cable

Technical

Housing Front Aluminum with black plastic snapon bezel
Back Plastic cover
Temperature -25° C to + 55° C (-13° F to +131° F)
Weight NF80, FU80: 0.5 kg (1.10 lbs)
  QS80: 0.4 kg (0.88 lbs)

Environmental

Weather IEC 60945 sec. 8.8, exposed, front when desk mounted or bulkhead mounted with optional frame.
  Corresponds to IPX6
Compass safe distance 0.4 m (ref. IEC 60945 sec.11.2)
