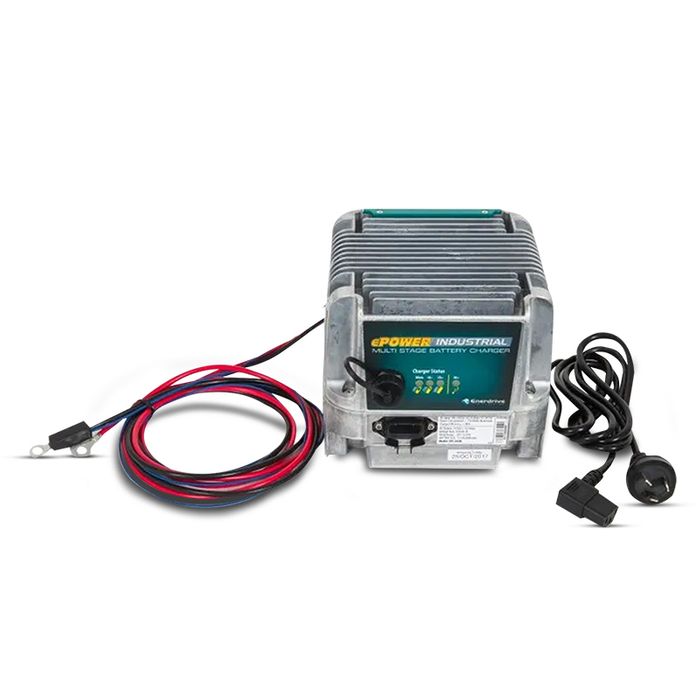

EPOWER INDUSTRIAL CHARGER 48V/35A
Overview
The ePOWER Industrial Battery Charger is built to withstand vibration and exposure to dust or moisture typically found when used in typical on-board or industrial applications. Charge Algorithm updates and downloadable charger data logs are easily accessible via the use of a USB memory stick.
Features:
Extremely Durable.
Programmable-Charging-USB Programmable Charging.
Battery Charging Flexibility.
Features
Enerdrive’s ePOWER Industrial Battery Charger is built to withstand vibration and exposure to dust or moisture typically found when used in typical on-board or industrial applications. Charge Algorithm updates and downloadable charger data logs are easily accessible via the use of a USB memory stick.
Extremely Durable
A fully sealed die cast aluminum enclosure protects the charger from fluids and other contaminants. The design of the charger enclosure mirrors the internal components, protecting against shock and vibration. (IP67 if using AC input seal).
Programmable Charging
A USB host port allows for charger data logging downloads and charge algorithm uploads using a commonly available USB flash drive. This information can be used by OEMs to improve products, limit battery warranty claims and help technicians with troubleshooting issues.
Battery Charging Flexibility.
Specifications
ePOWER Industrial Charger
Model | EPI-2430 | EPI-3620 | EPI-4815 | EPI-4835 | EPI-4860 |
---|---|---|---|---|---|
DC Output | |||||
Nominal Voltage (V) | 24V | 36V | 48V | 48V | 48V |
Maximum Voltage (V) | 34V | 51V | 68V | 68V | 68V |
Maximum Current (A) | 30A | 20A | 15A | 35A | 60A |
Applicable to battery | AGM, Flooded, GEL, Lithium & Custom Profiles | ||||
Reverse Polarity | Electronic Protection Auto Reset | ||||
Short Circuit | Electronic Protection Auto Reset | ||||
AC Input | |||||
Voltage Range (V) | 100-240V | ||||
Frequency (Hz) | 45-60Hz | ||||
Maximum Current (A) | MAX Power 850W 8.5A @100V 4.25A @230V |
MAX Power 1985W 19.5A @100V 8.63A @230V |
MAX Power 3400W 34A @100V 14.78A @230V |
||
Full Load AC Power Factor | >0.98 | ||||
Other Specifications | |||||
Dimensions | 20.7 x 18.0 x 16.0 cm | 19.5 x 18.0 x 19.5 cm | 35.9 x 28.0 x 10.7 cm | ||
Weight | 4.6kg | 5.2kg | 10kg | ||
Operating Temperature | -30°C ~ +50°C | ||||
Storage Temperature | -40°C ~ +70°C |
Note: Specifications subject to change without notice.
