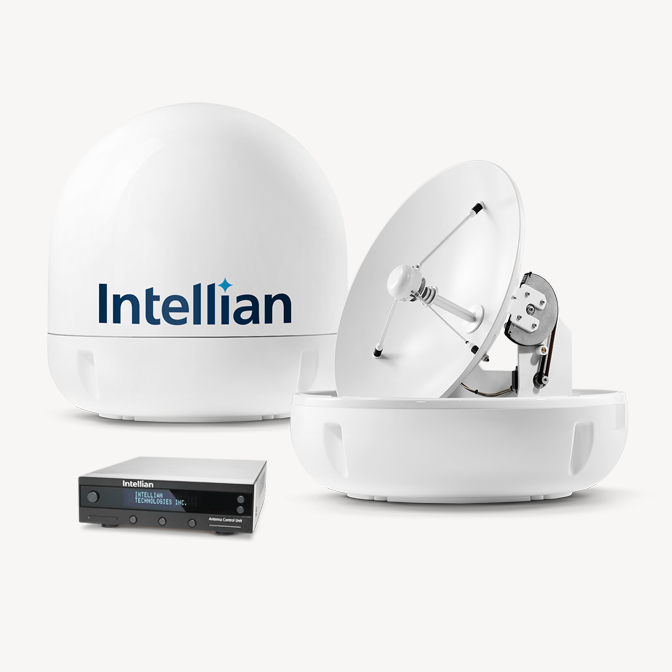

INTELLIAN i6W, 2-AXIS GLOBAL SYSTEM

Part No:
B4-619W2
POA

Overview

60cm (24 inch) Reflector Ku-band Satellite TV System.

The Intellian i6 is ideal for larger yachts or commercial vessels traveling across different global regions. With its highly accurate satellite tracking capability, the i6 outperforms in all conditions. When equipped with Intellian’s proprietary WorldView LNB, the i6 can operate in any global coverage area without manual intervention.

WorldView Capable

The available i6W is equipped with Intellian's patented WorldView LNB, which allows for complete global operation without needing to adjust the antenna or change LNB.

Works with All Providers

Compatible with leading Ku-band satellite TV service providers around the world.

Automatic Skew Control

The available i6P version is equipped with Automatic Skew Control, which allows for better satellite tracking on vessels operating over greater distances in regions with linear transmissions such us Europe and South America.

Multiple Receiver Capability

Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module).

High Performance Antenna

  • 60 cm (24 in) diameter parabolic antenna for receiving Ku-Band satellite signals
  • Circular or linear polarization depending on region and LNB selected
  • Built-in HD module for Ku-band HD TV reception

iQ²: Quick&Quiet℠ Technology

  • iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
  • The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
  • Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas

Radome Dimension

70 cm x 72 cm (27.5" x 28.3")

Reflector Diameter

60cm (23.6")

Antenna Weight

20 kg (44 lbs)

Min EIRP

46 dBW

Elevation Range

+5˚ to +90˚

Polorization

Linear or Circular i6W: Linear and Circular

Auto Skew

i6P, i6W, i6PE

WorldView Capable

i6W
