MARINE AMPLIFIER - 400W (BRIDGEABLE)

Part No:
010-01499-00
POA

Overview

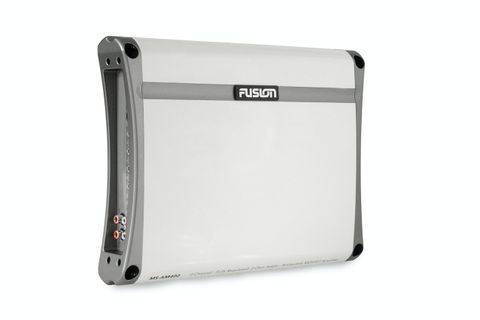

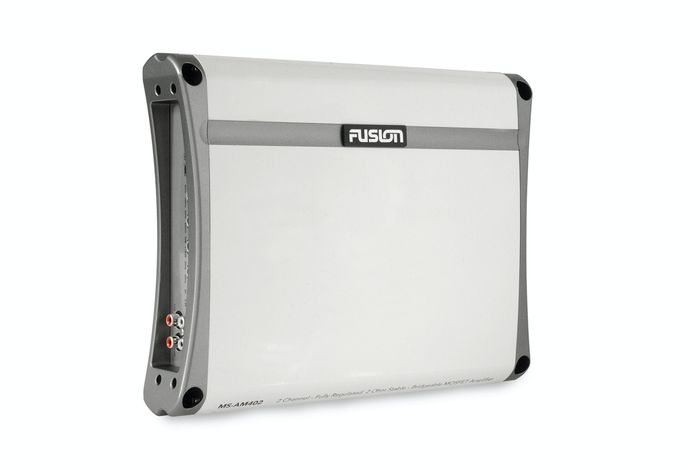

The FUSION AM Series marine amplifiers are purpose-built for the marine environment. Boasting some of the most impressive environmental protection available, they deliver performance on the water like never before.

With 2 channels and a 400 Watt peak power output, the MS-AM402 will drive up to two subwoofers, an extra pair of speakers, or even 4 speakers (2 speakers in parallel each channel at 2 Ohms) to spread the sound around your vessel.

Incorporating heat-tempered and conformal coated PCBs for maximum product life, and gold-plated connectors for improved signal flow, the MS-AM402 reproduces clean and powerful audio with enough power to rock the boat.

QUALITY AUDIO AMPLIFICATION

  • Purpose-built for the marine environment, the AM Series marine amplifiers are designed to enhance your on-water listening experience with quality audio amplification.
  • Class-AB amplifier design delivers efficiency with reduced distortion.
  • Connect up to two speakers per channel at 2 ohms, or bridge two channels at 4 ohms for increased power.
  • Conformal coated PCBs provide extra protection from the marine elements.
  • Heat sink provides greater dissipation of heat for enhanced component reliability.
  • The amplifiers are available in 2-channel and 4-channel configurations.

Overview


Physical dimensions (Length x Width x Height) 2 Channel: 11.65″ x 9.02″ x 2.09″ (296 x 229 x 53 mm)
  4 Channel: 14.41″ x 9.02″ x 2.09″ (366 x 229 x 53 mm)
Amplifier class Class-AB
Peak power (Watts) 2 Channel: 400 W
/td> 4 Channel: 500 W
Total rated power output - 4 Ohm (Watts) 2 Channel: 65 W RMS x 2 @ 14.4 V input - 4 Ohm < 1% THD
  4 Channel: 65 W RMS x 4 @ 14.4 V input - 4 Ohm < 1% THD
Total rated power output - 2 Ohm (Watts) 2 Channel: 100 W RMS x 2 @ 14.4 V input - 2 Ohm < 1% THD
  4 Channel: 100 W RMS x 4 @ 14.4 V input - 2 Ohm < 1% THD
Total rated power output - 4 Ohm Bridged (Watts) 2 Channel: 200 W RMS x 1 @ 14.4 V input - 4 Ohm Bridged < 1% THD
  4 Channel: 200 W RMS x 2 @ 14.4 V input - 4 Ohm Bridged < 1% THD
Frequency response 5 Hz - 38 kHz (-3dB, dB @ 4 Ohm rated power)
Input sensitivity 0.3 V - 8 V RMS, user adjustable
Input impedance 5k Ohm nominal
High-pass/low-pass full range filter Yes (user selectable)
HP variable crossover frequency 40 Hz - 600 Hz
LP variable crossover frequency 40 Hz - 160 Hz
Warranty 1 year
