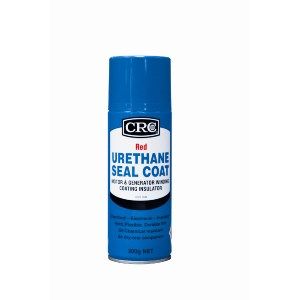

RED URETHANE SEAL COATS 300GM

Part No:
2044
POA

Overview

CRC Red Urethane Seal Coat provides a stable single component polyurethane coating for electrical and electronic applications. It dries fast, adheres well and forms a hard, durable, flexible and non conductive film for electrical motor windings and armature coils.

Due to chemical cross linking reactions occurring after the drying stage, CRC Red Urethane Seal Coat seals out water and moisture and is resistant to shock, abrasion, salt air and aggressive chemical atmospheres.

A special iron oxide pigmentation system yields additional film resistance without sacrificing electrical values.

The red coloration allows for easy visualisation and proof of application build.

There is no mixing, no clean up, no excessive waste. It is easy to apply and saves time and labour.

Features & Benefits:

Ready to use – No additional mixing or chemical additives required. No clean up
High di-electric strength – Ideal for electrical/electronics applications
Environmental and mechanical protection – To significantly extend product life
Wide Temperature Range – Up to 100°C
Fast drying – 15-30 minutes to handle, full cure in 72 hours
Aerosol – Easy application, no clean up required
Corrosion Resistance – Up to 2 years outdoors

Uses:

Insulating coating – Electric motor windings, armature coils, commutator ends, stator coils, terminals, housings, transformer ends, bus bars, solenoids, cables and wires, printed circuit boards
Coating for components exposed to atmospheric effects – Terminal strips, screw connections, switch boxes
Protecting components from condensation and moisture
