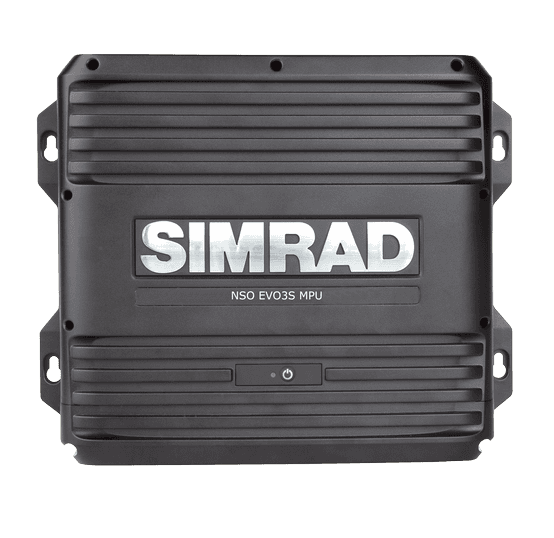

SIMRAD NSO EVO3S MPU & WORLDWIDE BASEMAP
Overview
NSO evo3S MPU - Create truly customised multi-display systems, the ideal solution aboard professional vessels and powerboats 10 metres (33 feet) and larger. It can drive two independent displays, supporting both touch and non-touch monitors. Expand and integrate to build your preferred system including navigation, radar, sonar, autopilot, and more. Includes World Basemap.
NSO evo3S Processor - Create truly customised multi-display systems with the NSO evo3S Processor – the ideal solution aboard powerboats 10 metres (33 feet) and larger.
This marine processor can drive two independent displays, supporting both touchscreen and non-touch monitors. Expand and integrate to build your preferred system including navigation, radar, sonar, autopilot, and more.
Key Features
- Dual video outputs to run two independent displays
- Choose from touchscreen or keypad monitors in a variety of sizes
- Two six-core processors for ultra-smooth response
- Easily manage custom screen layouts across multiple displays
- Add optional keypad controls or connect a USB mouse, trackball, or keyboard
- Compact, lightweight, and modular design for ease of installation
Customize and build your preferred system
Build a tailored, multi-display system that is perfect for you and your boat with the modular NSO evo3S system. The NSO evo3S marine processor is a compact ‘black box’ solution containing two six-core processors and the connectivity options needed to integrate and expand your system vessel-wide. Customize it the way you want: add two touchscreen or keypad monitors in your choice of size, with each functioning as a separate multifunction display; connect with a wide range of Simrad and third party accessories from charting, radar and sonar, to autopilot and on-board entertainment, for complete system control from every networked display on board.
Dual monitor support - enabling two independent stations
An NSO evo3S Processor works as the brain of your boat: a compact marine computer that is able to drive two independent touchscreen or keypad monitors (sold separately). Each monitor works as a full-featured multifunction display providing access to charts, radar, sonar, and more. Add two displays side-by-side at a single station, or create two separate stations for individual crew members to use simultaneously. Network additional NSO evo3S processors to add extra displays, perfect for dual-helm vessels.
Modular design for simple and cost effective installation
NSO evo3S offers a flexible and cost effective way to create a multi-display system for your boat, with just one ‘black box’ processor powering two separate displays. A modular design simplifies wiring and avoids the need to carry extra hardware, such as GPS receivers or sounder modules, for every display on board. Accessories can be added as required – simply connect to your NSO evo3S below deck without the need to be networked with each individual display at the helm.
Touchscreen or keypad for complete control
Command NSO evo3S with Simrad MO-series touchscreen monitors, or an optional OP50 keypad and rotary dial. Switch seamlessly between the convenience of a touchscreen and the all-weather reliability of a classic keypad. Add a standard USB mouse, trackball, or keyboard to simplify tasks such as route planning, ideal for NSO evo3S displays installed in a pilothouse or cabin.
Six-Core processors for supreme performance
NSO evo3S features two six-core processors delivering category leading response times across connected displays. Navigate easily with fast chart redraws, switch quickly between different displays or instruments, and experience seamless performance in demanding applications such as the optional StructureScan® 3D imaging system.
Industry-standard vessel-wide connectivity
NSO evo3S systems offer vessel-wide integration, with Ethernet and industry-standard NMEA 2000® connectivity with an extensive selection of Simrad and third party accessories. Find fish with a wide range of sonar and transducer options, gain greater situational awareness with a Simrad radar, free your hands from the wheel with autopilot, or cruise to your own soundtrack with the SonicHub®2 marine audio system, JL Audio, Fusion and more.
Simrad MO series monitors - designed with the marine environment in mind
Our MO series marine monitors are the perfect complement to your NSO evoS3 display system. These IPX6 water-resistant displays are available in a range of sizes, with the choice of either touchscreen or keypad versions. Our touchscreen monitors are perfect for outdoor use, featuring extra bright sunlight-viewable screens, while our non-touch monitors are great for enclosed pilothouses or cabins.
Electrical
| Supply voltage | 9 - 31.2 V DC |
| Power consumption | Max 45 W |
| Power consumption | OFF 1 W |
| Recommended fuse rating | 3 Amp |
| Low power standby mode | Yes |
| Protection | Reverse polarity and temporary over-voltage to 36 V |
| Alarm output current | 1 Amp |
| Processors | iMX8 Quad Max (x2) |
Environmental
| Operating temperature range | -15°C to +55°C (5°F to 131°F) |
| Storage temperature | -20°C to +60°C (4°F to 140°F) |
| Waterproof rating | IPX2 |
Interface/Connectivity
| Ethernet | 3 ports |
| USB | 2 ports (USB-A) |
| NMEA 2000 | 1 port (Micro-C male, 1 LEN) |
| NMEA 0183 | 2 ports. Baud rate: 4800, 9600, 19200, & 38400 (via proprietary cable) |
| RS422 | 2 ports. Baud rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Video input | 2 ports (BNC female. NTCS or PAL format) |
| HDMI output | 2 ports (type A, 60 Hz nominal) • 800x600 (SVGA 4:3) • 1024x768 (XGA 4:3) • 1280x720 (HD 16:9) • 1366x768 (WXGA) • 1920x1080 (Full HD 16:9) • 1920x1200 (WUXGA 16:10) • 1280x800 (16:10) • 1280x1024 (SXGA 5:4) |
| Data card reader | 1 card slot (32 GB, SD card socket) |
| Physical Material | ABS plastic |
| Weight | 1.0 kg (2.2 lbs) |
| Compass Safe Distance | 50 cm (20") |
