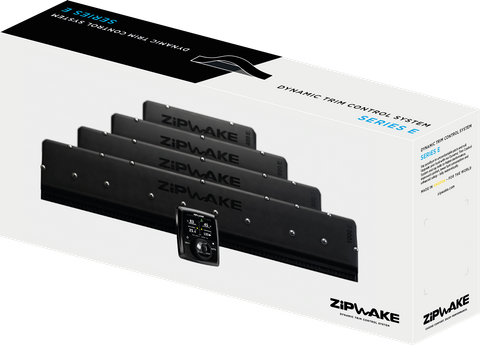

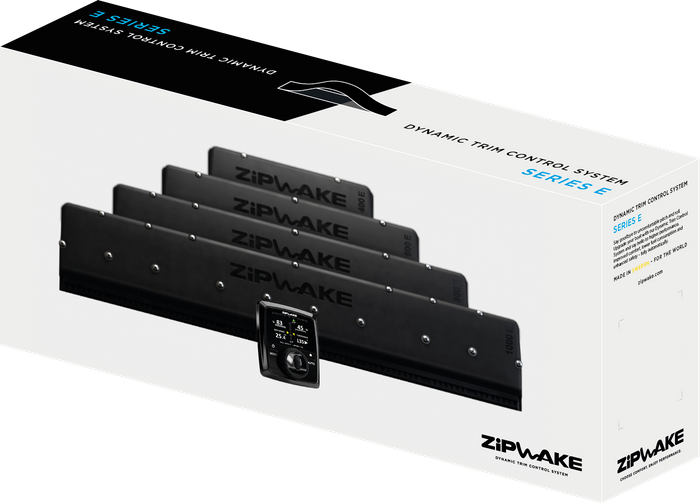

ZIPWAKE E SERIES, 600MM KIT INCL DISPLAY

Part No:
2012011
POA

Overview

The Dynamic Trim Control System Series E is an evolved version of the successful Series S that incorporates a state-of-the-art family of large durable, fast-acting Interceptors perfectly engineered for bigger boats, from 15 to 30 m (50-100 ft). Unique 3D controls with a large display provide the helmsman with unmatched, user-friendly, intuitive and precise control of running trim, heel or heading. The system is fully automatic and significantly enhances the boat’s performance, fuel economy, comfort and safety.


Includes:

(2) Interceptors. Width: 600mm
(1) 3M Cable & Cable Covers
(1) Distribution Unit with 6m power cable
(1) Control Panel with 15m standard cable
(1) Extension cable



  • Fully automatic
    - Dynamic pitch and roll control
    - Steering and turn enhancement
    • Built-in GPS and motion sensors
    • Unique and intuitive 3D controls
    • Sunlight readable color display
    • Instant state user feedback
    • Auto power on/off via ignition key sense
    • Full range of electrical interfaces
    • Waterproof
    • Auto dimming / night mode
    • Upgradable via USB stick
    • Up to four control panels in the system
    • Surface, flush or gimbal bracket mount
    • Manages installation configurations from
    1 to 6 Series E dual-servo interceptors or any
    mix with Series S interceptors
    • Allows configuration of interceptor pair
    function
    • Auto Cleaning
    - Selectable periodic cleaning cycle
    - Prevents fouling inside the interceptor
    • Monitored and/or controlled from external
    devices, e.g. multifunction displays or
    plotters via its NMEA 2000 interface.

SPECIFICATIONS

Model KB600-E
Width mm (in) 752 (29.6)
Depth 192 (7.6)
Height 452 (17.8)
Weight kg (lbs) 21.7 (47.8)
