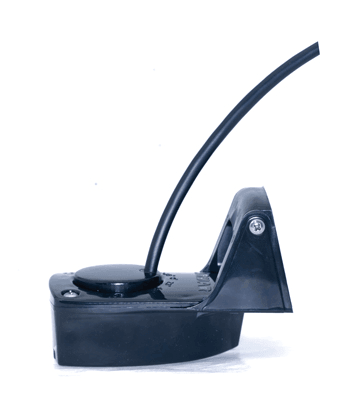

XSONIC AIRMAR TM150M

Part No:
000-13944-001
POA

Overview

The TM150M delivers a great combination of shallow and deep-water performance. Operating at a frequency range of 95 to 155 kHz, this transducer reveals fish in shallow waters and deeper depths down to 183 m (600') with ultra-clear target resolution.

The TM150M is an excellent choice for freshwater and saltwater boats up to 8 m (25').

Features:

Depth and fast-response water-temperature sensor.
300 W with depth performance to 183 m (600').
Medium frequency: 95 to 155 kHz.
26° to 17° beamwidth put more energy on targets for great target separation.
60 kHz of total bandwidth from one transducer ideal for inshore or coastal fishing.
Narrow beam angles are perfect for detecting fish holding close to structures and suspended fish.
Ideal for freshwater, inshore or coastal fishing in shallow to medium depths.
Plastic release bracket protects housing from frontal impact.
Recommended for outboard and I/O powered boats.
Recommended for planing hulls.

The TM150M delivers a great combination of shallow and deep-water performance. Operating at a frequency range of 95 to 155 kHz, this transducer reveals fish in shallow waters and deeper depths down to 183 m (600') with ultra-clear target resolution.

The TM150M is an excellent choice for freshwater and saltwater boats up to 8 m (25').

Features

  • Depth and fast-response water-temperature sensor
  • 300 W with depth performance to 183 m (600')
  • Medium frequency: 95 to 155 kHz
  • 26° to 17° beamwidth put more energy on targets for great target separation
  • 60 kHz of total bandwidth from one transducer ideal for inshore or coastal fishing
  • Narrow beam angles are perfect for detecting fish holding close to structures and suspended fish
  • Ideal for freshwater, inshore or coastal fishing in shallow to medium depths
  • Plastic release bracket protects housing from frontal impact
  • Recommended for outboard and I/O powered boats
  • Recommended for planing hulls

Specifications

Weight: 0.45 kg (1.1 lb.)
Recommended Boat Length Up to 8 m (25')
Transom Angle 3° to 20°
Acoustic Window Urethane
Includes Plastic transom bracket and mounting hardware
Transducer Element One internal broadband ceramic assembly
