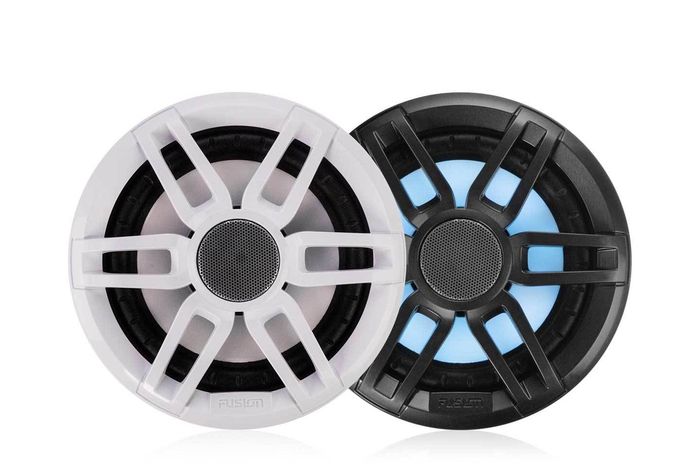

XS-FL65SPGW FUSION 6.5" SPEAKER W/LED SPORTS GREY & WHITE
Overview
Continuing to set the benchmark for marine audio entertainment, the Fusion XS Series speakers feature trademark quality audio reproduction, enhanced marine aesthetics and LED illumination – at a mid-range price point. Optimized for use in the marine environment, and built for performance, these stylish speakers are designed to produce consistently high quality audio at all volume levels, season after season.
Set the tone, complement your music or get the party started on board with LED illumination in a wide range of colors available. The innovative translucent cone on the Sports style speakers with RGB produce bright, even LED illumination in any color you choose, which can be controlled with the MS-RGBRC wireless remote (sold separately).
With an IP65 weatherproof rating, True-Marine™ design and an industry-leading 3-year warranty, you can enjoy peace of mind that your XS Series speakers are built to last on your boat.
EXPERIENCE SOUND AND COLOUR
- Enjoy high-performance acoustics, enhanced protection from the environment and multi-colour RGB LED lighting all at a mid-range price point with the XS Series speakers from Fusion.
- Experience multi-colour RGB LED lighting1 to brighten up your boating experience.
- The injection-moulded polypropylene cone provides clean, clear audio reproduction.
- The aluminium dome tweeter provides a smooth upper frequency response and increased efficiency.
- With an increase in real power, the voice coil provides a high-quality sound experience.
- The speakers are available in 4, 6.5 and 7.7″ designs with both classic- and sports-style2 grilles.
- Engineered to last season after season, the speakers include a 3-year warranty.
General |
|
| Physical dimensions (Diameter x Depth) | 7.7" Classic: 7.72" x 3.70" (196 x 94 mm) 7.7" Sports: 7.72" x 3.82" (196 x 97 mm) 6.5" Classic: 6.97" x 3.19" (177 x 81 mm) 6.5" Sports: 6.97" x 3.27" (177 x 83 mm) 4" Classic: 5.31" x 2.68" (135 x 68 mm) |
| Water and dust rating | IP65 |
| Configuration | Coaxial |
| Speaker size | XS-F77CWB / XS-FL77SPGW: 7.7" XS-F65CWB / XS-FL65SPGW: 6.5" XS-F40CWB: 4" |
| Peak power (Watts) | 7.7" Speaker: 240 W 6.5" Speaker: 200 W 4" Speaker: 120 W |
| RMS power (Watts) | 7.7" Speaker: 60 W 6.5" Speaker: 50 W 4" Speaker: 30 W |
| Sensitivity (1 W / 1 m) | 7.7" Speaker: 92 dB 6.5" Speaker: 91 dB 4" Speaker: 87 dB |
| Frequency response | 7.7" Speaker: 70 Hz-18 kHz 6.5" Speaker: 80 Hz-18 kHz 4" Speaker: 100 Hz-18 kHz |
| Nominal impedance | 4 ohms |
| Recommended amplifier power (RMS) | 7.7" Speaker: 25-200 W/Ch 6.5" Speaker: 20-150 W/Ch 4" Speaker: 15-80 W/Ch |
| LED lighting | Yes (RGB; sports-style only) |
| LED supply voltage | 10.8-16 VDC (sports-style only) |
| LED load current @ 14.4 VDC | 150 mA (sports-style only) |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 7.7": 1.18" 6.5": 1.18" 4": 1" |
| Operating temperature range | 7.7" / 6.5": Polypropylene cone with cloth surround 4": Polypropylene cone with rubber surround |
| Tweeter type | Aluminum dome |
| Compass-safe distance | 7.7": 157.5" (400 cm) 6.5": 122" (310 cm) 4": 100.5" (255 cm) |
| Warranty | 3 years |
Mounting dimensions |
|
| Mounting diameter clearance | 7.7": 6.38" (162 mm) 6.5": 5.31" (135 mm) 4": 3.90" (99 mm) |
| Mounting depth clearance | 7.7": 3.03" (77 mm) 6.5": 2.64" (67 mm) 4": 2.13" (54 mm) |
Optimum enclosure recommendations |
|
| Sealed enclosure volume1 | 7.7": 0.35 cubic ft (10 L) 6.5": 0.28 cubic ft (8 L) 4": 0.14 cubic ft (4 L) |
