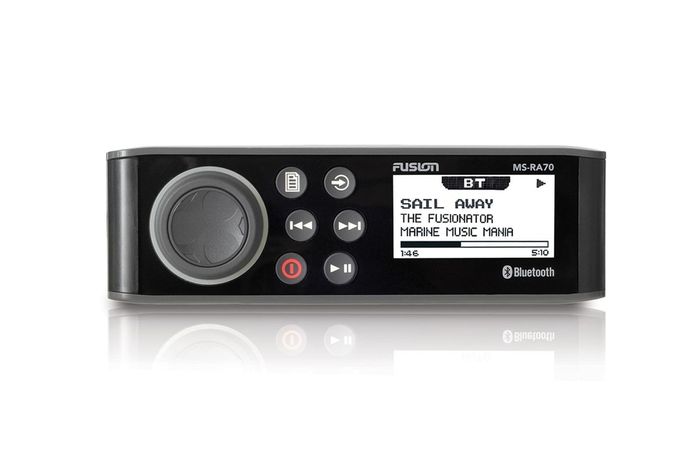

FUSION MARINE RECEIVER/MEDIA PLAYER (MS-RA70)

Part No:
010-01516-01
POA

Overview

Introducing the MS-RA70, Fusion's sleekest value-packed marine stereo, designed to deliver a quality on-water entertainment experience by incorporating some of the latest marine technologies. The MS-RA70 is engineered to seamlessly replace any standard DIN sized non-marinized stereo without the need to reconfigure dash space. Clever styling gives the installer the option of either mounting the stereo with a conventional flush finish or integrating it flat into a glass helm, ensuring a high-end finish to the installation.

INDUSTRY BENCHMARK FOR MARINE ENTERTAINMENT

  • Seamlessly retrofit your existing DIN-sized stereo with a value-packed RA70 Series marine stereo from Fusion®. The RA70 Series includes three marine stereos — MS-RA70, MS-RA70N and MS-RA70NSX.
  • Seamlessly retrofit your existing DIN-sized cutout without needing to reconfigure dash space.
  • Optically bonded monochrome LCD improves screen visibility.
  • Built-in Class-AB amplifier delivers efficiency with reduced distortion.
  • Multi-Zone™ Technology gives you control of two separate audio zones.
  • Control your music from a compatible multifunction display (MFD)1, smart device or Garmin watch.

General


Physical dimensions (HxWxD) 60 x 188 x 123.5 mm
Weight 556 g
Water rating IPX7 (front panel only, when properly installed)
Power input 10.8-16 VDC
Operating temperature range 0° to 50° C
Current (max) 15 A
NMEA 2000 LEN 1 (50 mA)
Bluetooth wireless range 10 metres
ANT wireless range 3 metres
Wireless frequencies/protocols Bluetooth 2.4 GHz @ +1.9 dBm nominal
ANT 2.4 GHz @ +1.9 dBm nominal
Compass-safe distance 150 mm

Stereo features


Display 128 x 64 optically bonded monochrome LCD
Built-in amplifier Class-AB
Peak power 200 W
Rated power output (4 Ohm) 26 W rms x 4 @ 14.4 V input < 10% THD
Fusion-Link™ control MS-RA70: Yes (smartphone and Garmin watch)
MS-RA70N: Yes (MFD, smartphone and Garmin watch)
Multi-Zone™ technology 2 zones
Bluetooth wireless technology Yes
ANT wireless technology Yes
DAB+ ready MS-RA70 and MS-RA70N only; (requires DAB100A antenna module)
NRX remote compatibility MS-RA70N only
Multi-language interface Dutch / English / French / German / Italian / Spanish
Fits DIN-sized cutout Yes
Software updates USB
Warranty 1 year

Sources


Sources AM / FM / Bluetooth / USB audio / iPhone / iPod / AUX x1 / AOA
MS-RA70 and MS-RA70N only: DAB+ ready (available in Europe and Australia only)

Connectivity


Auxiliary input One RCA input (AUX)
NMEA 2000 MS-RA70N : 1 port
USB 2.0 One USB 2.0 port
AM/FM radio One Motorola antenna connector port
Speaker 2 x speaker connections (2 zone amplified)
RCA Pre-out (left, right and subwoofer) 2 zones (requires external amplification)
Line out 2 (1 x L + R per zone, requires external amplification)
Subwoofer out 1 x mono output (requires external amplification)
