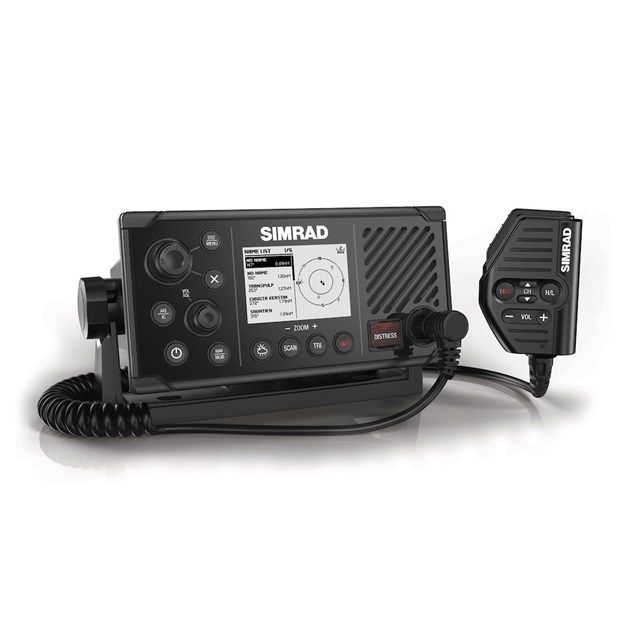

SIMRAD RS40-B VHF WITH AIS

Part No:
000-14818-001
POA

Overview

Stay safer on the water with this VHF marine radio featuring a Class B AIS transceiver, and built-in GPS. See and be seen by nearby AIS-equipped vessels thanks to an integrated Class B AIS transceiver, and add up to two optional wireless handsets to stay connected from anywhere on board. Bundled with GPS-500 for enhanced GPS performance.

Simrad RS40-B Marine VHF Radio - Stay safer on the water with this VHF Marine Radio. See and be seen by nearby AIS-equipped vessels thanks the integrated Class B AIS transceiver, and add up to two optional wireless handsets. Includes with GPS500 GPS antenna.



Stay safer on the water with this VHF marine radio featuring a Class B AIS transceiver and built-in GPS.

See and be seen by nearby AIS-equipped vessels thanks to an integrated Class B AIS transceiver, and add up to two optional wireless handsets to stay connected from anywhere on board. Comes with GPS500 GPS Antenna for systems where the internal GPS does not get reception.

Key Features

  • Integrated Class B AIS transceiver
  • Class D DSC approved VHF radio
  • Integrated GPS receiver
  • Removable fist mic supports front or rear connection
  • Connect up to two wireless handsets
  • Add an optional loudhailer or external speaker
  • NMEA 0183® and NMEA 2000® connectivity

See and Be Seen with Integrated AIS

The RS40-B includes a Class B AIS transceiver, which not only receives AIS targets but also transmits your boat's position to nearby AIS-equipped vessels. This helps other mariners to spot your boat through any conditions, day or night. A built-in AIS receiver monitors the position of other AIS-equipped vessels, helping you to proactively avoid collisions in crowded harbours and waterways. AIS information can be viewed on the radio’s built-in screen, or overlaid on your chart or radar screen through a compatible multifunction display.

Removable Fist Mic

The RS40-B's removable fist mic can be connected to the front or rear of the radio, and optional extension cables allow the mic and radio to be mounted separately. This offers a simple and cost-effective solution for any mounting location, with no cable clutter. For example, the RS40-B can be mounted overhead, with no hanging cables, while the mic is connected to an extension socket on the dash below.

Expandable with Wireless Handsets

Add an optional HS40 wireless handset to take your radio anywhere on board. Each handset duplicates your radio's display and controls, enabling remote access to all key functions. Up to two handsets can be connected to a single RS40-B, and with multiple handsets connected your radio doubles as an on-board intercom.

***Minimum product requirements***

Radio functionality requires a VHF antenna (sold separately). AIS functionality requires either a second VHF antenna or a VHF/AIS antenna splitter. All DSC functions require an MMSI number issued by local authorities; charges may apply.

GENERAL

Frequency Range: Transmit 156.025～157.425 MHz
Frequency Range: Receive 156.050～163.275 MHz
Number Of Channels INT / US / CAN / EU
Oscillate Mode PLL
Modulation FM(16KOG3E) DSC(16K0G2B)
Channel Spacing 25 KHz
Frequency Stability ±5 PPM
Temperature range -15～+55 °C
Normal Working Voltage +13.6 DC V DC
Minimum operating Voltage ≤10 V DC
Low battery detect Voltage 10.5 ± 0.5 V DC
Over Voltage Protection >15.8 ± 0.5 V DC
Digital Selectivity Calling (DSC) Class D
LCD Display FSTN 256x160 Pixels
Hailer Audio Power Out 30 W
AIS Max Targets 150
TRANSMITTER
Frequency error ≤±1.5 KHz
RF Power : Hi 23 ± 2 W
RF Power : Lo 0.8 ± 0.2 W
Maximum Deviation ≤± 5 KHz
S/N at 3KHz Dev. ≥40 dB
Modulation Distortion ±3KHz ≤10 %
Audio Response at 1KHz Dev. +1 to -3dB of 6dB/octave from 300hz to 3KHz dB
Spurious/Harmonic Emissions: Hi/LO ≤0.25 uW
Modulation Sensitivity ≤15 mV
Current Drain At 12V DC : Hi Power TX ≤6 A
Current Drain At 12V DC : Lo Power TX ≤1.5 A
DSC TX deviation at 1.3K 2.6±0.26 KHz
DSC TX deviation at 2.1K 4.2±0.42 KHz
ATIS TX deviation at 1.3 KHz 1.3±0.13 KHz
ATIS TX deviation at 2.1 KHz 2.1±0.21 KHz
RECEIVER
Intermediate Frequency : 1st 38.85/21.7 MHz
Intermediate Frequency : 2nd 450 KHz
Sensitivity : 12dB SINAD ≤-6 dBuV(EMF)
Squelch Sensitivity: at tight ≤ 6 dBuV(EMF)
Spurious Response Rejection Ratio ≥70 dB
Adjacent Channel Selectivity ≥70 dB
Intermodulation Response ≥68 dB
S/N at 3KHz Dev. ≥40 dB
Audio Output Power At THD 10% ≥2.5 W
Audio Distortion ≤10 %
Audio Response +1 to -3dB of 6dB/octave from 300hz to 3kHz dB
Current Drain : Max Audio Power ≤1.5 A
Current Drain : Stand-By ≤0.45 A
2ND RX Sensitivity For 12dB SINAD ≤ 0 dBuV(EMF)
2ND RX bit error ratio@-107dBm ≤ 10-2

AIS

Class Class-B CSTDMA
AIS Transmit function Yes, single AIS transmitter
Frequency range 161.500 to 162.025 in 25kHz steps MHz
Output power 33 ± 1.5 dbm
Channel bandwidth 25 kHz
Modulation modes 25 kHz GMSK for AIS TX and RX
FrBit rate 9600 b/s ± 50 ppm (GMSK)
