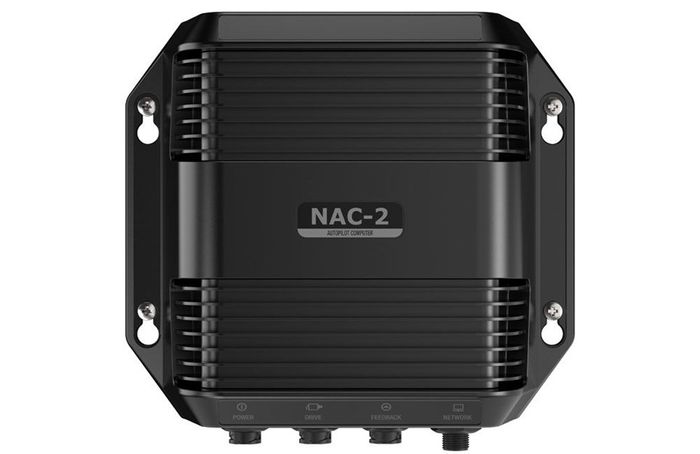

NAC-2 AUTOPILOT COMPUTER

Part No:
000-13249-001
POA

Overview

The NAC-2 is the centre of your autopilot system, containing the electronics needed to operate and interface with other key components. The NAC-2 has been designed for boats up to ten metres (35 feet) in length and is suitable for low-current hydraulic steering pumps, mechanical drive units, or solenoid valves.

Key Features

  • Recommended for boats up to 10 metres (33 feet) in length
  • Plug & Play installation
  • Compatible with low-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves

Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats

  • 12 or 24 V DC input 8A continuous output, 12A peak
  • Solenoid output capable
  • 3 A clutch output
  • Optional Auto/Standby Switch
  • Drive & Processing circuitry and components identical to commercial autopilots
  • Rudder feedback options: NMEA2000 Rudder Feedback (RF25), Resistive Rudder -Feedback. New SD10 Mechanical Drive plugs straight in to drive and RFU connectors

Mechanical/Environmental

Operating temperature -25°C to +55°C (13°F to 131°F)
Protection Splashproof, IPx5
Weight 0.6 kg (1.3 lbs)
Overall Dimensions Width: 7.1 in \ 180 mm
  Height: 2.2 in \ 57 mm

Electrical

Power supply 9-31.2 V DC
Load 140 mA + drive unit load
Performance Drive: 8 A cont., 12 A for 1 s

Interfaces

Network 1xMicroC (NMEA2000)
Feedback Variable voltage/resistive 0-5V
Drive output To PUMP-1 or HELM-1
Power supply 9-31.2 V DC
Solenoid 12/24V DC, common, load range 10mA to 10A, off current <1mA
Clutch 12/24V DC, min 10mA, max 3A
