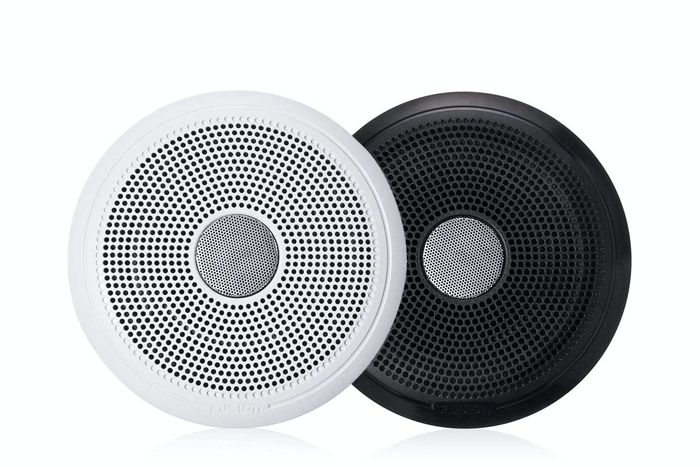

XS-F65CWB FUSION 6.5" SPEAKER

Part No:
010-02196-00
POA

Overview

Continuing to set the benchmark for marine audio entertainment, the Fusion XS Series speakers feature trademark quality audio reproduction and enhanced marine aesthetics at a mid-range price point. Optimized for use in the marine environment, and built for performance, these stylish speakers are designed to produce consistently high quality audio at all volume levels, season after season.

With an IP65 weatherproof rating, True-Marineā„¢ design and an industry-leading 3-year warranty, you can enjoy peace of mind that your XS speakers are built to last on your boat.

EXPERIENCE SOUND AND COLOUR

  • Enjoy high-performance acoustics, enhanced protection from the environment and multi-colour RGB LED lighting all at a mid-range price point with the XS Series speakers from Fusion.
  • Experience multi-colour RGB LED lighting to brighten up your boating experience.
  • The injection-moulded polypropylene cone provides clean, clear audio reproduction.
  • The aluminium dome tweeter provides a smooth upper frequency response and increased efficiency.
  • With an increase in real power, the voice coil provides a high-quality sound experience.
  • The speakers are available in 4, 6.5 and 7.7″ designs with both classic- and sports-style2 grilles.
  • Engineered to last season after season, the speakers include a 3-year warranty.

General


Physical dimensions (Diameter x Depth) 7.7" Classic: 7.72" x 3.70" (196 x 94 mm)
7.7" Sports: 7.72" x 3.82" (196 x 97 mm)
6.5" Classic: 6.97" x 3.19" (177 x 81 mm)
6.5" Sports: 6.97" x 3.27" (177 x 83 mm)
4" Classic: 5.31" x 2.68" (135 x 68 mm)
Water and dust rating IP65
Configuration Coaxial
Speaker size XS-F77CWB / XS-FL77SPGW: 7.7"
XS-F65CWB / XS-FL65SPGW: 6.5"
XS-F40CWB: 4"
Peak power (Watts) 7.7" Speaker: 240 W
6.5" Speaker: 200 W
4" Speaker: 120 W
RMS power (Watts) 7.7" Speaker: 60 W
6.5" Speaker: 50 W
4" Speaker: 30 W
Sensitivity (1 W / 1 m) 7.7" Speaker: 92 dB
6.5" Speaker: 91 dB
4" Speaker: 87 dB
Frequency response 7.7" Speaker: 70 Hz-18 kHz
6.5" Speaker: 80 Hz-18 kHz
4" Speaker: 100 Hz-18 kHz
Nominal impedance 4 ohms
Recommended amplifier power (RMS) 7.7" Speaker: 25-200 W/Ch
6.5" Speaker: 20-150 W/Ch
4" Speaker: 15-80 W/Ch
LED lighting Yes (RGB; sports-style only)
LED supply voltage 10.8-16 VDC (sports-style only)
LED load current @ 14.4 VDC 150 mA (sports-style only)
Operating temperature range 32° to 122° F (0° to 50° C)
Voice coil diameter 7.7": 1.18"
6.5": 1.18"
4": 1"
Operating temperature range 7.7" / 6.5": Polypropylene cone with cloth surround
4": Polypropylene cone with rubber surround
Tweeter type Aluminum dome
Compass-safe distance 7.7": 157.5" (400 cm)
6.5": 122" (310 cm)
4": 100.5" (255 cm)
Warranty 3 years

Mounting dimensions


Mounting diameter clearance 7.7": 6.38" (162 mm)
6.5": 5.31" (135 mm)
4": 3.90" (99 mm)
Mounting depth clearance 7.7": 3.03" (77 mm)
6.5": 2.64" (67 mm)
4": 2.13" (54 mm)

Optimum enclosure recommendations


Sealed enclosure volume1 7.7": 0.35 cubic ft (10 L)
6.5": 0.28 cubic ft (8 L)
4": 0.14 cubic ft (4 L)
