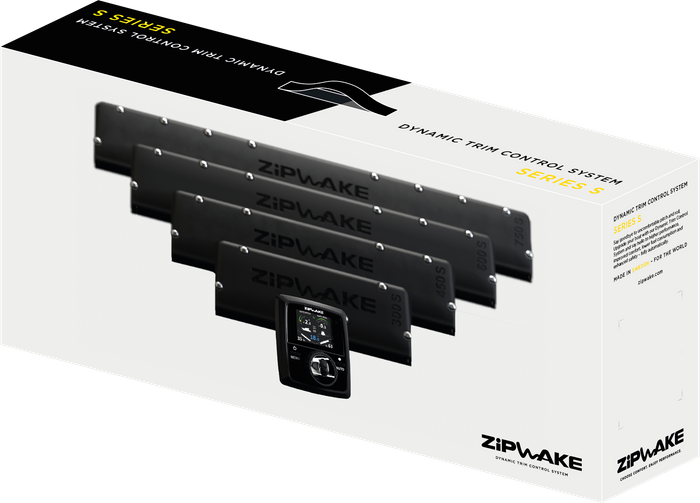

ZIPWAKE S SERIES, 300MM KIT INCL DISPLAY
Overview
Zipwake, the worlds first inexpensive dynamic trim control system, incorporates a state of the art series of durable, fast acting interceptors, eliminating the well-known trim problems of planing and semi-planing boats. The system is fully automatic and significantly enhances performance fuel economy, comfort and safety when accelerating, turning or running in a seaway. Zip-wake delivers a more comfortable ride, better performance and improved fuel consumption- whatever the conditions.
Pack Includes:
Control Panel with Standard 7m Cable
Distribution Unit with 4m Power Cable
Two 300mm Interceptors with 3m cable & covers
Key Features:
5 times faster actuation.
Dynamically eliminates uncomfortable and dangerous boat pitch and roll.
Automatically minimizes wave resistance and saves fuel.
Built-in quality, simplicity and easy expansion, yet affordable.
Intuative and precise control.
Comfort and safety.
Performance and fuel economy.
- Fully automatic
- Dynamic pitch and roll control
- Steering and turn enhancement
- Built-in GPS and motion sensors
- Unique and intuitive 3D controls
- Sunlight readable color display
- Instant state user feedback
- Auto power on/off via ignition key sense
- Full range of electrical interfaces
- Waterproof
- Auto dimming / night mode
- Upgradable via USB stick
- Up to four control panels in the system
- Surface, flush or gimbal bracket mount
- Manages installation configurations from 1 up to 6 interceptors
- Auto Cleaning - Selectable periodic cleaning cycle - Prevents fouling inside the interceptor
- Monitored and/or controlled from external devices, e.g. multifunction displays or plotters via its NMEA 2000 interface
SPECIFICATIONS
Model | IT300-S |
Length | 300 mm |
Weight |
2.1 kg
|
Max. Boat Speed | 60 knots |
Blade Stroke
|
30 mm (1.2 in) |
Blade Rate | 20 mm/s (0.8 in/s) |
Thru-Hull Cable Fitting | Concealed or above waterline |
Servo actuator | SU-S |
Cable Length
|
3 m (10 ft), extendable up to 6 m (20 ft) |
Cable Material | PUR |
Connector | M12 5-pin circular |
Connector Diameter | 14.5 mm (0.57 in) |
Supply Voltage
|
12 - 32 V DC |
Power Consumption | 25 W max |
Operating Temperature | 0° to +40°C (+32° to +104°F) |
Storage Temperature
|
-40° to +90°C (-40° to +194°F) |
Waterproof Rating | IP68 5 m (16 ft) |
Compliance | CE, FCC |
Connector Diameter | 14.5 mm (0.57 in) |
