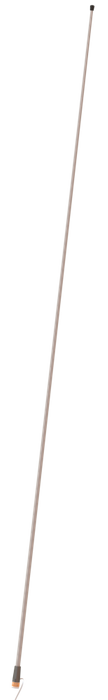

SCAN AIS56 + 10M CABLE, 2.7M LENGTH

Part No:
12056-612
POA

Overview

AIS antenna especially made for leisure boats.
Antenna With fixed cable (10 or 20 m).
For mounting on US style brackets with 1"-14NF threaded stud.
End-fed full 1/2 λ dipole antenna design.
Full omni-directional radiation pattern.
No groundplane needed.

Details

  • AIS antenna especially made for leisure boats
  • Antenna With fixed cable (10 or 20 m)
  • For mounting on US style brackets with 1"-14NF threaded stud
  • End-fed full 1/2 λ dipole antenna design
  • Full omni-directional radiation pattern
  • No groundplane needed

Electrical specifications

FREQUENCY

161.5 - 162.5 MHz (International AIS-band)

BANDWIDTH

1 MHz

IMPEDANCE

50 ohm

VSWR

< 1.5

POLARISATION

Vertical

GAIN

6 dB (Marine), 3 dBd, 5.1 dBi

MAX. INPUT POWER

100 W

Mechanical specifications

COLOR

White and chrome

HEIGHT

Approx. 2700 mm

WEIGHT

1400 g (without cable)

MOUNTING

On brackets with 1"-14NF threaded stud (US style)

MOUNTING PLACE

On mast or deck

MATERIALS

PU-painted glassfibre, Nylon,copper, PVC and chrome plated solid brass

OPERATING TEMPERATURE

-40C to +70C

CONNECTOR

No connector supplied

CABLE

Fixed 10 or 20 m white RG58 cable (See "ORDERING INFORMATION")

INGRESS PROTECTION

IP66

SERIAL NO.

On product label
