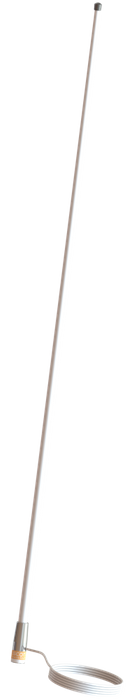

SCAN AIS54 + 10M CABLE, 1.5M LENGTH

Part No:
12054-612
POA

Overview

Long range high gain International Maritime AIS Antenna for the leisure market.
Economical replacement for all professional marine AIS antennas.
Improved gain compared to other high quality marine AIS antennas.
Reduced antenna weight compared to similar marine AIS antennas.
Matching designs available for other frequency bands.
For mounting on all US style brackets with 1"-14NF threaded stud.

Details

Long range high gain International Maritime AIS Antenna for the leisure market
  • AIS antenna especially made for leisure boats
  • Economical replacement for all professional marine AIS antennas
  • Improved gain compared to other high quality marine AIS antennas
  • Reduced antenna weight compared to similar marine AIS antennas
  • Matching designs available for other frequency bands
  • For mounting on all US style brackets with 1"-14NF threaded stud

Electrical specifications

FREQUENCY

161.5 - 162.5 MHz (International AIS-band)

BANDWIDTH

1 MHz

ANTENNA TYPE

End-fed full 1/2 λ dipole - no groundplane needed

IMPEDANCE

50 Ohm

VSWR

< 1.3:1

POLARISATION

Vertical

GAIN

4 dB (Marine), 0.5 dBd, 2.6 dBi

RADIATION PATTERN

Omni-directional

MAX. INPUT POWER

150 W

ANTISTATIC PROTECTION

Direct Ground (DC-short)

Mechanical specifications

COLOR

White and chrome

LENGTH

1375 mm

WEIGHT

700 g (with 10 m cable), 1060 g (with 20 m cable)

MOUNTING

On brackets with 1"-14NF threaded stud (US style)

MOUNTING PLACE

On deck or mast

MATERIALS

PU-painted glass fibre, copper, PCB, PE and chrome plated solid brass

OPERATING TEMPERATURE

-55C to +70C (IEC 60068-2-1, IEC 60068-2-2)

CONNECTOR

No connector supplied

CABLE

10 or 20 m white RG58 cable

SERIAL NO.

On product label
