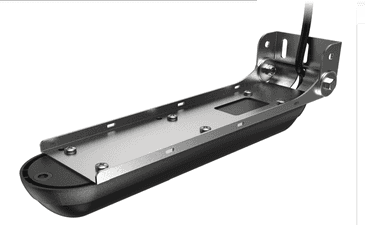

ACTIVEIMAGING 3-IN-1 TRANSDUCER
Overview
Active Imaging 3-IN-1 Transducer: Active Imaging 3-IN-1 combines the new Active Imaging scanning sonar with a traditional Medium/High CHIRP sonar element for easy single transducer installation. 7.6 m (25 ft) cable with 9 pin connector.
Active Imaging Transducers
Active Imaging is a new scanning sonar technology that provides incredibly detailed, high resolution imaging sonar without sacrificing any range.
Active Imaging transducers accomplish this by better directing the SideScan beams which increases resolution and improves range performance.
Active Imaging 3-IN-1 combines the new Active Imaging scanning sonar with a traditional Medium/High CHIRP sonar element for easy single transducer installation.
Active Imaging operates at 800kHz or 455kHz with maximum ranges of 150ft (800kHz) or 300ft (455kHz).
Active imaging Technology
Active Imaging utilizes the latest techniques in sonar signal generation.
Active Imaging transducers are constructed of a polymer that reacts to sound waves more closely to water. This ensures that no sonar signal is lost during transmit or receive.
Active Imaging transducers include separate sonar elements for SideScan transmit and receive Separating transmit and receive allows Active Imaging to have an incredibly fast ping speed (Ping speed directly correlates to image resolution). Additionally, these separate elements focus more of the sonar signal outwardly, increasing the sonar signal to the sides and leading to better range performance.
Key Features:
Active Imaging sonar offers no compromise high resolution detail to users.
800kHz operation covers many use cases and ranges.
With 800kHz range and resolution capabilities users do not need to choose between seeing in high detail or seeing far.
High resolution IPS screens of NSS evo3 and HDS Live show the full image, allowing the user to see the entire underwater environment.
Active Imaging 3-IN-1 transducers combine industry leading CHIRP sonar with new Active Imaging Side and Down views giving users total coverage with award winning sonar.
Active Imaging transducers do not require any modules or extra hardware for use with next-generation displays.
Active Imaging is a new scanning sonar technology that provides incredibly detailed, high resolution imaging sonar without sacrificing any range.
Perfect for pinpointing fish-holding areas like rockpiles, standing timber, weedbeds, ditches and drop-offs, Active Imaging™ 3-in-1 sonar delivers superior clarity and the highest resolution images of fish and structure at a longer range than any other structure imaging technology.
Key Features
- More refined detail and better range than any other imaging technology
- Active Imaging 3-in-1 transducer with CHIRP, SideScan and DownScan
- Easier target identification with FishReveal™ Smart Target View
- Supports Medium and High CHIRP (83/200kHz) + 455/800kHz frequencies
- Compatible with Simrad NSSevo3/3S and GO Series
- Compatible with Lowrance HDS LIVE, HDS Carbon, Elite Ti2 and EliteFS
Ultimate Clarity
See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal™. The high-level clarity, target separation and detail of Active Imaging will help you find more fish by making it easier to quickly identify fish-holding structure like rockpiles, standing timber, weedbeds, ditches and drop-offs – all at a greater distance from your boat. Get the best of CHIRP sonar and DownScan on one screen with the exclusive FishReveal™ Smart Target view that helps you easily recognize fish from structure and cover on high-detailed DownScan images.
Active imaging Technology
Active Imaging utilizes the latest techniques in sonar signal generation. The transducers are constructed of a polymer that reacts to sound waves more closely to water. This ensures that no sonar signal is lost during transmit or receive. The transducers include separate sonar elements for SideScan transmit and receive. Separating transmit and receive allows Active Imaging to have an incredibly fast ping speed (Ping speed directly correlates to image resolution). Additionally, these separate elements focus more of the sonar signal outwardly, increasing the sonar signal to the sides and leading to better range performance.
Enviromental
| Operating temperature | -15°C to +55°C (+5°F to +131°F) |
| Storage temperature | -30°C to +70°C (-22°F to +158°F) |
Physical
| Cable length | 7.6 m (25 ft) |
| Mounting options | Transom, flush step, and jackplate mounting |
| Connector | 9 pin |
Transducer
| Output | Traditional, SideScan imaging, DownScan imaging and temperature |
| Frequency | Traditional: 200 kHz/High : Chirp 83 kHz/Medium Chirp, SideScan: 455 kHz, 800 kHz |
| Max depth | Traditional: 305 m (1000 ft) at 200 kHz/High Chirp and 83 kHz/Medium Chirp: DownScan: 91 m (300 ft): SideScan: 91 m (300 ft) side range at 455 kHz, 46 m (150ft) side range at 800 kHz |
| Operating speed | Traditional: 48 knots (55 mph): DownScan and SideScan: 9 knots (10 mph) |
