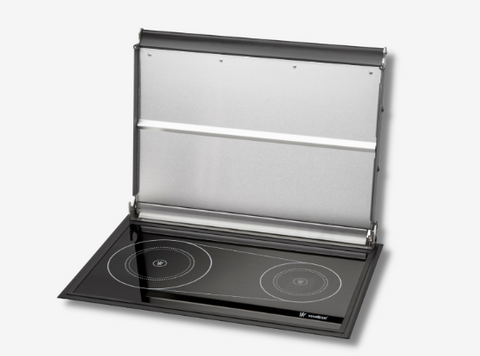

WALLAS NORDIC NDT BLACK DIESEL STOVE AND HEATER
Overview
This flat-design stove has been constructed with flat aluminium edges and protrudes just 2 mm above the surface of the counter.
Wallas 85 Dt ceramic stove represents the state of the art in marine cooking systems. Unlike the hazardous propane systems, it uses diesel in its task as a responsive high temperature stove that will give years of service. The beauty of it is that you can use this stove as a heater as well, when fitted with a Wallas 270 heat blower lid. Imagine – to heat your boat and cook in it with the same unit!
Unlike other systems, the Wallas diesel stove draws combustion air from inside the cabin and carries exhaust outside the cabin. This feature forces fresh air to be drawn into the cabin area, drying the vessel interior and reducing the effects of mildew.
900 – 1900 W
3,000 – 6,400 BTU
First Class Off-Grid Stove-Heater
When you are desiring an escape to cooler destinations and want to prepare tasty food along the way, you need the proper equipment to go with your plans. The Wallas Nordic DT is a two-in-one unit combining a two-plate cooktop and a forced air heater.
Use the left side of the ceramic stove for boiling and the right side for simmering on slightly lower temperatures. There is no need to carry bulky, hazardous propane tanks, as diesel fuel can be fed directly from the fuel tank of your boat or camper. This is particularly important in small spaces, where every inch is valuable. When the blower lid is lowered down, it blows warm, dry air into the galley. Choosing this multi-purpose unit is smart planning as it saves on installation time, weight, and space.
With direct control or thermo heat control, the Wallas Nordic DT is a compact, state-of-the-art marine or van heating and cooking system, which allows you to transform your boat or camper into a stylish space where you will love to invite friends over.
GREENBOOST
Cleaner Burning
- Updated software optimizes fuel and electricity consumption
- Calibrated to burn renewable fossil free diesel (e.g. HVO)
- Larger burner burns fuel slower resulting in ultra low CO2 and NOX emissions
- Extensively tested with Neste
- Improved burner efficiency for more power
The Greenboost burner burns renewable fossil-free diesel cleanly and energy-efficiently, in addition to fossil-based diesel.
Combustion air is taken from inside the boat and exhaust gas is safely vented outside keeping the indoor air clean and odorless.
The exhaust gas also carries the moisture in the indoor air out keeping the air dry.
Fully enclosed laminar burning process ensures a quiet sound level and dries the indoor air.
Perfect for environmentally minded boaters and campers.
Variable output eliminates system cycling and reduces noise.
Brushless blower motors have a very long life-cycle, supporting reliably long service intervals.
Feeding fuel directly from the main tank of the vessel saves space and eliminates the need for a separate tank.
Durable Finnish design and manufacturing keep your Wallas running through tough weather conditions.
Modern solution for cooking and heating.
Space-saving two-in-one unit.
Laminar combustion is a safe burning process with no exposed flame.
Unlike propane stoves, diesel stoves do not require gas inspections.
High Altitude Mode adjusts the combustion when traveling in high altitudes.
Kettle holders (accessory 1110) keep pots safely in place if used in rougher weather.
HEATING
POWER
FUEL
CONSUMPTION
ELECTRICITY
CONSUMPTION
TECHNICAL SPECIFICATIONS
Fuel: Diesel, HVO renewable diesel
Power: 900-1900 W (3,000-6,400 BTU)
Operating Voltage: 12 V
Fuel Consumption: 0,09-0,19 l/h (3.16-6.4 oz/h)
Electricity Consumption: 0,55-0,85 A
Length: 456 mm (17 15/16″)
Width: 325 mm (12 13/16″)
Height: 155 mm (6 7/64″) with the lid upward 330 mm (12 63/64″)
Weight: 12 kg (26 lbs.)
Mounting: Flush mount
Colors: Stainless steel, black
Choose from two colors: Stainless steel or black
RECOMMENDED BUILDS
Boats, Camper vans (retrofitted), trailers, cottages, tiny houses

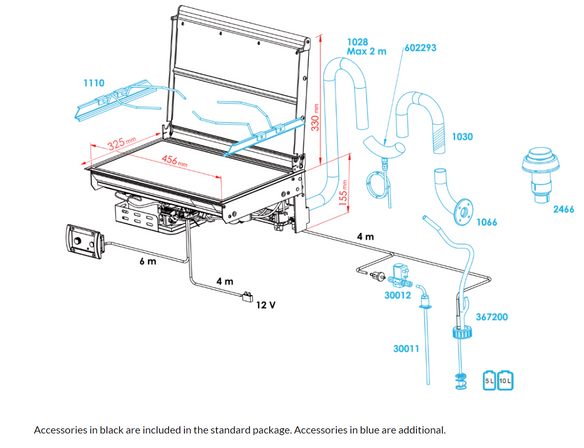

STANDARD PACKAGE CONTENT
Stove-heater

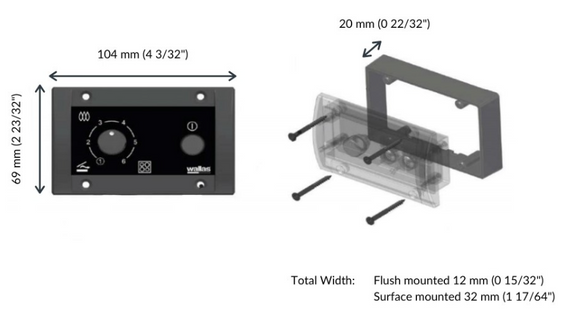

PI Thermo Control Panel, wire 6 m (19.7 ft)
Fuel line 4 m (13 ft)
Power cable 4 m (13 ft) with connector and integrated fuse 15 A
Accessory bag including essential clamps and screws
MATERIALS
Stainless Steel, High-Grade Aluminum, Other Corrosion-Resistant Materials
Technical values are measured in a reference measurement wall, which is constructed to represent a typical boat installation. Values have been measured with maximum length of ducting, exhaust pipe, fuel line, and power cord. The figures allow for 10 % reserve – yours may vary.
Wallas diesel stoves and heaters are designed to run with standard road and boat diesel, as well as renewable fossil free diesel. Check with your distributor for further details on best options for your needs.
