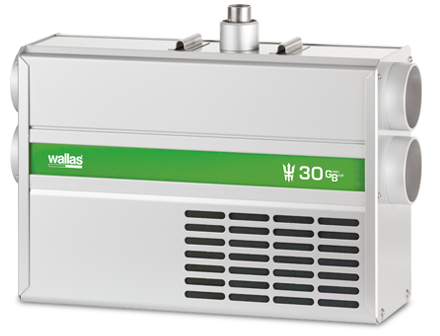

WALLAS DIESEL HEATER 30GB
Overview
New, more powerful 3.0Kw heater for environmentally minded customers!
Our new 30GB offers increased heating power and more air volume for boat owners. More heating power means you can heat up your boat faster, saving power and fuel with shorter heating time.
Powerful Design Punch Offers Increased Heating Power and Air Volume
Wallas 30 GB has been the most popular diesel air heater in the Wallas range of products due to its low energy consumption and optimal heating power for small to mid-size boats. In addition to efficiency, the variable output eliminates disturbing starts and stops allowing you to rest and relax. Boaters also appreciate the laminar combustion for clean dry heat, which keeps the windows fog-free.
Improving on the features of the older 30 Dt model, 30 GB moves more air with better ventilation. With double inlet pipes, this 3.0 kW heater is engineered to ensure you will always have fresh airflow in the cabin. The simple-to-use PI Thermo control panel maintains a steady target temperature for everyone’s comfort. 30 GB’s outside dimensions, controls, and connectivity are the same as in the older 30 Dt and similar to 30 D models, which makes it an easy upgrade to a newer more energy-efficient heater.

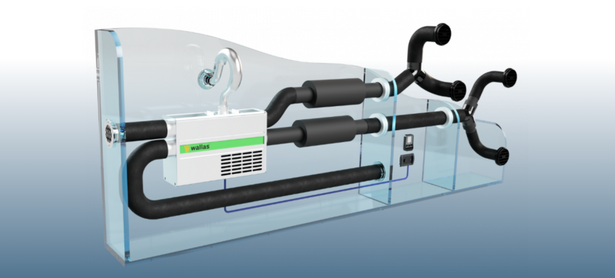

Two Inlets and Outlets Improve Airflow and Efficiency
Two inlets take fresh air from outside and recirculate heated air in the cabin. This improves efficiency and ensures oxygen rich air in the cabin.
Two outlets reduce air drag and keep the sound level low. They also reduce power consumption and facilitate smooth distribution of heated air throughout the cabin. The bigger the cross-sectional area of the ducts are, the less it reducts the airflow and does not require more power from the ventilation fan.
Two inlets and outlets improve fresh airflow and efficiency.
Combustion air is taken from outside the boat through the outer coaxial pipe.
Exhaust gas is safely expelled outside through the inner coaxial pipe keeping the indoor air clean and odorless.
Fully enclosed laminar burning process ensures a quiet sound level and dries the indoor air.
Brushless blower motors have a very long life-cycle and require less frequent servicing.
Feeding fuel directly from the main tank of the vessel saves space and eliminates the need for a separate tank.
Durable Finnish design and manufacturing keep your heater running through tough weather conditions.
Three second press-and-hold upon starting the unit improves safety for families with children.
Enjoy smooth temperature in cabin.
Ensure everyone’s safety with a heater that has low temperature on unit and exhaust pipe.
Keep interior upholstery fresh and windows dry with dry heat from the laminar combustion.
Have better comfort control with an easy-to-use thermostatic control panel.
Save fuel and electricity with energy-efficient Wallas Greenboost technology.
HEATING
POWER
FUEL
CONSUMPTION
ELECTRICITY
CONSUMPTION
TECHNICAL SPECIFICATIONS
Fuel: Diesel, HVO renewable diesel
Power: 1500-3000 W (5,100-10,200 BTU)
Operating Voltage: 12 V
Fuel Consumption: 0,15-0,3 l/h (5.2-10.5 oz/h)
Electricity Consumption: 0,8-1,75 A
Air Volume at min Heat: 61 m3/h (36 cfm)
Air Volume at max Heat: 103 m3/h (61 cfm)
Length: 424 mm (16 11/16″)
Width: 140 mm (5 1/2″)
Height: 277 mm (10 7/8″)
Weight: 10 kg (22 lbs)
Mounting: Floor or wall
RECOMMENDED BUILDS
Boats: 7-9 m (22-29 ft)
Camper vans (retrofitted): MB Sprinter, Fiat Ducato
Trailers: 4-8 m (13-26 ft)

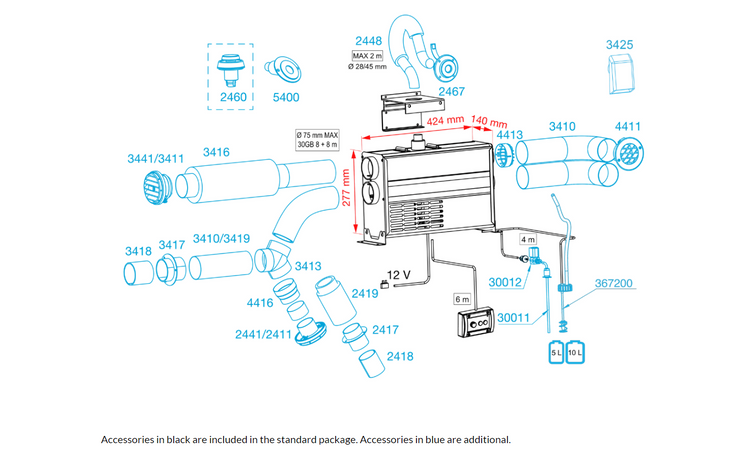

STANDARD PACKAGE CONTENT
Heater
PI Thermo Control Panel, wire 6 m (19 ft)
Fuel line 4 m (13 ft)
Mounting plate, feet brackets
Power cable 4 m (13 ft) with connector and integrated fuse 15 A
Accessory bag including essential clamps and screws
MATERIALS
Stainless Steel, High-Grade Aluminum, Other Corrosion-Resistant Materials
Recommended builds should be used as general guidelines. The needed heat output is based largely on the material (wood, fiberglass, aluminum etc.) and structure of the boat. Always discuss this with a Wallas distributor, before making your purchase.
Technical values are measured in a reference measurement wall, which is constructed to represent a typical boat installation. Values have been measured with maximum length of ducting, exhaust pipe, fuel line, and power cord. Figures allow for 10% reserve – yours may vary.
Wallas diesel heaters are designed to run with standard road and boat diesel, as well as renewable fossil free diesel. Check with your distributor for further details on best options for your needs.
