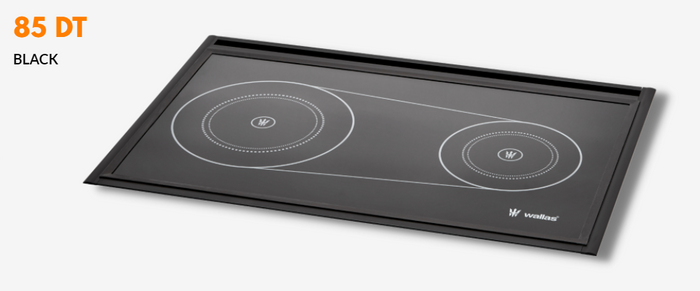

WALLAS DIESEL STOVE 85DT BLACK LINE
Overview
This flat-design stove has been constructed with flat aluminium edges and protrudes just 2 mm above the surface of the counter.
Wallas 85 Dt ceramic stove represents the state of the art in marine cooking systems. Unlike the hazardous propane systems, it uses diesel in its task as a responsive high temperature stove that will give years of service. The beauty of it is that you can use this stove as a heater as well, when fitted with a Wallas 270 heat blower lid. Imagine – to heat your boat and cook in it with the same unit!
Unlike other systems, the Wallas diesel stove draws combustion air from inside the cabin and carries exhaust outside the cabin. This feature forces fresh air to be drawn into the cabin area, drying the vessel interior and reducing the effects of mildew.
Marine Stove that Provides Sleek Design for a Fresh New Feel
Make your boating season a success with a modern ceramic cooktop with two plates. Use the left side for boiling and the right side for simmering at slightly lower temperatures.
There is no need to change heavy propane tanks as the fuel can be fed directly from the tank of your boat or vehicle. This is particularly important in small spaces, where every inch is valuable.
85 DT’s flush mount aluminum edges are only 2 mm above the surface of the counter. It blends in well and does not compromise the aesthetic look of your cabin. This is state-of-the-art cooking in off-grid environments.
GREENBOOST
Cleaner Burning
Updated software optimizes fuel and electricity consumption
Calibrated to burn renewable fossil free diesel (e.g. HVO)
Larger burner burns fuel slower resulting in ultra low CO2 and NOX emissions
Extensively tested with Neste
Improved burner efficiency for more power
The Greenboost burner burns renewable fossil-free diesel cleanly and energy-efficiently, in addition to fossil-based diesel.
Combustion air is taken from inside the boat and exhaust gas is safely vented outside keeping the indoor air clean and odorless.
The exhaust gas also carries the moisture in the indoor air out keeping the air dry.
Fully enclosed laminar burning process ensures a quiet sound level and dries the indoor air.
Perfect for environmentally minded boaters and campers.
Brushless blower motors have a very long life-cycle, supporting reliably long service intervals.
Feeding fuel directly from the main tank of the vessel saves space and eliminates the need for a separate tank.
Durable Finnish design and manufacturing keep your Wallas running through tough weather conditions.
Stylish ceramic stove is easy to install and keep clean.
Flush mount aluminum edges are only 2 mm above the surface of the counter.
Laminar combustion is a safe burning process with no exposed flame.
Unlike propane stoves, diesel stoves do not require gas inspections.
High Altitude Mode adjusts the combustion when traveling in high altitudes.
Kettle holders (accessory 1110) keep pots safely in place if used in rougher weather.
HEATING
POWER
FUEL
CONSUMPTION
ELECTRICITY
CONSUMPTION
TECHNICAL SPECIFICATIONS
Fuel: Diesel, HVO renewable diesel
Power: 900-1900 W (3,000-6,400 BTU)
Operating Voltage: 12 V
Fuel Consumption: 0,09-0,19 l/h (3-6.4 oz/h)
Electricity Consumption: 0,2-0,35 A
Length: 456 mm (17 15/16″)
Width: 325 mm (12 13/16″)
Height: 150 mm (5 29/32″)
Weight: 8 kg (17.6 lbs)
Mounting: Flush mount
Colors: Stainless steel, black
Choose from two colors: Stainless steel or black
RECOMMENDED BUILDS
Boats, Camper vans (retrofitted), trailers, cottages, tiny houses
STANDARD PACKAGE CONTENT
Stove
PI Thermo Control Panel, wire 6 m (19.7 ft)
Fuel line 4 m (13 ft)
Power cable 4 m (13 ft) with connector and integrated fuse 15 A
Accessory bag including essential clamps and screws
MATERIALS
Stainless Steel, High-Grade Aluminum, Other Corrosion-Resistant Materials
Technical values are measured in a reference measurement wall, which is constructed to represent a typical boat installation. Values have been measured with maximum length of ducting, exhaust pipe, fuel line, and power cord. The figures allow for 10 % reserve – yours may vary.
Wallas diesel stoves and heaters are designed to run with standard road and boat diesel, as well as renewable fossil free diesel. Check with your distributor for further details on best options for your needs.
