SCAN AM/FM54 + 10M CABLE, 1.5M LENGTH

Part No:
15054-612
POA

Overview

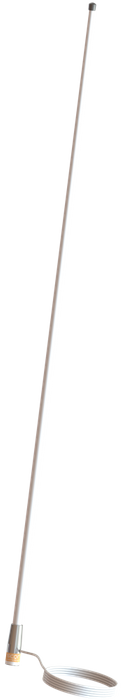

Scan AM/FM54 Antenna with 10m cable (1.5m)

Details

Long range DAB/AM/FM Antenna for the leisure market

  • DAB/AM/FM receiving antenna especially made for leisure boats
  • Economical replacement for all professional DAB/AM/FM antennas
  • Matching designs available for other frequency bands
  • For mounting on US style brackets with 1"-14NF threaded stud

Electrical specifications

FREQUENCY

(DAB/FM/AM Radio Broadcast bands)

ANTENNA TYPE

End-fed full 1/2 λ dipole - no groundplane needed

IMPEDANCE

Nom. 50 Ohm

POLARISATION

Vertical

RADIATION PATTERN

Omni-directional

ANTISTATIC PROTECTION

Direct Ground (DC-short)

Mechanical specifications

COLOR

White and chrome

LENGTH

1375 mm

WEIGHT

780 g (with 10 m cable), 1140 g (with 20 m cable)

MOUNTING

On brackets with 1"-14NF threaded stud (US style)

MOUNTING PLACE

On deck or mast

MATERIALS

PU-painted glass fibre, PVC, copper and chrome plated solid brass

OPERATING TEMPERATURE

-55C to +70C (IEC 60068-2-1, IEC 60068-2-2)

CONNECTOR

No connector supplied

CABLE

10 or 20 m white RG58 cable

SERIAL NO.

On product label
