EPOWER 2000W/12V w/ RCD&AC SWITCH

Part No:
EN1120-X
POA

Overview

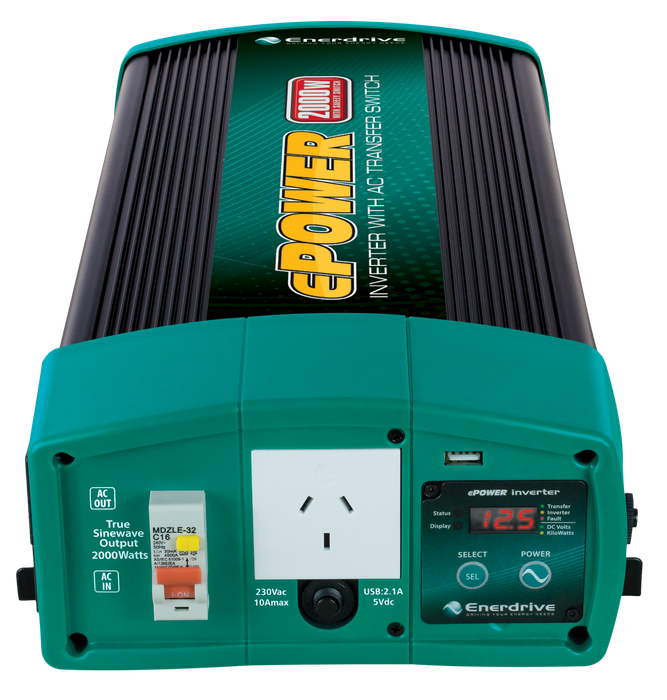

ePOWER 2000W True Sine Wave Inverter with AC Transfer Switch & Safety Switch.

The ePOWER 2000W Inverter with AC Transfer & Safety Switch is one in a family of affordable, high quality, professional level inverters by Enerdrive. By using the latest power conversion technology, ePOWER inverters deliver clean and energy efficient true sine wave AC power from your DC supply. This ePOWER Inverter incorporates a 16A AC Transfer Switch which allows for seamless AC power transfer between Mains/Generator and Inverter. This helps to keep your appliances running with almost no break time on AC transfer and allows for a much simpler installation on-board.

Also included in the unit is a RCD Safety Switch. This switch monitors the flow of electricity through the inverter and detects any problems that may pose a risk to personal safety and switches the output power off within 0.03 of a second. The ePOWER 2000W is built to operate basic equipment such as power tools, computers, microwave ovens, televisions and other appliances that use up to 2000W of power for operation. All Enerdrive ePOWER Inverters are covered by our extensive 3-Year warranty.

ePOWER Inverter Features:

Seamless 16A AC Internal Transfer Switch.
AC RCD/Safety Switch with test button.
Removable LED Remote Control Display Panel.
Regulated Pure Sine Wave Output.
Silent Operation.
Compact Size for Easy Installation.
USB Port for charging USB devices.

Features

ePOWER 2000W True Sine Wave Inverter with AC Transfer Switch & Safety Switch

The ePOWER 2000W Inverter with AC Transfer & Safety Switch is one in a family of affordable, high quality, professional level inverters by Enerdrive. By using the latest power conversion technology, ePOWER inverters deliver clean and energy efficient true sine wave AC power from your DC supply.

This ePOWER Inverter incorporates a 16A AC Transfer Switch which allows for seamless AC power transfer between Mains/Generator and Inverter. This helps to keep your appliances running with almost no break time on AC transfer and allows for a much simpler installation on-board.

Also included in the unit is a RCD Safety Switch. This switch monitors the flow of electricity through the inverter and detects any problems that may pose a risk to personal safety and switches the output power off within 0.03 of a second.

The ePOWER 2000W is built to operate basic equipment such as power tools, computers, microwave ovens, televisions and other appliances that use up to 2000W of power for operation. All Enerdrive ePOWER Inverters are covered by our extensive 5 Year warranty.

ePOWER Inverter Features:

  • Seamless 16A AC Internal Transfer Switch
  • AC RCD/Safety Switch with test button
  • Removable LED Remote Control Display Panel
  • Regulated Pure Sine Wave Output
  • Silent Operation
  • Compact Size for Easy Installation
  • USB Port for charging USB devices

Specifications

Model – Description EN1120S-X EN1120S-X-24v EN1226S-X
AC Output Power 2000W 2000W 2600W
AC Output Current 8.7A 8.7A 11.3A
AC Output Voltage 230 Vac / 50 Hz
AC Output Waveform Sinewave (<3% THD)
Nominal DC Input Voltage 12.5 VDC 24.5 VDC 12.5 VDC
No Load battery draw < 1.5 ADC
DC Input Voltage operating range 10.5 – 15.5 VDC 21.0 – 31.0 VDC 10.5 – 15.5 VDC
Under Voltage Alarm 11.0 / 12.1 VDC 22.0 / 24.2 VDC 11.0 / 12.1 VDC
Under Voltage Alarm Recovery 11.3 / 12.3 VDC 22.6 / 24.6 VDC 11.3 / 12.3 VDC
Under Voltage Shutdown 10.5 / 11.8 VDC 21.0 / 23.6 VDC 10.5 / 11.8 VDC
Under Voltage Shutdown Recovery 12.0 / 12.6 VDC 24.0 / 25.2 VDC 12.0 / 12.6 VDC
Over Voltage Shutdown 15.5 VDC 31.0 VDC 15.5 VDC
USB Port 5V, 750 mA
AC Transfer Switch
Transfer Time < 30 ms
Transfer Relay Rating 16A (resistive load)
AC Input socket IEC-C20 16A max
AC Output socket IEC-C19 16A max
AC Output Front GPO 10A max
Safety and Environmental
Conformance All required Australian Standards , CE LVD: EN/IEC 62040-1, IEC61558-2-16
EMI / EMC CE EMC: EN/IEC 62040-2 category C1
Agency Markings RCM , CE
Operating Temperature 0°C to 40°C
Storage Temperature -20°C to 60°C
Relative Humidity 5-90% non-condensing
Operating Altitude Up to 3000 meters above sea level
Weights and Dimensions
Weight 5.9 kg 5.9 kg 7.0 kg
Dimensions (W x L x H) 435x230x115 mm 435x230x115 mm 560x230x115 mm
Warranty 5 Years

Note: Specifications subject to change without notice.

Estimate Run Time On Load

Following run times are estimates for reference, based on using different battery bank sizes. Actual run times may vary.

Important: Power Drain from DC Battery Bank.

Please note that there is a power drain of approx 700mA from the battery bank when the Inverter is running in AC By-Pass mode. In order to avoid draining down the battery bank, a battery charger with sufficient power is required to maintain the battery bank voltage.

  Estimate run time on different 12V Battery Bank Size
AC Load 60AH 120AH 180AH 240AH 300AH
50 W 11 hrs 22 hrs 33 hrs 44 hrs 55 hrs
100 W 5 hrs 11.5 hrs 17 hrs 23 hrs 29 hrs
200 W 2.5 hrs 5 hrs 8 hrs 11 hrs 13.5 hrs
500 W 49 mins 2 hrs 3 hrs 4 hrs 5 hrs
1000 W 15 mins 49 mins 1.5 hrs 2 hrs 2.5 hrs
1500 W 8 mins 27 mins 49 mins 1 hrs 1.5 hrs
2000 W N.R. 15 min 34 mins 49 mins 1 hrs
2600 W N.R. 11 min 25mins 37 mins 49 mins

Note: Specifications subject to change without notice.
