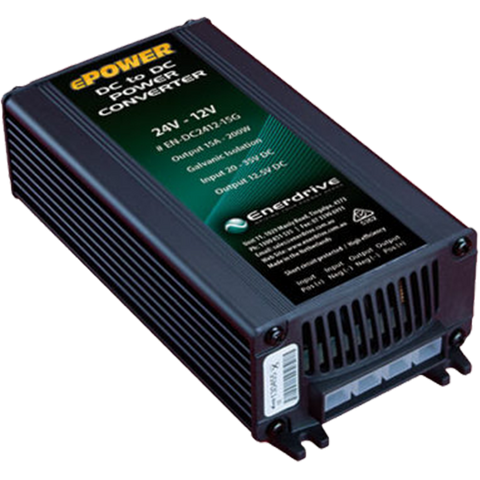

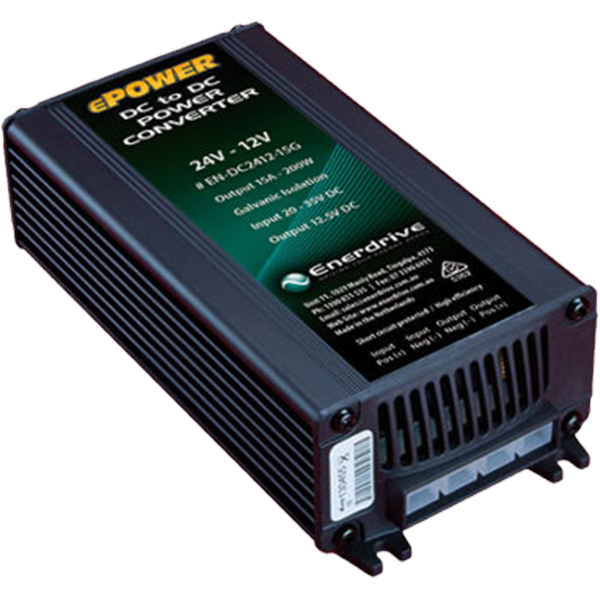

24-12V 15AMP GLV ISO DC CONVERTER

Part No:
EN-DC2412-15G
POA

Overview

These compact and rugged DC to DC converters with galvanic isolation units omit little heat making them safe and convenient for installation where space is hard to come by. Enerdrive’s DC to DC galvanic isolation converters use Switch Mode technology with protection against over-current / overload, over-heating, over-voltage and reverse polarity connection. Units can be paralleled multiple times to increase overall output. Models with 27.6V output can also be used as a 24V battery charger.

Features

These compact and rugged DC to DC converters with galvanic isolation units omit little heat making them safe and convenient for installation where space is hard to come by. Enerdrive’s DC to DC galvanic isolation converters use Switch Mode technology with protection against over-current / overload, over-heating, over-voltage and reverse polarity connection. Units can be paralleled multiple times to increase overall output. Models with 27.6V output can also be used as a 24V battery charger.



Applications

  • Recreational vehicles
  • Commercial vehicles
  • Industrial systems
  • Communication vehicles
  • Maritime applications
  • Aviation applications

Specifications

EN-DC2412-15G
Input (VDC) 20 – 35
Output (VDC) 12.5
Current (A) 15
Load (W) 200
Weight 600g
Dimension LxWxH 182mm x 88mm x 49mm
