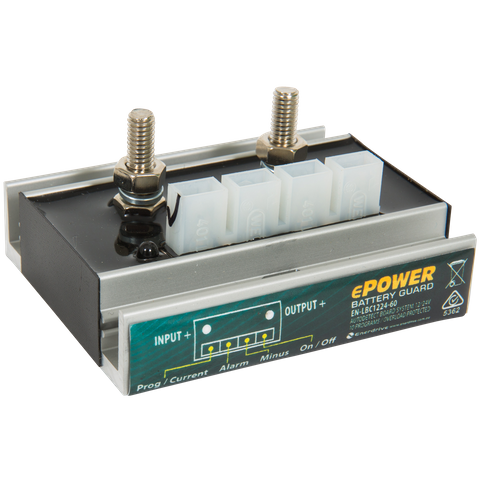

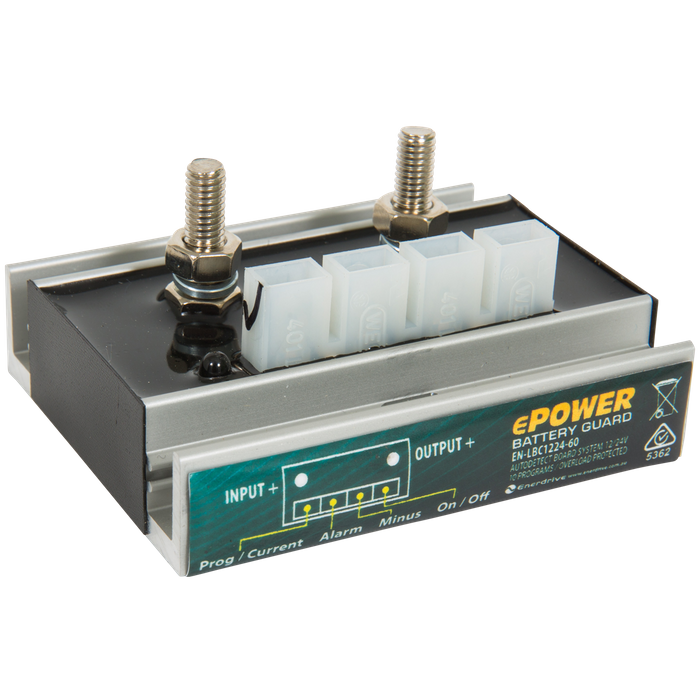

12/24V 60A IP66 LOW BATTERY CUT OUT

Part No:
EN-LBC1224-60
POA

Overview

The ePOWER Low Battery Cutoff protects your batteries from non essential loads before the battery is completely discharged causing damage to batteries and potently denying your engine cranking power. These Low Battery Cutouts also protect connected electrical appliances against over voltage. The voltage load is disconnected whenever the DC voltage goes beyond 16V (12V mode) or 32V (24V mode).

Features

The ePOWER Low Battery Cutoff protects your batteries from non essential loads before the battery is completely discharged causing damage to batteries and potently denying your engine cranking power. These Low Battery Cutouts also protect connected electrical appliances against over voltage. The voltage load is disconnected whenever the DC voltage goes beyond 16V (12V mode) or 32V (24V mode).

Microprocessor Controlled

The ePOWER LBC is microprocessor controlled with 10 different programs that engage or disengage the voltage load over several different voltage paramaters.

Additionally, the ePOWER LBC range offers features like:

  • Overvoltage Protection
  • Ignition proof (no relay, no spark)
  • Delayed alarm output
  • Delayed load disconnect

Applications

  • Recreational vehicles
  • Service vehicles
  • Maritime applications
EN-LBC1224-60
Auto Voltage Detect 12 / 24V
Max Load (shut down current) 60 – 65A
Peak current 120A
Weight 185g
Dimension LxWxH 82mm x 65mm x 41mm
