LECTROTAB FLAT ROCKER SWITCH

Part No:
SAF-SC
POA

Overview

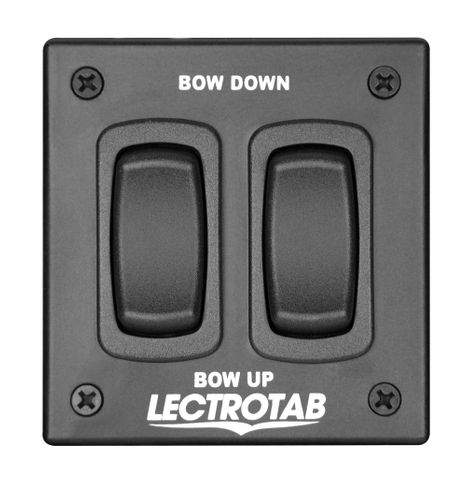

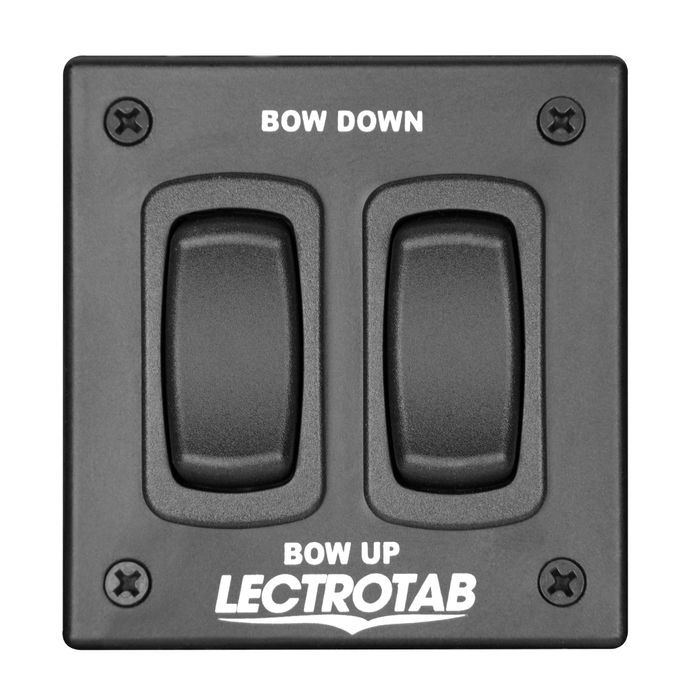

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Rocker switch controls are available in either flat or bat handle style. They are specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run. This control can be upgraded with an LED tab position indicator. The gasket sealed switch is designed to prevent water entry. The control switch is self-contained and does not require an additional control box. Switches are available for single or dual station applications.

FEATURES

  • Switches meet mil-std 202F for salt spray
  • Designed to provide "instant stop" to prevent actuator over-run
  • Gasket sealed switch to prevent water entry
  • Upgrade available to TI-8 LED trim indicator
  • Available for single station SAF-S (SAB-S) or dual station SAF-NS (SAB-NS) applications
  • Operates up to 2 actuators per tab on 12vdc and 4 actuators per tab on 24vdc systems





SPECIFICATIONS

Model Number

Display Color Number of Stations Overall Width Overall Height Mounting Hole Cutout (Height X Width) DC Voltage Fuse Size Power Input (1 Actuator per Tab) Fuse Size Power Input (2 Actuators per Tab) Rocker Switch Accessories Replacement Switch (Individual)
SAF-S (Flat Rocker) Black Single Station Only 3.125"/79.4mm 3.25"/82.5mm 2.25"/57mm X 2"/51mm 12/24 12vdc = 20 amp
24vdc = 10 amp
12vdc = 30 amp
24vdc = 20 amp
TI-8-B or TI-8-S LED Trim Indicator (-B=black, -S=Stainless) SF-S (2 per SAF-S)
SAF-NS (Flat Rocker) Black Dual Stations (Use 2 SAF-NS) 3.125"/79.4mm 3.25"/82.5mm 2.25"/57mm X 2"/51mm 12/24 12vdc = 20 amp
24vdc = 10 amp
12vdc = 30 amp
24vdc = 20 amp
TI-8-B or TI-8-S LED Trim Indicator (-B=black, -S=Stainless) SF-NS (2 per SAF-NS)
SAB-S (Lever Handle) Black Single Station Only 3.125"/79.4mm 3.25"/82.5mm 2.25"/57mm X 2"/51mm 12/24 12vdc = 20 amp
24vdc = 10 amp
12vdc = 30 amp
24vdc = 20 amp
TI-8-B or TI-8-S LED Trim Indicator (-B=black, -S=Stainless) SB-S (2 per SAB-S)
SAB-NS (Lever Handle) Black Dual Stations (Use 2 SAB-NS) 3.125"/79.4mm 3.25"/82.5mm 2.25"/57mm X 2"/51mm 12/24 12vdc = 20 amp
24vdc = 10 amp
12vdc = 30 amp
24vdc = 20 amp
TI-8-B or TI-8-S LED Trim Indicator (-B=black, -S=Stainless) SB-NS (2 per SAB-NS)
