SE130 TUNNEL THRUSTER (24V, 130KG)

Part No:
SE130/250-24V
POA

Overview

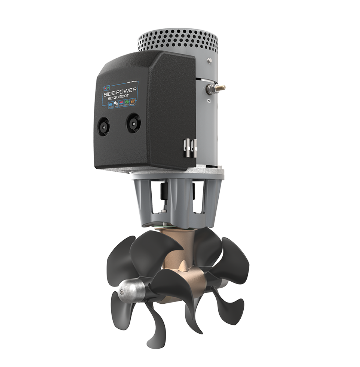

SE130 Tunnel thruster, 24V 130kg thrust ON/OFF

SE130 is our smallest model in the 250mm tunnel range, and the model is very silent because of reduced speed of water flow through the tunnel. If your boat need 100kg+ thrust and can fit a 250mm tunnel, SE130 will be a perfect solution. The SE130/250T includes all the important and unique Sleipner features and qualities - why settle for less.

Properties



FLEXIBLE INSTALLATION

Sleipner offers installation flexibility to work with the space you have. Our thruster models allow installation at any angle on the tunnel, tailored to fit any space available in your vessel.



WATERPROOF HOUSING

Waterproof housing for use in areas exposed to water.



DC

Powered by direct current.



ANALOG

Sleipner analog signal cables with Plug & Play connectors are color-coded to match the wiring diagrams with high-quality connectors to ensure a correct installation.



OVERHEAT PROTECTION

Automatic detection of overheating of internal components. When an unsafe temperature is detected, the unit is automatically shut off to prevent overheating.





GALVANIC SEPARATION

Immersed parts exposed to seawater are galvanic isolated from the onboard electrical system, eliminating stray currents.



SEALED DRIVE LUBRICATION

The thruster gearleg is pre-filled for lifetime lubrication and sealed using a long-time mechanical seal with ceramic and carbon surfaces for ultimate security against water intrusion.



SINGLE PROPELLER

A properly engineered single propeller system will be the most energy efficient thruster. Its compact design fits easily into narrow bows making it the perfect match for our smaller thruster range. With more than 60.000 single propeller thrusters in use, the single propeller has proven its reliability.



Q-PROP™

The Q-PROP™ has measured noise reductions of up to 75% in controlled environments. The five-bladed skew propeller reduces noise levels while maintaining exceptional efficiency. Some thruster models even see an increase in thrust power.

  • The expected noise reduction in average installations: 20-40%
  • Upgrade kits are available for most Sleipner thruster models with special adaptors



INTELLIGENT POWER CONTROL

Sleipner's patented intelligent power control provides a minimal delay between drive directions to reduce wear of the mechanical parts while monitoring solenoid functions. In the case of a solenoid lock-in, the thruster will automatically stop without extra user action or controlling the main switch.

Power Value
Operating Power Electric
Power Requirement 24V DC
Power Output 6.5kW / 8.7hp
Thrust at 24V 160kg / 352lbs
Thrust at 21V 130kg / 284lbs
Operational Running Limit (min) 2-3 duty cycle at 20°C
Nominal Current Draw 350A
Min. Battery CCA (DIN) 400
Min. Battery CCA (SAE) 760
Min. Battery CCA (EN) 680
Recommended fuse ANL 325
Operational Intention Value
Ideal Vessel Class Motor boat, Sail boat
Ideal Vessel Size 13-19m / 42-62ft
Bow Capability Yes
Stern Capability Yes
Retractable Capability No
External Mounting Capability No
Tunnel Capability Yes
Weight Value
Weight 37kg / 77lbs

Measurements Value
(H) Height 398mm / 15.67in
(L) Length 250mm / 9.84in
(W) Width 277mm / 10.91in
(ID) Internal Diameter 250mm / 9.84in
(WD) Water Depth 250mm / 9.84in
(TL) Recommended Tunnel Length 303mm / 11.93in
(TL min.) Minimum Tunnel Length 253mm / 9.96in
(T min.) Minimum Tunnel Wall Thickness 7mm / 0.28in
(T max.) Maximum Tunnel Wall Thickness 9mm / 0.35in

Stern Measurements Value
(L) Internal Length 348mm / 13.7in
(+L) Tunnel Length 345mm / 13.6in
(WD) Stern Water Depth 250mm / 9.8in
(HT) Maximum Hull Thickness 55mm / 2.2in
