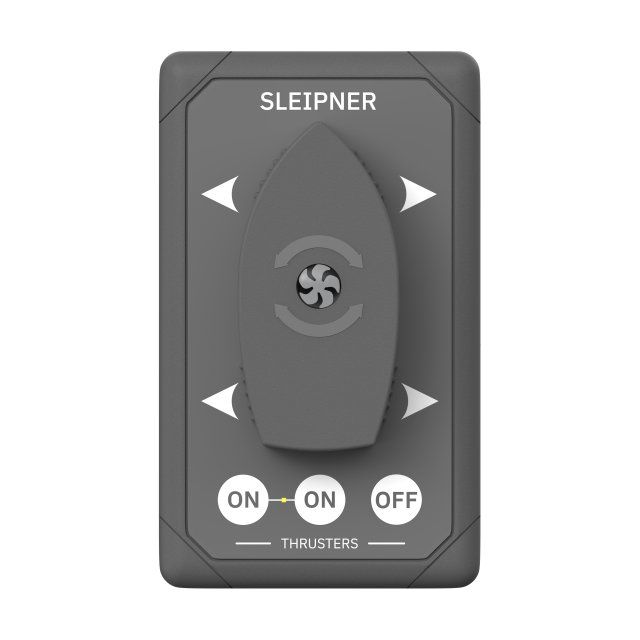

CONTROL PANEL - DOCKING CONTROL (DUAL, BOATSHAPE)

Part No:
8909C
POA

Overview

Boat switch panel dual

Sleipner 8909 C Docking Panel. Buy Sleipner 8909 C Docking Panel online from Advance Trident.

Sleipner's most intuitive control panel yet!
The dual boat switch panel provides an intuitive user experience for boaters with a bow- and stern thruster installed in their boats.

By pushing or rotating the boat-shaped control, the vessel will follow the movements accordingly. Push the entire control sideways, and your boat will move sideways. Rotate the control, and your boat will rotate 360 degrees, or push the bow or stern to get individual control over each thruster.

  • Round cut-out hole (standard instrument size), mounted from the front side
  • Pre-fitted O-ring seal
  • Multi-voltage 12/24V
  • Child safe on/off system
  • Control power lights
  • Automatic deactivation after use

Read more about the significant product features below.

Power Value
Operating Power Electric
Power Requirement 12V DC, 24V DC
Operational Intention Value
Ideal Vessel Class Motor boat, Sail boat
Control Panel Value
Operating Power Systems Electric Systems
Operates 2x Thrusters
Operate Systems Thruster Systems
Panel Color Grey

Measurements Value
(+H) Additional Height 121.2mm / 4.8in
(W) Width 72mm / 2.8in
(a) 70.6mm / 2.8in
(b) 54.9mm / 2.2in
