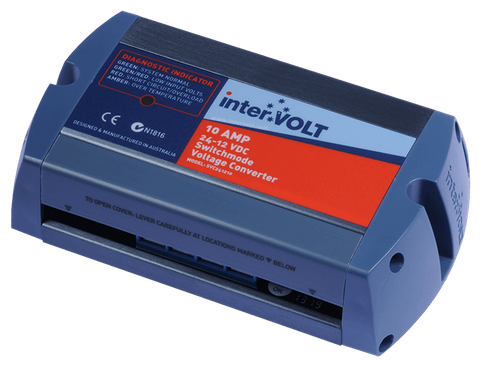

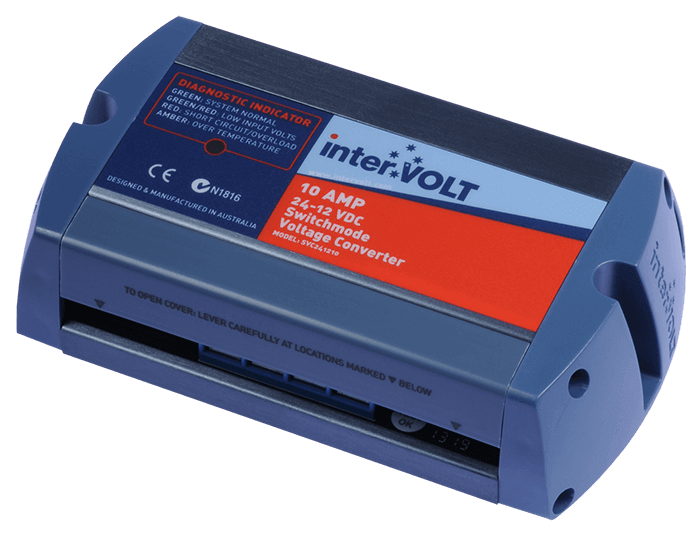

24-12VDC 10AMP CONVERTER

Part No:
SVC241210
POA

Overview

The interVOLTS SPCi Power Conditioners Non-Isolated Mini are condensed versions of the tried and proven Maxi Series range packed with all the same features and benefits.

Diagnostics
Unique to interVOLT, is the self diagnosing electronics. This design provides valuable feedback to installers and operators alike. An LED displays the system status and will indicate standby power, low input voltage, over temperature, overload and output short circuit.

Protection
interVOLT converters feature a range of devices designed to protect the electronics from various connection and application problems. The units are protected against short circuit, overloading and excessive temperature. An internal fuse protects the electronics in the event of component failure.

Performance
A key feature of the interVOLT mini series range is performance. Designed to operate in high ambient temperatures under constant load, the mini series delivers every time. Precise voltage regulation, superior noise filtering and excellent efficiency round off the performance package.

Conformity
interVOLT converters comply with Australian and European standards for electro-magnetic compatibility (EMC), displaying both the ‘C’ Tick and ‘CE’ marks. These approvals are supported by independent examination from a certified testing house. Our Declaration of Conformity is available upon request.

Technology
interVOLT have embraced the latest technology in the engineering and construction of the new mini series converters. Innovative design featuring superior termination, microprocessor control and advanced heatsinking properties combine to produce a truly unique product in an attractive package.

Model SVC241210
Continuous Load Rating @ 30°C
10 Amps @ 13.7VDC
Peak Load Rating @ 30°C 13 Amps @ 13.7VDC
Length Overall 145mm (5.710”)
Width Overall 80mm (3.150”)
Height Overall 40mm (1.575”)
Weight 325 grams (11.45 oz)
Input Voltage Range 19 – 33VDC
Output Voltage 13.7VDC nominal (up to the maximum rated load)
Standby Current Draw <20mA
Power Conversion Efficiency @ 30°C
Typically 93%
Output Ripple Less than 20mV Peak to Peak
Operating Temperature -25°C to + 45°C
Operating Humidity Ideally less than 90%
Enclosure Material Marine grade aluminium dye anodised
End Cap Material Injection moulded electrical grade ABS/PC plastic
Terminal Cover Material Extruded temperature resistant ABS
Diagnostic Indicator Tri-colour LED – monitoring input voltage, overload, short circuit and temperature.
Transient Voltage Protection Filtering – Purpose designed circuit
Overload/Short Circuit Protection Shutdown – Current sensing circuit (automatic reset)
Input Under Voltage Protection Shutdown – Voltage sensing circuit (automatic reset)
Over Temperature Protection Shutdown – Temperature sensing circuit (automatic reset)
Output Over Voltage Protection Internal Fuse – Zener crowbar circuit (not user serviceable)
Input Reverse Polarity Protection Internal Fuse – Diode bypass circuit (not user serviceable)
Termination Power – 6-32 UNC H/D screw terminal. Auxiliary – Euro terminal block
Conformity EMC – Australian AS2064 and European EN50081-1 / EN50082-1
Certification EMC – Australian C Tick mark and European CE mark
