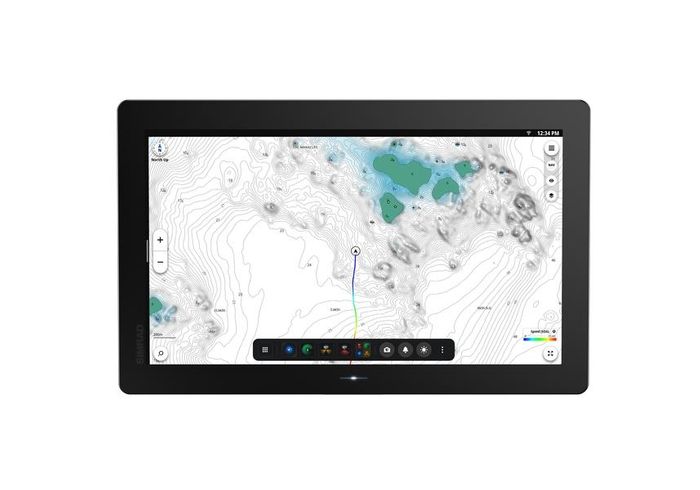

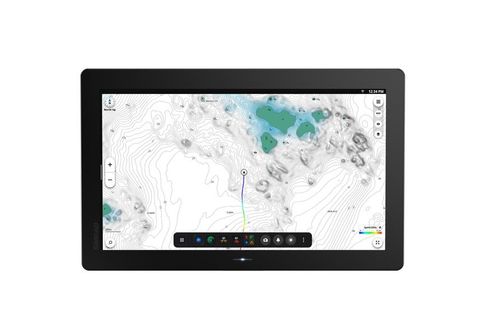

NSO 4 - 16'' MFD

Part No:
000-16320-001
POA

Overview

NSO® 4-16. NEON™ OS, 16-inch Glass-bridge multi-function display. Qualcomm® 8-core processor. Full HD touchscreen. Gigabit Ethernet, WIFI, Video In and Out. Worldwide base map (C-MAP® DISCOVER™ X chart or REVEAL™ X chart required for navigation).

Redesigned from the ground up, responsive & intuitive control, unmatched situational awareness and wide-ranging compatibility are the cornerstones of NSO 4 making it the only choice for serious offshore adventures

Key details
3 Sizes available: 16” / 22” / 24”
Powerful 8 Core processor delivering fast boot, instantaneous chart redraw and fast page transitions
Full-HD, Sunlight Viewable display
New design from the ground up featuring
Edge-glass aesthetic, optimized for premium teak isle
Rear-mount for a clean, flush, trouble-free fit
Rugged waterproof design, for the harshest marine environment
New branding, out of sight lines for a cleaner more sophisticated look
More Ethernet Ports, making integration a breeze
Wide ranging compatibility now with Plug-and-Play CZONE App
High-definition Video In & Out with built in Audio Splitter, so you can keep an eye on the game or the kid’s entertained

Redesigned from the ground up, responsive & intuitive control, unmatched situational awareness and wide-ranging compatibility are the cornerstones of NSO 4 making it the only choice for serious offshore adventures

Key details

  • 3 Sizes available: 16” / 22” / 24”
  • Powerful 8 Core processor delivering fast boot, instantaneous chart redraw and fast page transitions
  • Full-HD, Sunlight Viewable display
  • New design from the ground up featuring
  • Edge-glass aesthetic, optimized for premium teak isle
  • Rear-mount for a clean, flush, trouble-free fit
  • Rugged waterproof design, for the harshest marine environment
  • New branding, out of sight lines for a cleaner more sophisticated look
  • More Ethernet Ports, making integration a breeze
  • Wide ranging compatibility now with Plug-and-Play CZONE App
  • High-definition Video In & Out with built in Audio Splitter, so you can keep an eye on the game or the kid’s entertained

Updated Aesthetics

  • Edge-to-edge glass and rounded corners deliver a modern, refined look.
  • Subtle branding and power button keep the display clean and uninterrupted.
  • Designed to integrate flawlessly with high-end vessels, enhancing helm style and fit.
  • Screen calibration provides more consistent white point across sizes and batches.

Built for the Elements

  • Durable waterproof design with active cooling for improved performance in high ambient temperatures
  • Sunlight viewable SolarMax HD Display suitable for use with Polarized Sunglasses
  • Individual galvanically isolated connectors provide ground loop mitigation.
  • Vibration and shock tested to simulate the harshest marine conditions.

Simplified Installation

  • Rear-mount system simplifies installation with assembly or tools required - simply cut, fit, twist and turn
  • Designed to reduce stress points and improve serviceability for teak isle installations
  • Twist-fit, lockable connectors ensure watertight connection
  • Up to 20% lighter than competitor models

Unmatched Simplicity, Finally Scaled

Now in the format that larger boats have been waiting for, NSO 4 deliver’s the most intuitive and modern OS on the market today.

  • Enjoy a familiar experience with intuitive touch and swipe controls that put you instantly at ease, so you can feel confident and ready for your next adventure.
  • Symbolic of the leap into the future, the modern UI is refined yet powerful – a focus on usability ensures that the most common features and functions are at your fingertips
  • Speed isn’t just a number, it’s a feeling and from the moment you power the unit you know the difference – ultra fast boot, instantaneous chart redraw and seamless page transitions elevate your on-water experience.

NSO 4 is the control center of your smart vessel, connecting and controlling everything from engines and radar to lighting, AV, and entertainment. Take full control with a system built for total vessel integration.

Wide Range Compatibility

  • Whether you are fishing, cruising or anything in between Simrad® makes it easy to build the boat of your dreams by being designed to support large multi-helm systems with up to 10 NEON™ Displays.
  • Plug-and-play connectivity with a variety of 3rd party products including RGB Lighting, Audio control, HTML5 integration and more.

Control at your Fingertips

  • Flexible integration tools for OEM customization, including branded interfaces and custom graphics.
  • Capable of delivering different levels of integration to suit your customer needs from digital switching with CZONE® to rich custom graphics through an OP Box.
  • External controller support with the updated OP 55 Remote Control for greater flexibility and custom key to suit your style.

Your AV Centre

  • Providing total awareness, NSO 4 features 4-way IP video support, high-definition video in with limited sharing across ethernet and out to keep you connected and aware.
  • Never miss a moment by connecting a streaming device to view live Sport or keep the kids entertained with their favorite TV show or movie. Optional Audio out cable allows you to connect into your vessels audio system with ease

Display

Size 16"
Resolution (px) 1920 x 1080
Luminance >1200 nits typ.
Type IPS, Full-HD, sunlight viewable display
Viewing angles in degrees 80° top/bottom, 80° left/right. (typical values at contrast ratio = 10)

Electrical

Supply voltage 12/24 V DC (10.5 V DC to 31 V DC)
Fuse rating 5 A @12/24 V DC
Maximum power consumption 33 W
Protection Reverse polarity and over-voltage (max 32 V)
Galvanic Isolation Yes

Environmental

Operating temperature -15°C to 55°C (5°F to 131°F)
Waterproof rating IPX6 and IPX7

Interface and connectivity

Control Full touchscreen, Keypad (optional OP55 wired controller)
GPS External GPS antenna required (NMEA 2000)
Wi-Fi® Wi-Fi 5 (IEEE 802.11ac-2013)
Ethernet 4 ports (Gigabit) M2 X-Code connectors
NMEA 2000® 1 port (Micro-C connector 1 LEN)
Data card slot 2x (microSD®, SDHC®, SDXC®) Up to 256 GB, Class 10 or higher
Data card formats supported FAT 32, EXT4, ExFAT or NTFS
USB USB 1 port, 2.0, USB 3.0 (In) Audio out, mass storage, software updates, power out or touch control
Video In 1 port HDMI Type, up to 1920 x 1080P (with limited sharing across Ethernet)
Video Out 1 port HDMI Type, up to 1920 x 1080P
Audio Input Via Video In
Audio Output Selectable: Video Out or USB

Physical

Dimensions W x H x D 391 mm (15.4 in) x 243.95 mm (9.6 in) x 78.79 mm (3.10 in) (see drawing tab)
Weight 4.23 Kg (9.23 lbs). (Display with rear mount screws)
Compass safe distance 65 cm (2.13 ft)
Mounting type Rear mount

Other

Supported Charts C-MAP® DISCOVER® X, C-MAP® REVEAL® X, CMOR Mapping
Processor Qualcomm 8155 8-Core
Internal Memory 128GB, >64GB User Data
IP-Camera support IPCAM-1, ONVIF cameras, FLIR M200 & M300 Series
Radars Support Halo Domes 20/20+/24
Halo 2000, 3000
Legacy Halo open arrays 3,4,6,
Legacy HD Radars, HD 10/25kW
Autopilot Compatibility NAC-1, NAC-2, NAC-3, NAC-D, Mercury® (SmartCraft® Connect)

Languges

  • Afrikaans
  • Bulgarian
  • Chinese (中文)
  • Chinese Simplified (中文)
  • Croatian (Hrvatski)
  • Czech
  • Danish (Dansk)
  • Dutch (Nederlands)
  • English (English)
  • Estonian (Eesti)
  • Finnish (Suomi )
  • French (Français)
  • German (Deutsch)
  • Greek (ελληνικά)
  • Hungarian
  • Icelandic (Islenska)
  • Italian (Italiano)
  • Japanese (日本語)
  • Korean (한국어)
  • Latvian (Latviešu )
  • Lithuanian (Lietuvių)
  • Malay
  • Norwegian (Norsk)
  • Polish (Polski)
  • Portuguese (Português)
  • Russian
  • Slovak
  • Spanish (Español)
  • Swedish (Svenska)
  • Thai
  • Turkish (Türkçe)
  • Ukrainian

Supported Data

NMEA 2000® PGN (receive)

59392 ISO Acknowledgment
59904 ISO Request
60160 ISO Transport Protocol, Data Transfer
60416 ISO Transport Protocol, Connection M
60928 ISO Address Claim
65240 ISO Commanded Address
126208 ISO Command Group Function
126992 System Time
126996 Product Info
126998 Configuration Information
127233 Man Overboard Notification (MOB)
127237 Heading/Track Control
127245 Rudder
127250 Vessel Heading
127251 Rate of Turn
127252 Heave
127257 Attitude
127258 Magnetic Variation
127488 Engine Parameters, Rapid Update
127489 Engine Parameters, Dynamic
127490 Electric Drive Status (Dynamic)
127491 Electric Energy Storage Status (Dynamic)
127493 Transmission Parameters, Dynamic
127494 Electric Drive Information
127495 Electric Energy Storage Information
127500 Load Controller Connection State/Control
127501 Binary Status Report
127503 AC Input status
127504 AC Output Status
127505 Fluid Level
127506 DC Detailed Status
127507 Charger Status
127508 Battery Status
127509 Inverter Status
128002 Electric Drive Status (Rapid Update)
128003 Electric Energy Storage Status (Rapid Update)
128259 Speed, Water referenced
128267 Water Depth
128275 Distance Log
128780 Linear Actuator Control / Status
129025 Position, Rapid Update
129026 COG & SOG, Rapid Update
129029 GNSS Position Data
129033 Time & Date
129038 AIS Class A Position Report
129039 AIS Class B Position Report
129040 AIS Class B Extended Position Report
129041 AIS Aids to Navigation (AtoN) Report
129283 Cross Track Error
129284 Navigation Data
129539 GNSS DOPs
129540 GNSS Sats in View
129545 GNSS RAIM Output
129549 DGNSS Corrections
129551 GNSS Differential Correction Receiver Signal
129793 AIS UTC and Date Report
129794 AIS Class A Static and Voyage Related Data
129798 AIS SAR Aircraft Position Report
129799 Radio Frequency / Mode / Power
129801 AIS Addressed Safety Related Message
129802 AIS Safety Related Broadcast Message
129808 DSC Call Information
129809 AIS Class B “CS” Static Data Report, Part A
129810 AIS Class B “CS” Static Data Report, Part B
130060 Label
130074 Route and WP Service - WP List - WP Name & Position
130306 Wind Data
130310 Environmental Parameters
130311 Environmental Parameters
130312 Temperature
130313 Humidity
130314 Actual Pressure
130316 Temperature, Extended Range
130330 Lighting System Settings
130561 Lighting Zone Settings
130562 Lighting Scene Settings
130563 Lighting Device Settings
130564 Lighting Device Enumeration
130565 Lighting Color Sequences
130566 Lighting Programs
130569 Entertainment - Current File and Status
130570 Entertainment - Library Data File
130571 Entertainment - Library Data Group
130572 Entertainment - Library Data Search
130573 Entertainment - Supported Source Data
130574 Entertainment - Supported Zone Data
130576 Small Craft Status
130577 Direction Data
130578 Vessel Speed Components
130579 Entertainment - System Configuration Status
130580 Entertainment - System Configuration Status
130581 Entertainment - Zone Configuration Status
130582 Entertainment - Zone Volume Status
130583 Entertainment - Available Audio EQ Presets
130584 Entertainment - Bluetooth® Devices
130585 Entertainment - Bluetooth® Source Status

NMEA 2000® PGN (Transmit)

60160 ISO Transport Protocol, Data Transfer
60416 ISO Transport Protocol, Connection M
126208 ISO Command Group Function
126464 Transmit/Receive Supported PGN List
126992 System Time
126993 Heartbeat
126996 Product Info
127237 Heading/Track Control
127250 Vessel Heading
127258 Magnetic Variation
127502 Switch Bank Control
128259 Speed, Water referenced
128267 Water Depth
128275 Distance Log
129025 Position, Rapid Update
129026 COG & SOG, Rapid Update
129029 GNSS Position Data
129283 Cross Track Error
129285 Navigation - Route/WP Information
129284 Navigation Data
129285 Route/Waypoint Data
129539 GNSS DOPs
129540 GNSS Sats in View
130074 Route and WP Service - WP List - WP Name & Position
130306 Wind Data
130310 Environmental Parameters
130311 Environmental Parameters
130312 Temperature
130577 Direction Data
130578 Vessel Speed Components
