Actisense Isolated USB To Serial Gateway

Part No:
A-USG-2
POA

Overview

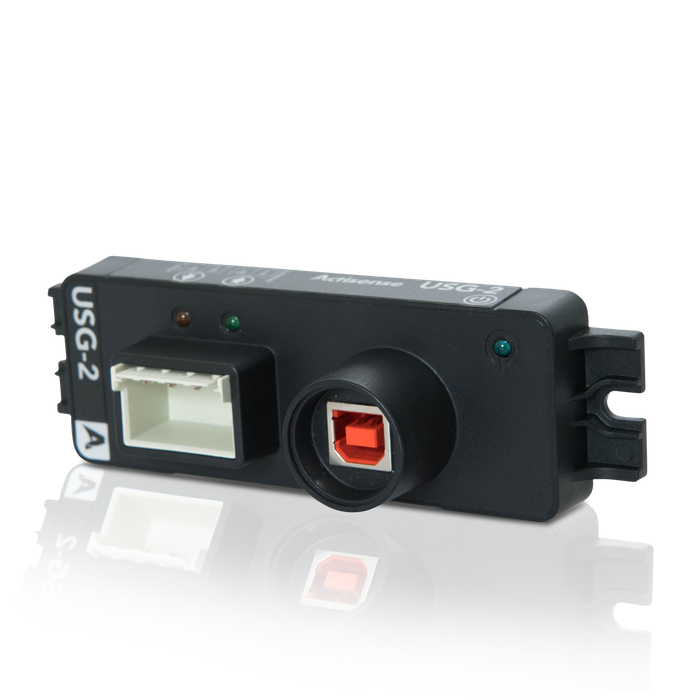

USG-2 USB to Serial Gateway
The USG-2 ensures safety and reliability when connecting a PC to your NMEA 0183 network.
The USG-2 converts a USB port into a bi-directional serial port suitable for connecting to a marine standard NMEA 0183 data bus.

USG-2 USB to Serial Gateway

The USG-2 ensures safety and reliability when connecting a PC to your NMEA 0183 network.

The USG-2 converts a USB port into a bi-directional serial port suitable for connecting to a marine standard NMEA 0183 data bus.


Power Supply (USB)
Power Source Bus powered
Maximum Bus Current 50mA
NMEA 0183 Port – Talker & Listener
Number of Listener/Input Ports One isolated NMEA 0183 Listener
Number of Talker/Output ports One isolated NMEA 0183 Talker
Compatibility Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible
Galvanic Isolation NMEA 0183 Talker and Listener Isolation
Speed/ Baud Rate 4800 to 230400 bps / baud
Connectivity Pluggable screwless connector with locking latch and integrated push-button. Utilises cage clamp for 12 to 24 AWG wires (both solid and stranded)
Talker output voltage drive >2.0V (differential) into 100Ω
Talker output current drive 20mA max.
Talker output protection Short circuit and ESD
Listener input voltage tolerance -15V to +15V continuous
Listener input protection Current limited, overdrive protection to 40V DC and ESD protection
USB Port
Compatibility USB 1.1, 2.0 and 3.0
Speed/ Baud Rate 300 to 230400 Baud
Connectivity High retention type-B receptacle (supplied cable includes a custom USB Type-B sealing plug)
Withdrawal Force 1.5Kg
Drivers (Latest OS) Windows XP, Vista, 7, 8, 10,11 & MAC OS X supplied on CD & Actisense website
Mechanical
Materials Housing – ABS (PA-765), flame retardant to UL94 V-0
  PCB encapsulant – polyurethane, flame retardant to UL94 V-0
  Pluggable screwless connector – PPA-GF with CrNi spring and tin plated Ecu contacts
Mounting Bulkhead mount (s/s self tapping screws included) or optional DIN rail mount kit available
Weight Main body 65g, USB cable 70g
USB cable length 2.0m shielded USB Type-A to Type-B cable including custom USB Type-B sealing plug
Approval & Certifications
EMC EN 60945 (sections 9 & 10)
Environmental protection IP67 (Encapsulated electronics)
Operating temperature -25°C to +70°C
Storage temperature -40°C to +85°C
Relative Humidity (RH) 0 to 93% RH
Guarantee 3 years (5 Years if registered)
