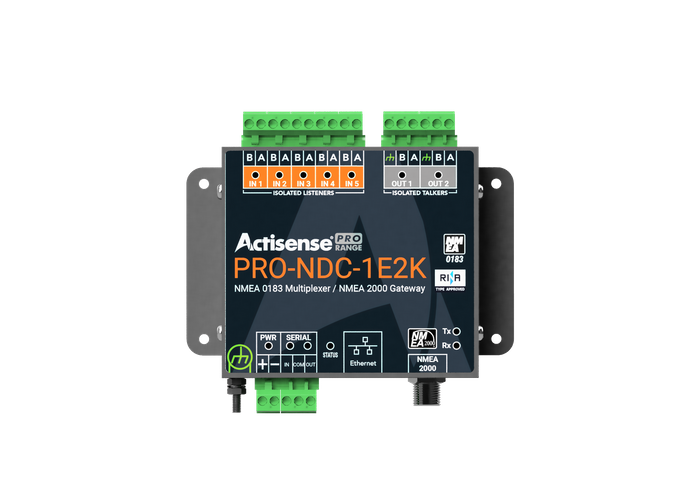

Actisense Professional NMEA Mux with N2K
Part No:
A-PRO-NDC-1E2K
POA
Overview
5 inputs and 2 ISO-Drive outputs, Ethernet, NMEA 2000 and serial connections
PRO-NDC-1E2K Intelligent Type Approved NMEA 0183 Multiplexer / NMEA 2000 Gateway
Interconnectivity, reimagined!
The PRO-NDC-1E2K is much more than an NMEA 0183 Multiplexer…
Rugged, Robust, Type Approved Multiplexer with built-in NMEA 2000 connectivity, high-speed Ethernet streaming of data, flexible configuration, auto-switching and sentence level filtering.
PRO-NDC-1E2K Intelligent Type Approved NMEA 0183 Multiplexer / NMEA 2000 Gateway
Interconnectivity, reimagined!
The PRO-NDC-1E2K is much more than an NMEA 0183 Multiplexer…
Rugged, Robust, Type Approved Multiplexer with built-in NMEA 2000 connectivity, high-speed Ethernet streaming of data, flexible configuration, auto-switching and sentence level filtering.
Managing and routing your NMEA data is straight forward, hassle free using the PRO-NDC-1E2K;
- Auto-switching between inputs to allow for a primary, secondary, tertiary priority input.
- Configurable baud rates to allow 38400 and 4800 baud devices to operate through the same multiplexer.
- Sentence filtering to block unwanted sentences from specific outputs helps to limit bandwidth consumption.
- Easy to configure using the web based UI, no need to manually enter and edit strings of text.
- RINA type approved device means the multiplexer is fit for leisure, commercial and class / type installations.
- Multiple LED’s allow for ‘quick glance’ diagnostics to ensure everything is operating correctly.
- Certified NMEA 2000 device connectivity allows for conversion and output of data onto NMEA 2000 network.
- Bi-directional conversion to and from N2K Network allows for seamless integration between legacy and new equipment.
- NMEA 0183 data streaming over Ethernet enables connectivity to existing Ethernet devices and systems.
- NMEA 2000 data streaming over Ethernet.
- 5 OPTO-Isolated NMEA 0183 inputs and 2 ISO-Drive NMEA 0183 outputs provide protection for all connected instruments.
FEATURES
- Type-approved (RINA).
- NMEA 0183 Ethernet streaming
- NMEA 2000 Ethernet streaming
- NMEA 2000 output via M12
- 5x Configurable Opto-isolated NMEA 0183 inputs.
- 2x Configurable ISO-Drive isolated NMEA 0183 outputs.
- 1x Bi-directional, configurable, isolated serial port.
- Automatic baud rate matching on inputs.
- Advanced data filtering / routing.
- Free firmware updates making the device future-proof.
- Diagnostic LEDs on all inputs and outputs.
- Bi-colour status LED.
- Panel mountable.
- Stainless Steel housing for added durability
BENEFITS
- Quick and easy to install
- Configuration using standard web browser, no PC operating system compatibility issues
- Advanced features solve NMEA 0183 data routing problems
- Fully isolated with ISO-Drive technology for peace of mind
- Easy firmware updates make the device future-proof
- Type Approved (RINA)
