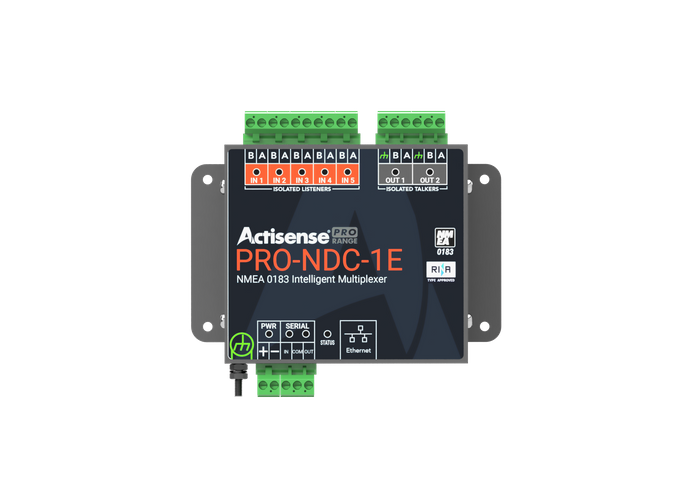

Actisense Professional NMEA Multiplexer 5 inputs and 2 ISO-Drive outputs

Part No:
A-PRO-NDC-1E
POA

Overview

5 inputs and 2 ISO-Drive outputs, Ethernet and serial connections

PRO-NDC-1E Intelligent Type Approved NMEA 0183 Multiplexer
The PRO-NDC-1E is more than just an NMEA 0183 Multiplexer…
Rugged, Robust, Type Approved Multiplexer with powerful, advanced features enable baud rate adjustments, auto-switching and sentence level filtering.

Want to add NMEA 2000 compatibility? Our PRO-NDC-1E2K is now available!

PRO-NDC-1E Intelligent Type Approved NMEA 0183 Multiplexer

The PRO-NDC-1E is more than just an NMEA 0183 Multiplexer…

Rugged, Robust, Type Approved Multiplexer with powerful, advanced features enable baud rate adjustments, auto-switching and sentence level filtering.

Want to add NMEA 2000 compatibility? Our PRO-NDC-1E2K is now available!

Managing and routing your NMEA 0183 data is straight forward, hassle free using the PRO-NDC-1E;

  • Auto-switching between inputs to allow for a primary, secondary, tertiary priority input.
  • Configurable baud rates to allow 38400 and 4800 baud devices to operate through the same multiplexer.
  • Sentence filtering to block unwanted sentences from specific outputs helps to limit bandwidth consumption.
  • Easy to configure using the web based UI, no need to manually enter and edit strings of text.
  • RINA type approved device means the multiplexer is fit for leisure, commercial and class / type installations.
  • Multiple LED’s allow for ‘quick glance’ diagnostics to ensure everything is operating correctly.
  • NMEA 0183 data streaming over Ethernet enables connectivity to existing Ethernet devices and systems.
  • 5 OPTO-Isolated NMEA 0183 inputs and 2 ISO-Drive NMEA 0183 outputs provide protection for all connected instruments.

FEATURES

  • Dedicated bi-directional Serial port (fully isolated utilising ISO-Drive technology)
  • Serial port can be used as additional input / output
  • Ethernet port supports direct and network connection
  • NMEA 0183 streaming via Ethernet
  • Configurable input and output baud rates
  • Allows Data combining and rate conversion
  • 2 independent Autoswitch virtual inputs with priority
  • Isolation to battery supply
  • Diagnostic LED’s
  • Optional DIN rail mount
  • Type Approved

BENEFITS

  • Quick and easy to install
  • Configuration using standard web browser, no PC operating system compatibility issues
  • Advanced features solve NMEA 0183 data routing problems
  • Fully isolated with ISO-Drive technology for peace of mind
  • Easy firmware updates make the device future-proof
