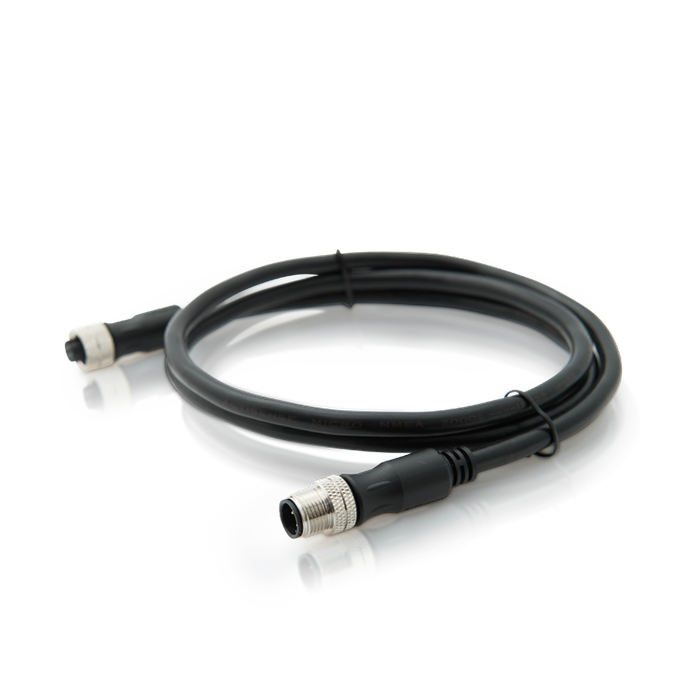

Actisense Micro cable assembly 0.25 metre, UL certified cable
A2K-TDC Trunk and Drop Lite Cable
Available in various lengths, the cable assemblies can be used as either drop cable* from an NMEA 2000 backbone or to extend the length of the backbone cable.
Actisense Lite cable assemblies allow quick installation and come with a quality reassurance as only the Actisense UL certified cable is used.
NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires and a drain wire. The drain wire connects to the cable shield which protects the signal, power and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.
To order the correct cable assembly, please use one of the following product codes:
A2K-TDC-0M25 NMEA 2000 Lite cable assembly 0.25m
A2K-TDC-0M5 NMEA 2000 Lite cable assembly 0.5m
A2K-TDC-1M NMEA 2000 Lite cable assembly 1m
A2K-TDC-2M NMEA 2000 Lite cable assembly 2m
A2K-TDC-3M NMEA 2000 Lite cable assembly 3m
A2K-TDC-4M NMEA 2000 Lite cable assembly 4m
A2K-TDC-5M NMEA 2000 Lite cable assembly 5m
A2K-TDC-6M NMEA 2000 Lite cable assembly 6m
A2K-TDC-8M NMEA 2000 Lite cable assembly 8m
A2K-TDC-10M NMEA 2000 Lite cable assembly 10m
A2K-TDC Trunk and Drop Lite Cable
Available in various lengths, the cable assemblies can be used as either drop cable* from an NMEA 2000 backbone or to extend the length of the backbone cable.
Actisense Lite cable assemblies allow quick installation and come with a quality reassurance as only the Actisense UL certified cable is used.
NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires and a drain wire. The drain wire connects to the cable shield which protects the signal, power and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.
| Electrical | |
| Rated Current | 3A |
| Rated Voltage
|
60VDC
|
| Mechanical | |
| Male Contact | Brass, gold plated |
| Female Contact | Phosphor bronze, gold plated |
| Contact Carrier | PBT, black |
| Contact Polarisation | Standard M12 -“A”- polarisation |
| Mating Thread | M12 |
| Screw Cap | Brass, nickel plated |
| O-Ring Seal | Rubber, black |
| Housing | PVC, black |
| Power Pair | 22 AWG (19 strand tinned copper) |
| Data Pair | 24 AWG (19 strand tinned copper) |
| Drain | 22 AWG (19 strand tinned copper) |
| Braid | 37 AWG (tinned copper) |
| Jacket Material | 0.8mm Nom. PVC, black |
| Jacket Outer Diameter | 6.85mm ±0.254mm |
| Weights | 0.25m: 51g, 0.5m: 67g, |
| 1m: 102g, 2m: 166g, | |
| 5m: 379g, 6m : 447g, | |
|
|
8m: 570g, 10m: 733g
|
| Approvals and Certifications | |
| Protection | IP67 (when mated) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| NMEA 2000 Approved | |
| RoHS Compliant | |
| UL Certified (E137250), (UL1277) | |
