Actisense Micro 4-way T piece

Part No:
A2K-4WT
POA

Overview

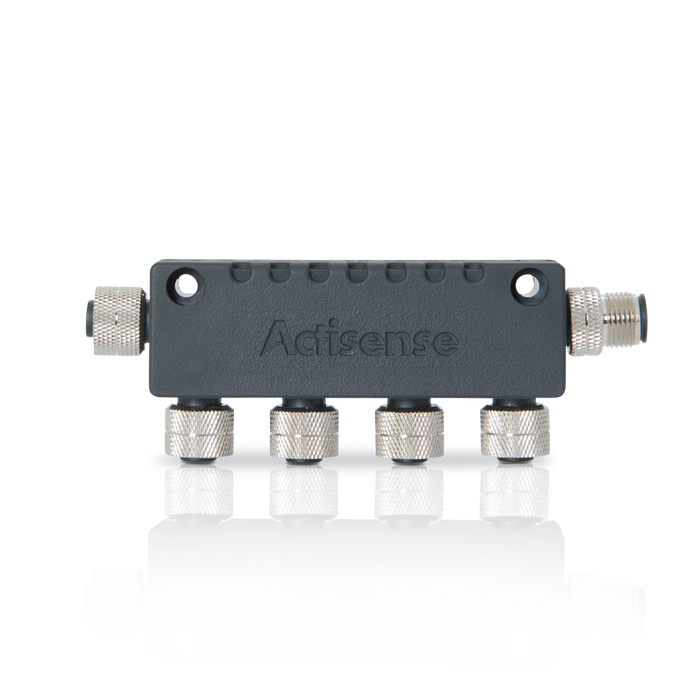

Actisense Micro 4-way T piece

A2K-4WT 4 Way T-Piece
The 4 Way T-Piece from Actisense saves you time, space and money on your NMEA 2000® installation.
The Actisense 4 Way T-Piece is for use where multiple drops or ‘ports’ are required from the NMEA 2000 backbone. It’s as quick and easy to install as a single T-Piece, uses less space than two individual T-pieces and costs less than four.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

The 4 Way T-Piece from Actisense saves you time, space and money on your NMEA 2000® installation.

The Actisense 4 Way T-Piece is for use where multiple drops or ‘ports’ are required from the NMEA 2000 backbone. It’s as quick and easy to install as a single T-Piece, uses less space than two individual T-pieces and costs less than four.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Electrical
Rated Current 4A
Rated Voltage



 60V DC
Mechanical
Male Contact Brass, gold plated
Female Contact Phosphor bronze, gold plated
Contact Carrier PA66 (30% Glass filled), black
Contact Polarisation Standard M12 -“A”- polarisation
Mating Thread M12
Screw Cap Brass, nickel plated
O-Ring Seal Rubber, Black
Housing TPU, flame retardant to UL94V-0, Halogen Free
Internal Housing Shield Copper Foil
Weight



 105g


Approvals and Certifications
NMEA 2000 Approved
RoHS Compliant
Protection IP67 (when mated)
Operating Temperature -20°C to +70°C
Storage Temperature -40°C to +85°C
