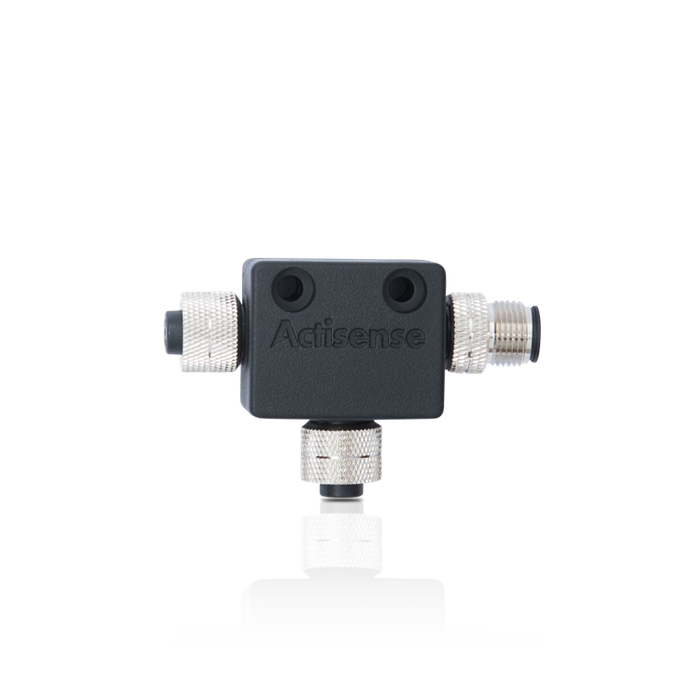

Actisense Micro T piece

Part No:
A2K-T-MFF
POA

Overview

Actisense Micro T piece

A2K-T-MFF Micro T-Piece
Quality engineered connectors shaped to allow easy and secure connections.
Two female and one male connector allow easy connected to Actisense NMEA lite cable assemblies even when field fit connectors are used, making it a totally unique T-piece.

The Actisense NMEA 2000 T-Piece is for use where a drop or ‘port’ is required from the NMEA 2000 backbone to connect another device.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

A2K-T-MFF Micro T-Piece

Quality engineered connectors shaped to allow easy and secure connections.

Two female and one male connector allow easy connected to Actisense NMEA lite cable assemblies even when field fit connectors are used, making it a totally unique T-piece.

The Actisense NMEA 2000 T-Piece is for use where a drop or ‘port’ is required from the NMEA 2000 backbone to connect another device.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.


Electrical
Rated Current 4A
Rated Voltage



60VDC



Mechanical
Male Contact Brass, gold plated
Female Contact Phosphor bronze, gold plated
Contact Carrier PA66 (30% Glass filled), black
Contact Polarisation Standard M12 -“A”- polarisation
Mating Thread M12
Screw Cap Brass, nickel plated
O-Ring Seal Rubber, black
Housing PVC, black
Weight



47g



Approvals and Certifications
NMEA 2000 Approved
RoHS Compliant
UL Certified (UL1277)
Protection IP67 (when mated)
Operating Temperature -25°C to +70°C
Storage Temperature -40°C to +85°C
