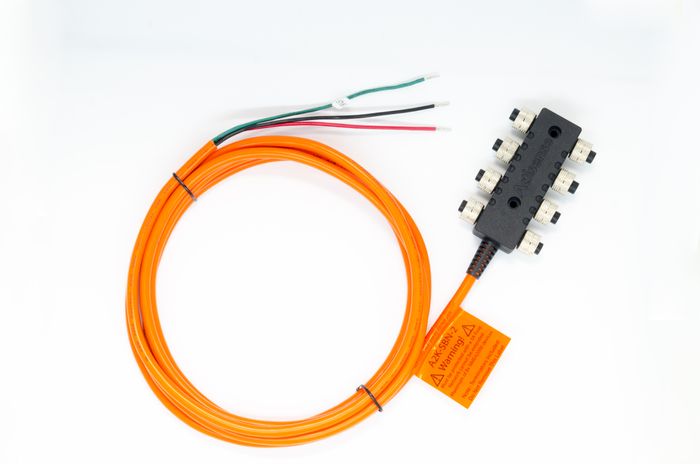

Actisense Self-Contained NMEA2000 Boat Network - 8-WAY

Part No:
A2K-SBN-2
POA

Overview

Actisense Self-Contained Boat Network - complete network for eight devices with internal terminators and power feed.

A2K-SBN-2 8 Way Self-contained Boat Network
Installing small NMEA 2000® networks is quicker and easier than it’s ever been with the Self-contained Boat Network (SBN) from Actisense.
The equivalent of eight T-pieces in a single case provides a significant time and space saving with no more connecting multiple T-pieces together. Termination resistors are built in which increases the saving on time and space.

Once the attached 3 metre cable is connected to the boats power supply, an NMEA 2000 network for up to eight devices is ready to use, taking ‘plug & play’ to the next level.

Ordering information
(Part number)

A2K-SBN-2
Looking to have a network with less than eight devices? Try our SBN-1 for up to 4 devices!

FEATURES

  • Self-contained NMEA 2000 Network
  • Integrated Termination Resistors
  • 8x NMEA 2000 drops
  • Ruggedized, flame retardant over-moulded housing
  • Metal coupling nuts
  • Integrated EMI Shield
  • Orange, UL Rated, 3-meter power cable
  • Colour coded wires, stripped and tinned

BENEFITS

  • Low cost, quick to install, and provides an easy way to connect multiple NMEA 2000 devices
  • Simple installation, fewer components, more reliable, lower cost
  • Accommodates the vast majority of compact NMEA 2000 networks
  • Suitable for wet and harsh conditions- highly desirable in marine environments
  • Reliable, long lasting connections
  • Less likely to be susceptible to interference
  • UL rated cable provide peace of mind. Colour easily differentiates the power cable form drop cables
  • Quick installation, no special tools required

Ordering information

Electrical
Rated Current 3 A
Rated Voltage 60 V (AC/DC)
Internal Termination Resistors



2 x 120Ω 250mW



Mechanical
Female Contact Phosphor bronze, gold plated
Contact Carrier PA66 (30% Glass filled), black
Contact Polarisation Standard M12 – “A” – polarisation
Mating Thread M12
Screw Cap Brass, nickel plated
O-Ring Seal Rubber, black
Housing TPU (Halogen Free) over Epoxy filled PBT housing
Flammability rating UL94 V-0
Internal Housing Shield Copper foil
Cable Jacket Material 0.8mm Nom. PVC, orange
Cable Outer Diameter 6.8mm
Cable Length 3m
Wire Length 150mm (10mm stripped and tinned)
Wire Jacket PVC, Red & Black
Wires 16 AWG (stripped and tinned)
Drain 18 AWG (34 strand tinned copper)
Cable Shield Al-mylar
Weight



410g



Approvals and Certifications
NMEA 2000®Approved
RoHS Compliant
UL Certified Cable (E129757)
Protection IP67 (when mated)
Operating Temperature -25°C to +70°C
Storage Temperature -40°C to +85°C
