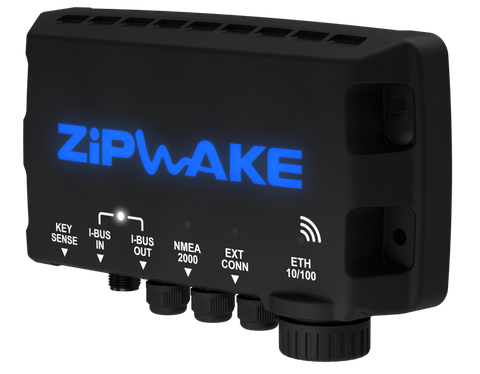

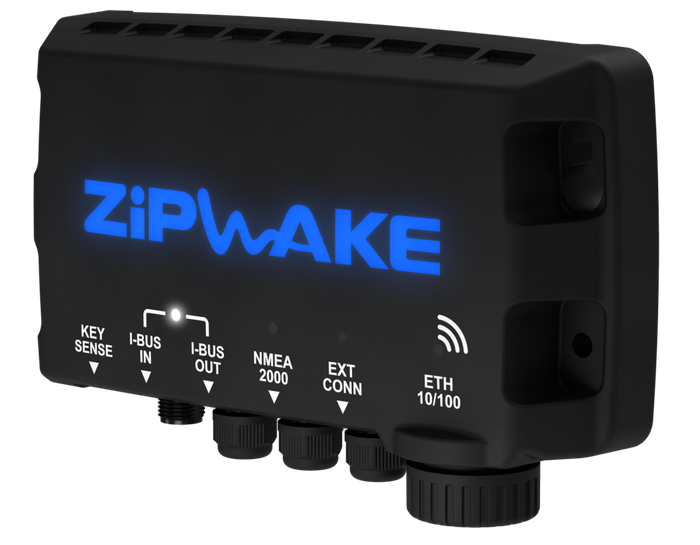

ZIPWAKE INTEGRATOR MODULE

Part No:
2012241
POA

Overview

FUTURE-PROOF YOUR BOAT
Zipwake has been revolutionizing boating since day one, starting with the release of our Dynamic Trim Control Solution. Now we’ve done it again. As boat designs trend toward clean dashboards, larger displays, more flexibility and increased system integration, Zipwake’s new Integrator Module gives boat owners a future-proof solution.

SEAMLESS INTEGRATION
Create your perfect set-up. The Integrator Module seamlessly connects the Zipwake system to multiple MFDs from different manufacturers – and even connects wirelessly to smart devices – keeping dashboards free of clutter. But it also offers the flexibility of connecting up to 3 control panels for operation via control wheels in addition to touch screens. A CAN interface enables further external system integration.

WIRELESS CONNECTIVITY
For even greater control, the Integrator Module’s wireless interface lets you configure, operate, monitor, and update the system wirelessly via the Zipwake app on your smartphone or tablet.

EASY TO INSTALL – ANYWHERE
Just slightly bigger than a postcard, the discreet Integrator Module is easy to install behind the helm/dash, on the flybridge or in the engine room. It’s waterproof and comes with a special ethernet connector collar that makes sealing standard ethernet cables easy. A single cable connects the unit to an MFD.

  • Fully automatic dynamic pitch and roll control
  • Steering and turn enhancement
  • Motion sensors and magnetic compass
  • Instant state user feedback
  • Auto power on/off via ignition key sense
  • Waterproof design
  • RGB Led status indicators for each interface
  • Wireless upgradable via smartphones/tablets
  • Supports up to three additional Control Panels in the system
  • Compatible with all Zipwake system components
  • Manages installation configurations from 1 up to 6 Series-E dual-servo interceptors or any mix with single-servo interceptors
  • Allows configuration of interceptor pair function
  • 3D Gyro & accelerometers
  • Monitored and/or controlled from external devices like MFD/Smartphones/Tablets and Plotters via NMEA 2000 interface

SPECIFICATIONS





MODEL IM
INDICATORS
RGB LEDS FOR EACH COMMUNICATION INTERFACE (X4) RGB BACKLIT LOGO
INTERNAL SENSORS 3D GYRO, 3D ACCELEROMETER, COMPASS
SUPPLY VOLTAGE

12 - 32 V DC
POWER CONSUMPTION
4 W MAX
 OPERATING TEMPERATURE
-20° TO +85°C (-4° TO +185°F)
STORAGE TEMPERATURE -40° TO +90°C (-40° TO +194°F)

WATERPROOF RATING
IP67
 COMPASS SAFE DISTANCE
0.5 M (1.7 FT)
COMPLIANCE CE, FCC, SAE J1171 IGNITION PROTECTED

WEIGHT
0.35 KG (0.77 LBS)
