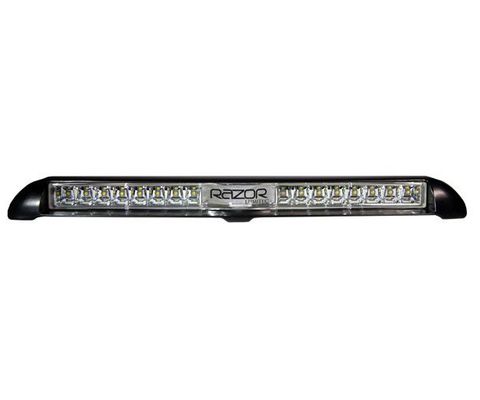

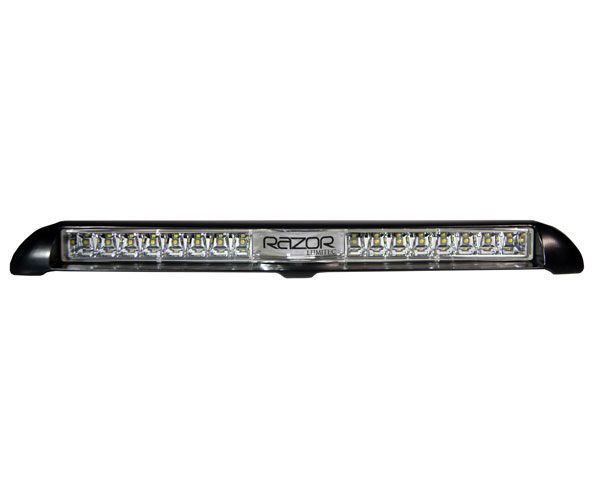

RAZOR LED LIGHT BAR (BLK) - FLOOD

Part No:
101588
POA

Overview

Razor LED Light Bar - Flood
SKU 101588

Sleek. Streamlined. Powerful. Introducing Razor - The World’s FIRST flush-mount light bar. Razor was carefully designed to be easily integrated into most existing hardtop, arch, and pilothouse designs – typically with only minor modification to production tooling. When mounted facing forward, Razor’s long-throw and high position are invaluable for spotting markers and obstructions. When positioned downward and aft, Razor floods cockpits, gunwales and surrounding areas with more than 10,000 night-piercing lumens. In addition to clean lines and a low profile, following Lumitec’s thermally-vetted reference designs allows OEMs to avoid the overheating and subsequent damage to hardtops that can be caused by enclosing other manufacturer’s light bars in a ‘pod’. Razor is also available in a surface-mount configuration, which mounts directly to un-modified hardtop surfaces and allows for an equally clean look and similar thermal performance. Two beam patterns ensure the light goes where you need it.

Razor LED Light Bar - Flood

SKU

101588

Sleek. Streamlined. Powerful. Introducing Razor - The World’s FIRST flush-mount light bar. Razor was carefully designed to be easily integrated into most existing hardtop, arch, and pilothouse designs – typically with only minor modification to production tooling. When mounted facing forward, Razor’s long-throw and high position are invaluable for spotting markers and obstructions. When positioned downward and aft, Razor floods cockpits, gunwales and surrounding areas with more than 10,000 night-piercing lumens. In addition to clean lines and a low profile, following Lumitec’s thermally-vetted reference designs allows OEMs to avoid the overheating and subsequent damage to hardtops that can be caused by enclosing other manufacturer’s light bars in a ‘pod’. Razor is also available in a surface-mount configuration, which mounts directly to un-modified hardtop surfaces and allows for an equally clean look and similar thermal performance. Two beam patterns ensure the light goes where you need it.
Product Name Razor LED Light Bar - Flood
12v DC Amps 9A
24v DC Amps 4.2
Correlated Corrected Temperature (CCT) 5000
CE Certified Yes
Color Match Commitment (CM) Yes
Color Output White, Dimming
Color Rendering Index (CRI) 70+
Depth 3.5in (8.89 cm)
Finish / Housing Black - Flood
Height 1.5in (3.81 cm)
IP Rating 67
Lumens 10,000
Op. Temp F/C F/C-31/35 to + 131/55
PLI Enabled Yes
Related Watts 108W
Third Party Dimmer Compatibility (3PD) No
Timed Toggled Protocol (TTP) Yes
Voltage 10-30 vDC
Width 18in (45.72cm
