PICO S8 EXPANSION MODULE

Part No:
101684
POA

Overview

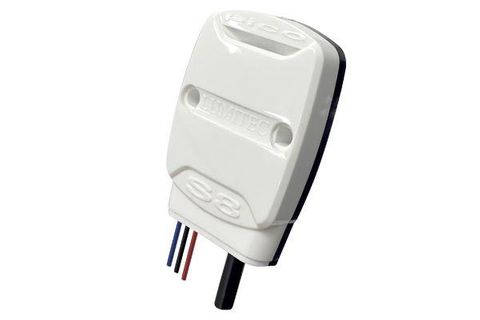

Pico S8 Expansion Module
SKU 101684
Pico Expansion Modules extend the power and reach of the Poco Digital Lighting Control system making it possible to control other manufacturers’ luminaires, lighting accessories and devices that do not have the sophisticated PLI technology built-in.

The Pico S8 moudule provides the ability to assign Poco virtual switch commands to physical mechanical switches (up to 8 max). This means that your MFD can remain on a dedicated screen, or even be turned off, and a physical switch will activate the virtual switch command through the Poco module.

Pico S8 Expansion Module

SKU

101684

Pico Expansion Modules extend the power and reach of the Poco Digital Lighting Control system making it possible to control other manufacturers’ luminaires, lighting accessories and devices that do not have the sophisticated PLI technology built-in.

The Pico S8 moudule provides the ability to assign Poco virtual switch commands to physical mechanical switches (up to 8 max). This means that your MFD can remain on a dedicated screen, or even be turned off, and a physical switch will activate the virtual switch command through the Poco module.

Product Name Pico S8 Expansion Module
CE Certified Yes
Depth 0.52 in (1.32cm)
Finish / Housing White
Height 2.6 in (6.60cm)
IP Rating 67
Max Amp/ch 0.25A
Number of Channels 8
Op. Temp F/C -31/35 to + 131/55
PLI Enabled Yes
Sub Category Pico Expansion Modules
Timed Toggled Protocol (TTP) Yes
UL Certified No
Voltage 10vDC-30vDC
Width 1.9 in (4.82cm)
