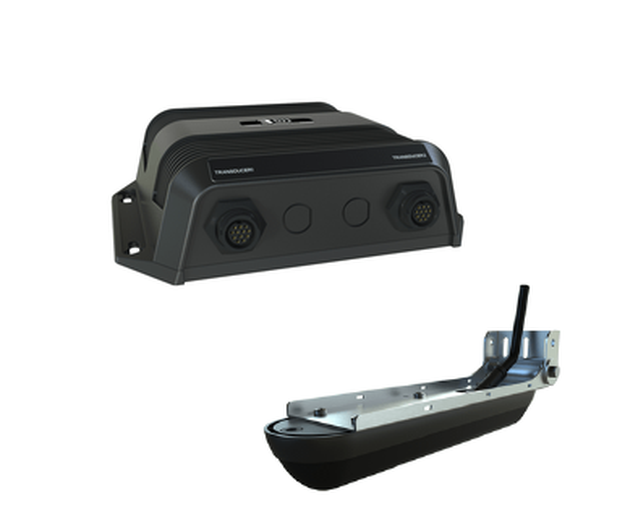

STRUCTURESCAN 3D XDCR AND MODULE

Part No:
000-12395-001
POA

Overview

StructureScan® 3D provides a new and easy way to view and interpret StructureScan® HD Imaging data.

StructureScan® 3D allows anglers to see fish, structure and bottom contour in a stunning three-dimensional view. StructureScan® 3D imaging scans underwater terrain and fish-holding structure to create a high-resolution, 180-degree, three-dimensional view beneath your boat. With this unique imaging view, anglers gain a better understanding of where fish and structure are located in relation to their boat.

Easier Visualization
3D visualizations can be viewed from any angle with ScanTrack™ pan-tilt-rotate control using on-screen touch gestures and easy-to-use, preset viewing positions.

Master The Bottom Line
For the first time, StructureScan® 3D allows anglers to easily see all underwater fish-holding structure and the fish as if they were fishing underwater. Eliminate confusion when fish aren’t on the banks and in shallow, visible cover. Now, a slow idle over a potential area quickly lets you master bottom contours, identify a vertical break or secondary point, and catch more fish in and near the main deep water channel.

StructureScan® 3D provides a new and easy way to view and interpret StructureScan® HD Imaging data.

StructureScan® 3D allows anglers to see fish, structure and bottom contour in a stunning three-dimensional view. StructureScan® 3D imaging scans underwater terrain and fish-holding structure to create a high-resolution, 180-degree, three-dimensional view beneath your boat. With this unique imaging view, anglers gain a better understanding of where fish and structure are located in relation to their boat.

Easier Visualization

  • 3D visualizations can be viewed from any angle with ScanTrack™ pan-tilt-rotate control using on-screen touch gestures and easy-to-use, preset viewing positions.

Master The Bottom Line

  • For the first time, StructureScan® 3D allows anglers to easily see all underwater fish-holding structure and the fish as if they were fishing underwater. Eliminate confusion when fish aren’t on the banks and in shallow, visible cover. Now, a slow idle over a potential area quickly lets you master bottom contours, identify a vertical break or secondary point, and catch more fish in and near the main deep water channel.

Technical/Environmental

Product Width 180 mm / 7.1 in
Product Height 57 mm / 2.2 in
Product Weight 0.9 kg / 2 lbs
Operating Temperature -28° to 75° C (-20° to 167° F)
Water Resistance 1PX-7
Power Supply (Supply Voltage) 12 or 24 V DC(max range 9 V to 32 V DC)

Sonar Performance

StructureScan

Output Power 500w RMS
Max Side Range 600ft each side
Max Down Range 300 ft
Frequency 455 & 800kHz

Six Cable Connections

Ethernet 3 ports
Power 4 Pin power connector
Transducer Port 1 Black 12 pin connector for use with StructureScan 3D Transducer Cable 1
Transducer Port 2 Black 12 pin connector for use with StructureScan 3D Transducer Cable 2
