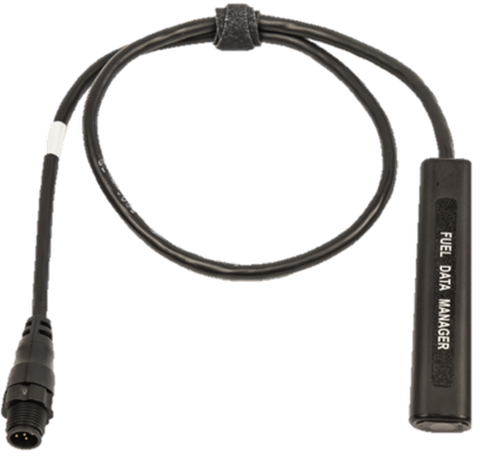

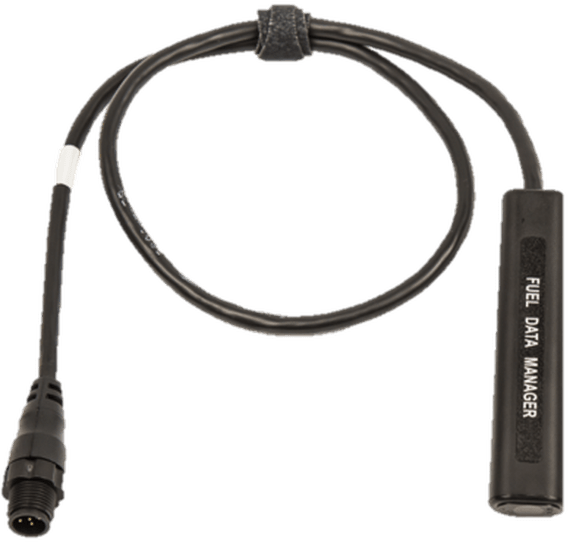

FUEL DATA MANAGER

Part No:
000-11522-001
POA

Overview

Fuel Data Manager - Monitors Fuel Rate/Fuel Flow from NMEA 2000 engines and fuel flow sensors, and accumulates Fuel Rate into Fuel Used. Outputs seasonal, trip and total fuel used.
Part Number: 000-11522-001

Monitors Fuel Rate/Fuel Flow from NMEA 2000 engines, and accumulates Fuel Rate into Fuel Used.
Outputs: Seasonal/Trip/Total Fuel Used.
Will report accurate Vessel Fuel Remaining if MFD Fuel screen is maintained at every refuel.
One sensor will monitor up to 3 engines.
Additional Fuel Data Managers can be added for more engines.
Will monitor fuel rates from multiple engines transmitting through a single gateway.

Fuel Data Manager

  • Monitors Fuel Rate/Fuel Flow from NMEA 2000 engines, and accumulates Fuel Rate into Fuel Used
  • Outputs: Seasonal/Trip/Total Fuel Used
  • Will report accurate Vessel Fuel Remaining if MFD Fuel screen is maintained at

every refuel

  • One sensor will monitor up to 3 engines
  • Additional Fuel Data Managers can be added for more engines
  • Will monitor fuel rates from multiple engines transmitting through a single gateway

PGNs

55904 ISO Request
60928 ISO Address Claim
59392 ISO Acknowledgement
126996 Product Information
127489 Engine Parameters, Dynamic
