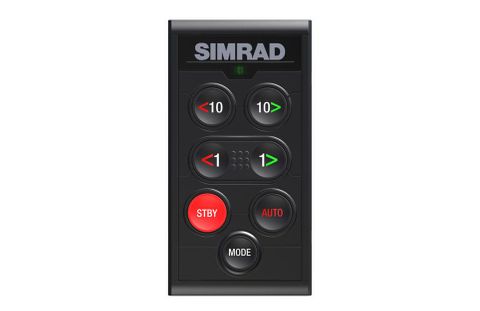

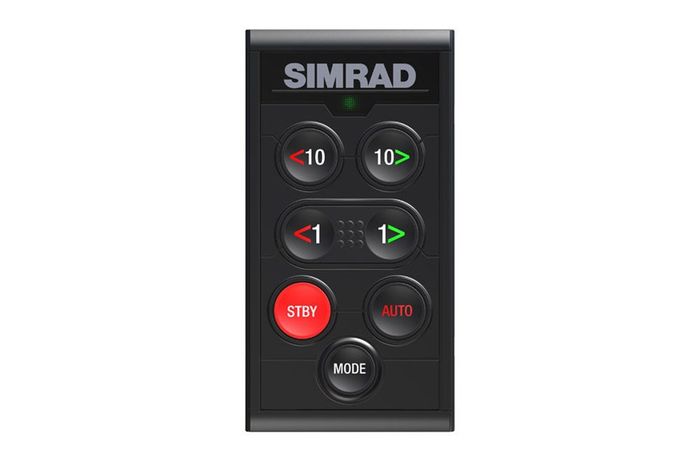

OP12 AUTOPILOT CONTROLLER

Part No:
000-13287-001
POA

Overview

The OP12 wired remote can be paired with the IS42 Digital Display to create a standalone autopilot controller, or used as a dedicated autopilot keypad for Simrad multifunction displays. This keypad complements the low-profile design of our glass bridge instruments and displays, and seamlessly integrates with any helm design.

Key Features

  • Intuitive operation with waterproof silicon keys
  • Easy installation with just one NMEA2000 cable
  • Combine with an IS42 display for full autopilot control
  • Low-profile glass helm design
Dimensions: 60 x 115 x 32mm (2.4 x 4.5 x 1.3”)
Weight: 0.12 kg (0.3 lbs)
Power Consumption: 1.4 Watts
Network Load: 3 LEN
Colour: Black
Environmental Protection, Waterproof: Waterproof rating:  IPx7
Environmental Protection, Humidity: Up to 95% RH
Compass Safe Distance: 300mm (1.0”)
Temperature Operating: -15 to +55ºC (5ºF to +131ºF)
Temperature Storage: -30 to +70 ºC (-22 to +158 ºF)
