eSYSTEM BOARD 40A AC 40A DCDC INC SIMARINE

Part No:
eSYS-D
POA

Overview

ENERDRIVE eSYSTEM RANGE

eSYS-D

Introducing Enerdrives DIY Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more.

Enerdrive have created many different layouts and dimensional sizes to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. From small kits with AC & DC charging and battery monitoring up to kits with 2000w inverters and individual charge/load monitoring.

These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.

Enerdrive also have you covered from a service and support angle with the DIY Installation kits. Designed, constructed and pre-wired by Enerdrive, we know exactly the layout and wiring of your kit so any fault finding or support can be given quickly and concisely.

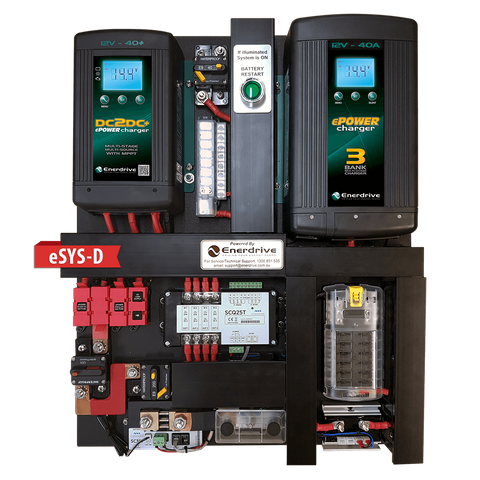

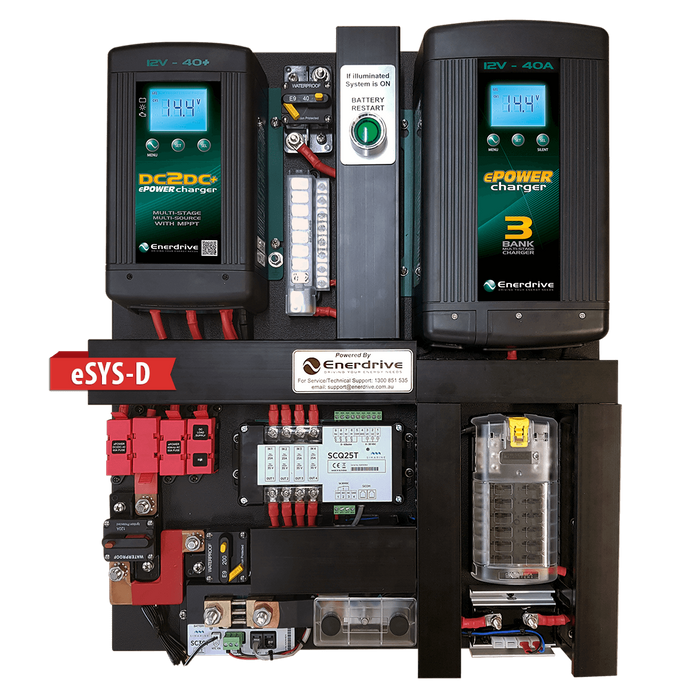

eSYS-D

  • 600W x 490H x 100Dmm
  • Charge via a Vehicle input, Solar or Mains
    power;
    • Vehicle: 12 or 24v input, up to 50A Charging
    • Solar (DC2DC): up to 45VOC / 800W
    • Mains 240V: 40A Charging
  • Simarine Battery Monitor
  • Lithium low battery reset button (12V start
    battery input only)

ENERDRIVE eSYSTEM RANGE - SPECIFICATIONS

PROPERTIES ESYS-D
ePOWER AC 40Amp 230v Charger ✓
ePOWER AC 60Amp 230v Charger
ePOWER AC 100Amp 230v Charger
ePOWER DC2DC 40+ Charger (Vehicle/Solar) ✓
ePOWER DC2DC 30Amp 24V Charger (Vehicle/Solar)
Morningstar Tristar PWM-45A Solar Controller
Enerdrive Epower MPPT 40A Solar Controller
ePRO Plus 500A Battery Monitor with Remote Display
Simarine Pico LCD WIFI Monitoring Screen ✓
Simarine SC303 300A Main Battery Shunt ✓
Simarine SCQ25T Individual Load/Charge Module ✓
Simarine SCQ50 Individual Load/Charge Module
Simarine ST107 Tank Monitoring Module
Inverter Breaker 200A (Pre Wired Inverter Supply
Battery Restart Switch (Lithium Batteries) ✓
24hr Critical Load Distribution Fuse Block ✓
Main Load Distribution Fuse Block ✓
ePOWER 2000W AC Transfer Inverter
ePOWER 2600W AC Transfer Inverter
Dimensions 600W x 490H x 100Dmm

(✓) Indicates standard Fitment
(#) Indicates optional fitment
