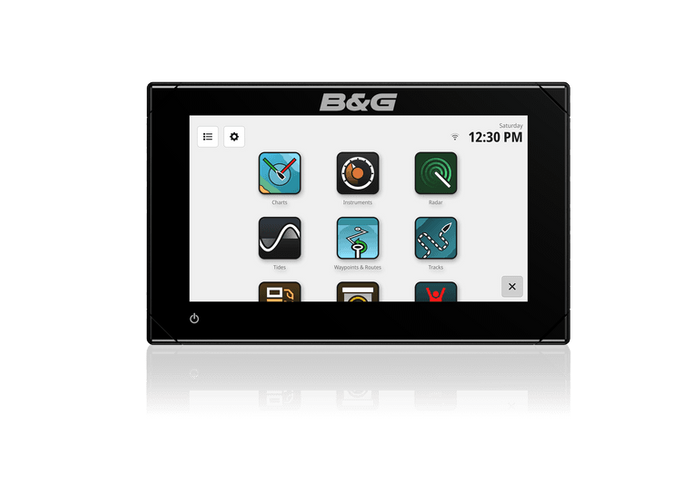

B&G ZEUS S 7 CHARTPLOTTER GLOBAL

Part No:
000-15217-001
POA

Overview

B&G Zeus S 7 Chartplotter GLOBAL. 7-inch SolarMAX™ high definition display. Built-in GPS, and WIFI, 1 kW echosounder. Unique Sailing Modes and enhanced sailing features. A next-generation C-MAP® DISCOVER™ X or REVEAL X™ chart card is required.

Key Features

  • Features support for the new marine-optimized C-MAP® DISCOVER™ X and C-MAP REVEAL™ X charts with a fresh, intuitive chart presentation and daily updates
  • High-definition IPS touch screen with extreme viewing angles, viewable through polarized lenses
  • Full integration with the capability to expand the system with Simrad® radar, autopilot, and more
  • Faster Autorouting with seamless accessibility
  • Stay on course with full Simrad® autopilot integration
  • Modern and straightforward interface
  • B&G App integration – keep your chart data at your fingertips, both on and off the water
  • Third-party app integration
  • Wireless connectivity, plus Ethernet and NMEA 2000® networking capability
  • IP Video Support

NEW SAILING MODES

See the data you need, when you need it. Simply select your Sailing Mode for your situation, giving you just the information you need for Cruising or Racing.

DEDICATED SAILING FEATURES

Improve your sailing with easy to interpret pointers from B&G®’s award-winning sailing features for cruising and racing, with updates to SailSteer™, Laylines, StartLine, Routes, Racing and many more. C-MAP® powered Safety Alerts guard against grounding and dangerous objects.

DETAILED C-MAP® CHARTS

C-MAP DISCOVER™ X and REVEAL™ X charts feature highly accurate data with simple viewing options for easy and clear navigation. Tides and currents projections improve trip planning and route plotting, further supported by our fastest-ever autorouting. Plus, get quick, one-touch access to POIs, tides, channels, and more.

EASY INTEGRATION

Put your Zeus® S at the heart of a complete sailing system with easy integration. With NMEA 2000®, you can connect to Autopilot, Instruments, Radar, Sailing Processors, Audio, Engines, and a wealth of other compatible products. Zeus S also integrates easily with the B&G App, letting you plan trips, review routes, and manage waypoints from home, then sync the moment you step onboard.

INTUITIVE INTERFACE

Across the device, our new and intuitive interface is designed to feel familiar. Zeus S boasts a handy Setup Wizard to get you started, and ongoing tips to help you get the most from your Zeus S Chartplotter and networked equipment.

Display

Size and Type 7" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses
Resolution 1024 x 600 px
Viewing Angles 85° (top, bottom, left, and right)
Screen Brightness >1200 nits
Backlight Color White
Supply Voltage 12 V DC (10 - 17 V DC min - max)

Power

Power Consumption max 11.5 W (830 mA at 13.8 V).
Recommended Fuse Rating 2A

Physical

Dimensions W x H x D With bracket: W: 220 mm (8.66") x H: 145.9 mm (5.74") x D: 79.5 mm (3.13") No bracket, no suncover: W: 195 mm (7.68") x H: 123.0 mm (4.84") x D: 79.5 mm (3.13") No bracket, with suncover: W: 199.9 mm (7.87") x H: 127.9 mm (5.04") x D: 84.5 mm (3.32")
Weight 0.8 kg (1.7 lbs)
MountingType Bracket (supplied), panel mount or flush mount
Compass Safe Distance 50 cm (1.7 ft)

Environmental

Operating Temperature Range -15°C to 55°C (5°F to 131°F)
Storage Temperature Range -20°C to 60°C (-4°F to 140°F)
Waterproof rating IPx6 and IPx7
Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
Shock Vibration 100,000 cycles of 20 G

Interface and connections

Interface Multi-touch screen
Sonar Compatibility One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging

NMEA 2000 PGN supported: Receive only

  • 59392 ISO Acknowledgement
  • 59904 ISO Request
  • 60160 ISO Transport Protocol, Data Transfer
  • 60416 ISO Transport Protocol, Connection M.
  • 65240 ISO Commanded Address
  • 60928 ISO Address Claim
  • 126208 ISO Command Group Function
  • 126992 System Time
  • 126996 Product Info
  • 126998 Configuration Information
  • 127233 Man Overboard Notification (MOB)
  • 127237 Heading/Track Control
  • 127245 Rudder
  • 127250 Vessel Heading
  • 127251 Rate of Turn
  • 127252 Heave
  • 127257 Attitude
  • 127258 Magnetic Variation
  • 127488 Engine Parameters, Rapid Update
  • 127489 Engine Parameters, Dynamic
  • 127493 Transmission Parameters, Dynamic
  • 127500 Load Controller Connection State / Control
  • 127501 Binary Status Report
  • 127503 AC input status
  • 127504 AC Output Status
  • 127505 Fluid Level
  • 127506 DC Detailed Status
  • 127507 Charger Status
  • 127508 Battery Status
  • 127509 Inverter Status
  • 128259 Speed, Water referenced
  • 128267 Water Depth
  • 128275 Distance Log
  • 129025 Position, Rapid Update
  • 129026 COG & SOG, Rapid Update
  • 129029 GNSS Position Data
  • 129033 Time & Date
  • 129038 AIS Class A Position Report
  • 129039 AIS Class B Position Report
  • 129040 AIS Class B Extended Position Report
  • 129041 AIS aids to Navigation
  • 129283 Cross Track Error
  • 129284 Navigation Data
  • 129539 GNSS DOPs
  • 129540 AIS Class B Extended Position Report
  • 129545 GNSS RAIM Output
  • 129549 DGNSS Corrections
  • 129551 GNSS Differential Correction Receiver Signal
  • 129793 AIS UTC and Date Report
  • 129794 AIS aids to Navigation
  • 129798 AIS SAR Aircraft Position Report
  • 129801 Cross Track Error
  • 129802 AIS Safety Related Broadcast Message
  • 129283 Cross Track Error
  • 129284 Navigation Data
  • 129539 GNSS DOPs
  • 129540 GNSS Sats in View
  • 129794 AIS Class A Static and Voyage Related Data
  • 129801 AIS Addressed Safety Related Message
  • 129802 AIS Safety Related Broadcast Message
  • 129808 DSC Call Information
  • 129809 AIS Class B “CS” Static Data Report, Part A
  • 129810 AIS Class B “CS” Static Data Report, Part B
  • 130060 Label
  • 130074 Route and WP Service - WP List - WP Name & Position
  • 130306 Wind Data
  • 130310 Environmental Parameters
  • 130311 Environmental Parameters
  • 130312 Temperature
  • 130313 Humidity
  • 130314 Actual Pressure
  • 130316 Temperature, Extended Range
  • 130569 Entertainment - Current File and Status
  • 130570 Entertainment - Library Data File
  • 130571 Entertainment - Library Data Group
  • 130572 Entertainment - Library Data Search
  • 130573 Entertainment - Supported Source Data
  • 130574 Entertainment - Supported Zone Data
  • 130576 Small Craft Status
  • 130577 Direction Data
  • 130578 Vessel Speed Components
  • 130579 Entertainment - System Configuration Status
  • 130580 Entertainment - System Configuration Status
  • 130581 Entertainment - Zone Configuration Status
  • 130582 Entertainment - Zone Volume Status
  • 130583 Entertainment - Available Audio EQ Presets
  • 130584 Entertainment - Bluetooth Devices
  • 130585 Entertainment - Bluetooth Source Status

Transmit

  • 60160 ISO Transport Protocol, Data Transfer
  • 60416 ISO Transport Protocol, Connection M.
  • 126208 ISO Command Group Function
  • 126992 System Time
  • 126993 Heartbeat
  • 126996 Product Info
  • 127237 Heading/Track Control
  • 127250 Vessel Heading
  • 127258 Magnetic Variation
  • 127502 Switch Bank Control
  • 128259 Speed, Water referenced
  • 128267 Water Depth
  • 128275 Distance Log
  • 129025 Position, Rapid Update
  • 129026 COG & SOG, Rapid Update
  • 129029 GNSS Position Data
  • 129283 Cross Track Error
  • 129285 Navigation - Route/WP Information
  • 129284 Navigation Data
  • 129285 Route/Waypoint Data
  • 129539 GNSS DOPs
  • 129540 GNSS Sats in View
  • 130074 Route and WP Service - WP List - WP Name & Position
  • 130306 Wind Data
  • 130310 Environmental Parameters
  • 130311 Environmental Parameters
  • 130312 Temperature
  • 130577 Direction Data
  • 130578 Vessel Speed Components"
Ethernet 1 port (5-pin connector)
NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN
NMEA 0183 No
USB No
External Storage 1 MicroSD slot
GPS Internal, 10Hz, WASS, MSAS, EGNOS
GPS Correction 10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS
GPS Position Accuracy Horizontal Accuracy 3 m (9.8 ft)
GPS Receiver Channels 32 Channels
GPS Update rate 10Hz
J1939 No
ConnectivityPcConnectivity No
WiFi IEEE 802.11b/g/n
Bluetooth Bluetooth 4.0 with support for Bluetooth Classic
Languages English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Italian, Dutch, Norwegian, Portuguese (Brazil), Portuguese (Portugal) Swedish
Charts Supported C-MAP Discover X, C-MAP Reveal X
Radar Compatibility Halo Dome radars
Weather No
AIS Receive AIS data over NMEA 2000
Digital Switching Command DDS, CZone (control bar only on release)

Warranty

Warranty Period 2 Years
