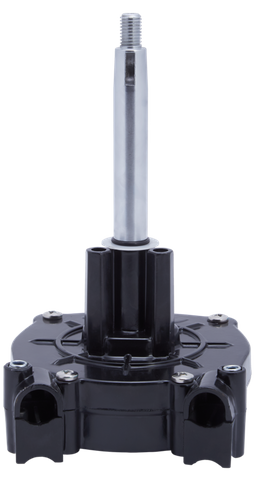

H-101 EASY CONNECT STEERING HELM

Part No:
H1
POA

Overview

The Steering Helm is a gearbox arrangement mounted on the dashboard of the boat. The steering wheel is mounted on the shaft of the helm. This helm is compatible with SeaStar and Teleflex Safe-T Quick Connect steering cables.

MultiFlex Steering Helm features:

Compact Planetary Design
Easy Connection , Quick Installation
Helm Cover: High Pressure Die Cast Aluminium alloy
Powder Coated for enhanced corrosion resistance
Helm Shaft : Galvanized Steel
Standard 3/4 tapered shaft
Fits: All Outboard applications up to 150HP

Download Fact Sheet - H1 Helm

Key Features
• Compact planetary design
• Easy connection, quick installation
• Uses similar mounting footprint to competitors
• Helm cover: high pressure die cast aluminum alloy
• Powder coated for enhanced corrosion
resistance
• Helm shaft: galvanized steel
• Standard 3/4” tapered shaf

Number of Steering Wheel Turns - 4 approximately
Maximum Steering Wheel Diameter - 16 inch (400mm)
Shaft Length - 125mm
Maximum Travel - 9 inch (230mm)
Maximum Bend Radius - 8 inch (200mm)
Maximum Working Load at Tiller end  - 5,000 N (500kg)
