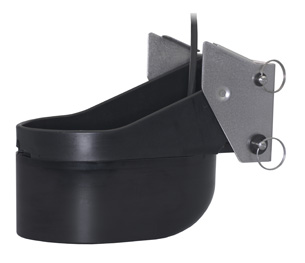

XSONIC TM275LH-W CHIRP T/M TD

Part No:
000-13770-001
POA

Overview

XSONIC TM275LH-W Urethane, Transom-mounted, 42-65 kHz/150-250 kHz Dual Channel CHIRP transducer (Wide Angle): Dual Black 9 pin connectors: Cable length 10 m (33.0 ft)

The TM275LH-W is a urethane, transom-mounted CHIRP transducer, ideal for sportfishing and commercial vessels 8 m (25 ft) and up. This dual-channel transducer combines Low CHIRP frequencies to accurately track the bottom in deep water, with High CHIRP at a constant 25° beam width for the best resolution and coverage in the upper water column and in shallower depths. The TM275C-LHW CHIRP transom-mount transducer has 8 internal, broadband ceramic elements. The low-frequency can be chirped from 42 to 65 kHz while the high-frequency chirps from 130 to 210 kHz. The beamwidth is a wide 25° across all frequencies. Also included is a high-precision water-temperature sensor for accurate sea-surface temperature readings.

Key Features:

42-65 kHz Low CHIRP with 25-16° beam width.
150-250 kHz High CHIRP with wide 25° beam for excellent fish targets.
Up to 1200 m (4000 ft) range with Low CHIRP.
8 internal broadband ceramics.
Transom-mounted with urethane housing and stainless steel mounting bracket (can retrofit to existing TM258 & TM260 brackets).
Suitable for fiberglass, wood and metal hulls.
Ideal for sportfishing and commercial vessels 8 m (25 ft) and up.
Recommended for use with the NSSevo3 and BSM-3 broadband sounder module.

Features

  • Depth and fast-response water-temperature sensor
  • 1 kW for great deep-water performance from the low frequency
  • Low frequency: 42 to 65 kHz
  • 25° to 16° beam
  • Maximum depth of 914 m (3,000')
  • High frequency: 150 to 250 kHz
  • 25° constant beamwidth
  • Maximum depth of 914 m (3,000')
  • 123 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
  • High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
  • High wide beamwidth yields more coverage for detecting fish in the upper-water column
  • Transom mount, urethane transducer
  • Stainless steel, kick-up bracket locks in the “up” position and will not damage the transom



Specifications

  • Weight: 4 kg (8.9 lb.)
  • Recommended Boat Length: 10 m (32') and up
  • Transom Angle: 3° to 21°
  • Acoustic Window: Urethane
  • Includes: Stainless steel bracket and mounting hardware
  • Transducer Element: Eight internal broadband ceramic assemblies
