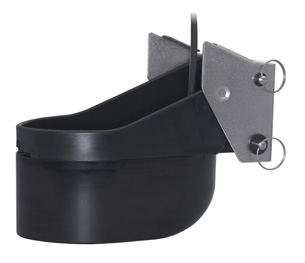

XSONIC TM260 T/M 50/200Khz diplexer

Part No:
000-13904-001
POA

Overview

XSONIC TM260 Plastic transom-mount. 50/200Khz with diplexer. Depth/temp. 50Khz @ 19 deg; 200Khz @ 6 deg. - Black 9 pin connector: Cable length 10 m (33.0 ft)

Powerful, Yet Sensitive! The TM260 takes the legendary performance of the B260 to your vessel’s transom. This top-of-the-line, broadband, transom-mount brings crystal clear imaging to any of today’s fishfinders. The large, 200 kHz element and the seven-element, 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260’s rugged mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).

Features

  • Depth and fast-response water-temperature sensor
  • 1 kW
  • Dual-frequency element:
  • 50 kHz with a 19° beamwidth for depth performance to 800 m (2,600')
  • 200 kHz with a 6° beamwidth for depth performance to 294 m (1,000')
  • Available with a diplexer for single-transmission-line fishfinders and without a diplexer for dual transmission-line fishfinders
  • Urethane transom transducer for installation on outboard and I/O powered boats
  • Stainless steel kick-up bracket locks in the “up” position and will not damage the transom

Specifications

  • Weight: 4 kg (8.9 lb.)
  • Recommended Boat Length: 10 m (32') and up
  • Hull Deadrise: Up to 28°
  • Transom Angle: 3° to 21°
  • Acoustic Window: Urethane
  • Speed Performance: Up to 35 MPH

Transducer Specifications

Frequency 50/200 kHz
Power Rating 1kW
Speed Sensor No
Temperature Sensor Yes
Mounting Style Transom Mount
Elements 8
Beamwidth @ -3dB 19 (50 kHz) 6 (200 kHz)
