WALLAS SINGLE STOVE STAINLESS
Overview

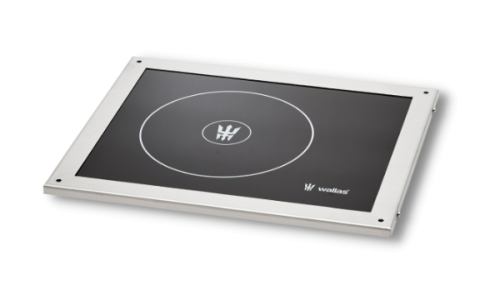

Wallas 800DSL ceramic diesel stove.
The new Wallas 800DSL stove is the best choice for small boaters with limited space – suitable for even the most demanding boater/chef! The 800DSL features the Wallas Design ceramic surface, making it easy to clean and comfortable to use. The new Wallas GB burner works well with all current road diesels and is designed to work with future diesels that may include more renewable components. The new burner generates ultra-low emissions (NOx and HC), very important for environmentally minded customers who appreciate protecting their future boating environment.
900 – 1400 W
3,000 – 4,700 BTU
Marine Diesel Cooktop for Small Spaces
Wallas 800 DSL, a one-plate cooktop, is easy to install even in small spaces and as the fuel can be fed from the fuel tank of the boat, it releases even more valuable space for other purposes. Simply wipe the ceramic surface clean and the modern seamless design blends in with the rest of the cabin. 800 DSL diesel stove can also be transformed into an air heater by installing a blower lid (additional accessory), which blows warm air and does what is most important for small boats: Saves space!
GREENBOOST
Cleaner Burning
Updated software optimizes fuel and electricity consumption
Calibrated to burn renewable fossil free diesel (e.g. HVO)
Larger burner burns fuel slower resulting in ultra low CO2 and NOX emissions
Extensively tested with Neste
Improved burner efficiency for more power
The Greenboost burner burns renewable fossil-free diesel cleanly and energy-efficiently, in addition to fossil-based diesel.
Combustion air is taken from inside the boat and exhaust gas is safely vented outside keeping the indoor air clean and odorless.
The exhaust gas also carries the moisture in the indoor air out keeping the air dry.
Fully enclosed laminar burning process ensures a quiet sound level and dries the indoor air.
Perfect for environmentally minded boaters and campers.
Variable output eliminates system cycling and reduces noise.
Brushless blower motors have a very long life-cycle, supporting reliably long service intervals.
Feeding fuel directly from the main tank of the vessel saves space and eliminates the need for a separate tank.
Durable Finnish design and manufacturing keep your Wallas running through tough weather conditions.
Excellent for small spaces.
Stylish ceramic stove is easy to install and keep clean.
Laminar combustion is a safe burning process with no exposed flame.
Unlike propane stoves, diesel stoves do not require gas inspections.
High Altitude Mode adjusts the combustion when traveling in high altitudes.
Kettle holder (accessory 1012) keeps pots safely in place if used in rougher weather.
HEATING
POWER
FUEL
CONSUMPTION
ELECTRICITY
CONSUMPTION
TECHNICAL SPECIFICATIONS
Fuel: Diesel, HVO renewable diesel
Power: 900-1400 W (3,000-4,700 BTU)
Operating Voltage: 12 V
Fuel Consumption: 0,09-0,14 l/h (3.16-4.9 oz/h)
Electricity Consumption: 0,7 A
Length: 331 mm(13 1/16″)
Width: 271 mm (10 11/16″)
Height: 180 mm (7 3/32″)
Weight: 7 kg (15.4 lbs)
Mounting: Flush mount
Colors: Stainless steel, black
Choose a stove and heater blower lid accessory from two colors: Stainless steel or black
RECOMMENDED BUILDS
Boats, Camper vans (retrofitted), trailers, cottages, tiny houses

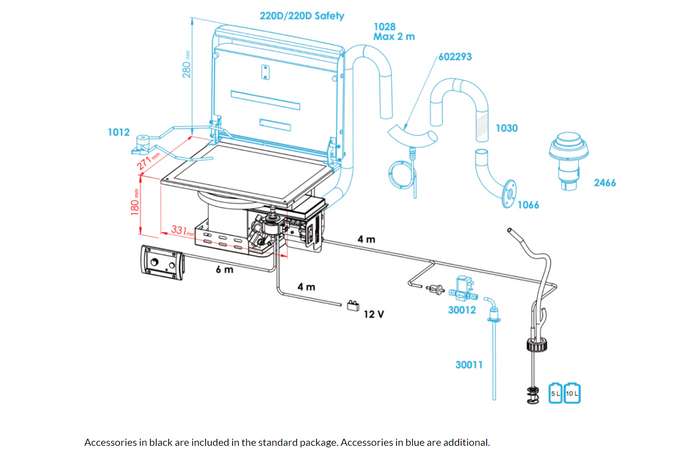

STANDARD PACKAGE CONTENT
Stove
PI Thermo Control Panel, wire 6 m (19.7 ft)
Fuel line 4 m (13 ft)
Tank feed through
Power cable with connector and integrated fuse 15 A, 4 m (13 ft)
Accessory bag including essential clamps and screws
* Blower lid is an additional accessory (220)
MATERIALS
Stainless Steel, High-Grade Aluminum, Other Corrosion-Resistant Materials
Technical values are measured in a reference measurement wall, which is constructed to represent a typical boat installation. Values have been measured with maximum length of ducting, exhaust pipe, fuel line, and power cord. The figures allow for 10 % reserve – yours may vary.
Wallas diesel stoves and heaters are designed to run with standard road and boat diesel, as well as renewable fossil free diesel. Check with your distributor for further details on best options for your needs.
